🔥 C#开发神器！打造专业级网站压力测试工具，性能瓶颈一眼看穿
编辑
2025-12-16
C#
00

目录

🎯 为什么要自己造轮子？
痛点分析
🚀 核心技术架构解析
技术栈选择
🚩 架构流程
🔧 关键实现要点
1. 异步并发请求核心算法
2. ScottPlot 5.0+ 图表更新机制
3. 高性能HTTP请求处理
💡 实战应用场景
1. 接口性能基准测试
2. 系统稳定性测试
3. 负载均衡效果验证
📊 完整项目配置
NuGet包依赖
UI设计要点
🧑‍💻 完整代码
⚡ 性能优化秘籍
1. 图表更新频率控制
2. 内存占用优化
3. 线程安全保障
🎯 核心要点总结

在现代Web开发中，你是否遇到过这样的困扰：网站上线后突然崩溃，用户投诉不断，但却不知道系统的真实承载能力？ 作为开发者，我们经常听到产品经理问："这个接口能同时处理多少用户请求？"，而你却只能凭经验给出一个模糊的答案。

今天，我将分享如何用C#从零打造一个专业级网站压力测试工具，不仅能够精确模拟高并发场景，还能通过可视化图表直观展现系统性能数据。无需付费工具，无需复杂配置，只要掌握核心技术，你就能拥有媲美商业级的性能测试利器！

🎯 为什么要自己造轮子？

痛点分析

市面上的压力测试工具要么功能单一，要么价格昂贵。作为C#开发者，我们需要的是：

  • 高度可定制化的测试参数
  • 实时可视化的性能数据
  • 轻量级且易于扩展的架构
  • 完全免费的解决方案

🚀 核心技术架构解析

技术栈选择

  • WinForms + ScottPlot 5.0+：专业图表
  • HttpClient + 异步编程：高性能HTTP请求处理
  • SemaphoreSlim：智能并发控制
  • TableLayoutPanel：响应式布局

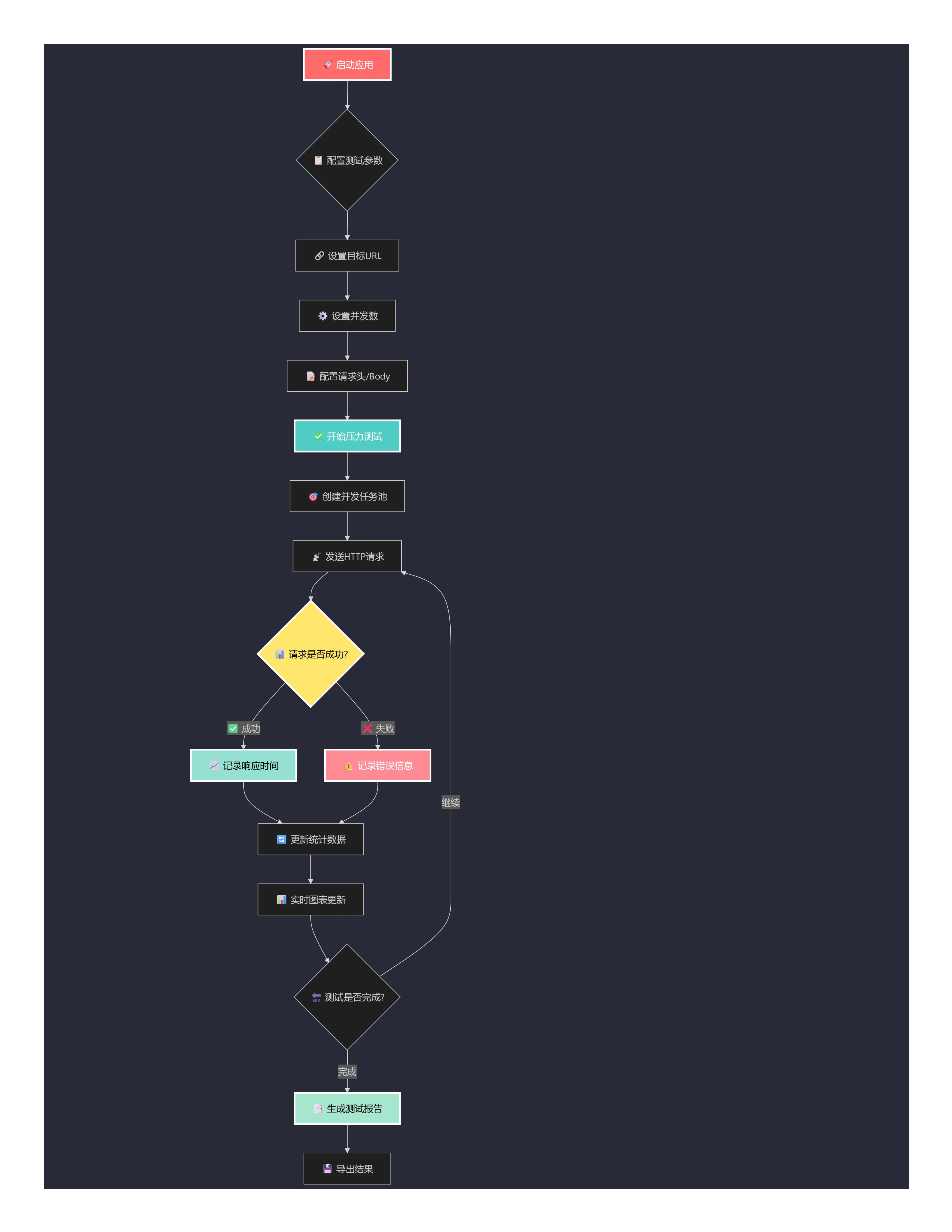

🚩 架构流程


🔧 关键实现要点

1. 异步并发请求核心算法

C#
private async Task ProcessRequestAsync(SemaphoreSlim semaphore, int requestId)
{
    await semaphore.WaitAsync(cancellationTokenSource.Token);

    try
    {
        var testResult = await SendHttpRequestAsync(requestId);

        lock (lockObject)
        {
            testResults.Add(testResult);
            completedRequests++;

            if (testResult.IsSuccess)
            {
                successRequests++;
                totalResponseTime += testResult.ResponseTime;
            }
            else
            {
                failedRequests++;
            }
        }

        // 在UI线程中更新图表
        if (InvokeRequired)
        {
            Invoke(new Action(() => UpdateChart(testResult)));
        }
        else
        {
            UpdateChart(testResult);
        }
    }
    finally
    {
        semaphore.Release();
    }
}

核心亮点：

  • 使用SemaphoreSlim精确控制并发数量
  • lock机制确保线程安全的数据更新
  • Invoke保证UI更新在主线程执行

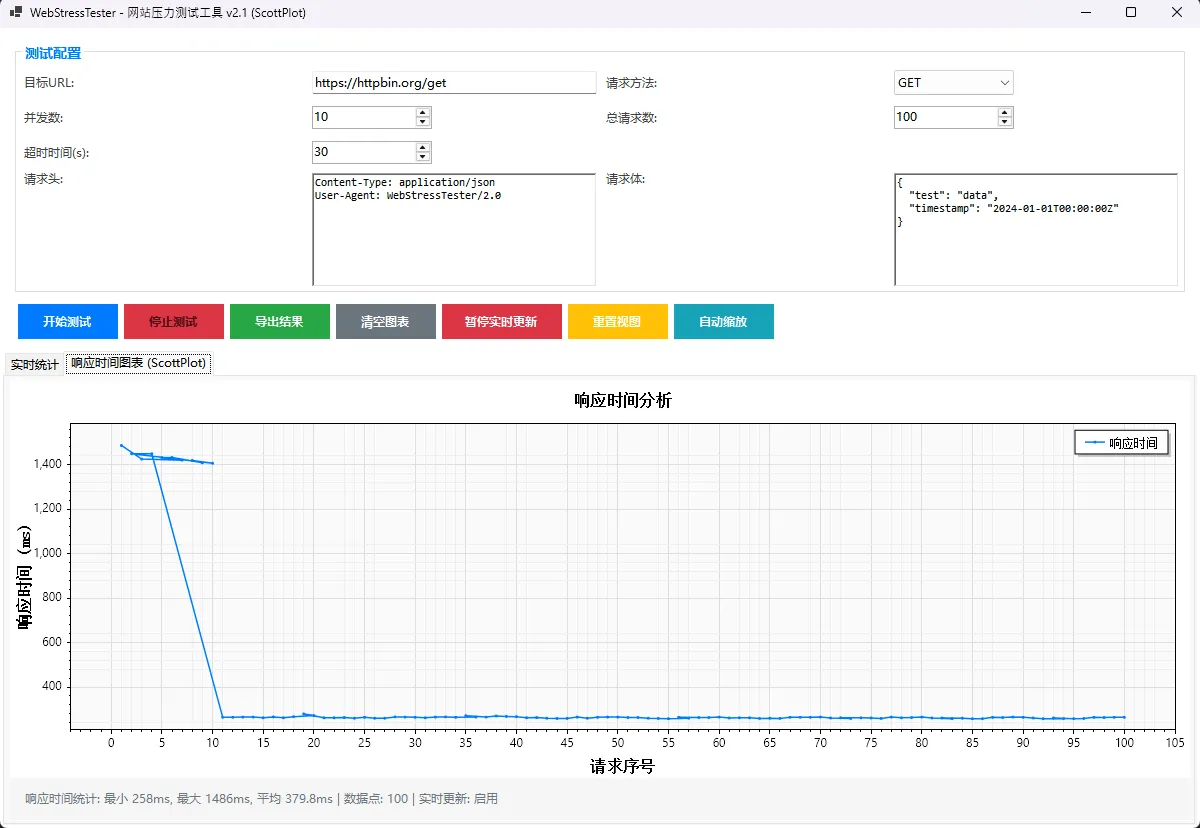

2. ScottPlot 5.0+ 图表更新机制

⚠️ 重要坑点：ScottPlot 5.0版本API发生重大变化，网上90%的教程都已过时！

C#
private void UpdateScottPlotData()
{
    formsPlotResponseTime.Plot.Remove(responsePlot);

    double[] xData = requestIndexData.ToArray();
    double[] yData = responseTimeData.ToArray();

    responsePlot = formsPlotResponseTime.Plot.Add.Scatter(xData, yData);
    responsePlot.Color = ScottColor.FromHex("#007AFF");
    responsePlot.MarkerSize = 3;
    responsePlot.LineWidth = 1.5f;
    responsePlot.ConnectStyle = ConnectStyle.Straight;
    responsePlot.LegendText = "响应时间";

    if (requestIndexData.Count > 0 && responseTimeData.Count > 0)
    {
        var xMin = requestIndexData.Min();
        var xMax = requestIndexData.Max();
        var yMin = Math.Max(0, responseTimeData.Min() - 50);
        var yMax = responseTimeData.Max() + 100;

        formsPlotResponseTime.Plot.Axes.SetLimitsX(xMin - 5, xMax + 5);
        formsPlotResponseTime.Plot.Axes.SetLimitsY(yMin, yMax);
    }

    formsPlotResponseTime.Refresh();
}

关键技巧：

  • 使用Plot.Remove()而非已废弃的Clear()方法
  • 避免频繁更新图表，采用批量更新策略提升性能
  • 别名处理颜色类型冲突：using ScottColor = ScottPlot.Color;

3. 高性能HTTP请求处理

C#
private async Task<TestResult> SendHttpRequestAsync(int requestId)
{
    var result = new TestResult
    {
        RequestId = requestId,
        StartTime = DateTime.Now
    };

    var stopwatch = Stopwatch.StartNew();

    try
    {
        using var request = new HttpRequestMessage();
        request.Method = new HttpMethod(cmbMethod.Text);
        request.RequestUri = new Uri(txtUrl.Text);

        if (!string.IsNullOrWhiteSpace(rtbHeaders.Text))
        {
            var headers = rtbHeaders.Text.Split('\n');
            foreach (var header in headers)
            {
                if (string.IsNullOrWhiteSpace(header)) continue;

                var parts = header.Split(':', 2);
                if (parts.Length == 2)
                {
                    request.Headers.TryAddWithoutValidation(parts[0].Trim(), parts[1].Trim());
                }
            }
        }

        if ((cmbMethod.Text == "POST" || cmbMethod.Text == "PUT") &&
            !string.IsNullOrWhiteSpace(rtbRequestBody.Text))
        {
            request.Content = new StringContent(rtbRequestBody.Text, Encoding.UTF8, "application/json"
        }

        using var cts = new CancellationTokenSource(TimeSpan.FromSeconds((double)nudTimeout.Value));
        using var linkedCts = CancellationTokenSource.CreateLinkedTokenSource(
            cancellationTokenSource.Token, cts.Token);

        using var response = await httpClient.SendAsync(request, linkedCts.Token);

        stopwatch.Stop();

        result.ResponseTime = stopwatch.ElapsedMilliseconds;
        result.StatusCode = (int)response.StatusCode;
        result.IsSuccess = response.IsSuccessStatusCode;
        result.ResponseSize = response.Content.Headers.ContentLength ?? 0;
        result.EndTime = DateTime.Now;
    }
    catch (Exception ex)
    {
        stopwatch.Stop();
        result.ResponseTime = stopwatch.ElapsedMilliseconds;
        result.IsSuccess = false;
        result.ErrorMessage = ex.Message;
        result.EndTime = DateTime.Now;
    }

    return result;
}

💡 实战应用场景

1. 接口性能基准测试

场景：新接口上线前的性能评估

  • 设置并发数50，总请求1000
  • 观察平均响应时间和成功率曲线
  • 找出性能拐点，确定最佳并发配置

2. 系统稳定性测试

场景：长时间高并发场景验证

  • 启用实时图表监控
  • 设置较长的测试周期
  • 观察内存泄漏和性能衰减情况

3. 负载均衡效果验证

场景：验证负载均衡器配置效果

  • 配置多个目标URL轮询测试
  • 对比不同服务器的响应时间分布
  • 优化负载分发策略

📊 完整项目配置

NuGet包依赖

XML
<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>WinExe</OutputType>
    <TargetFramework>net8.0-windows</TargetFramework>
    <UseWindowsForms>true</UseWindowsForms>
  </PropertyGroup>

  <ItemGroup>
    <PackageReference Include="ScottPlot.WinForms" Version="5.0.21" />
  </ItemGroup>
</Project>

UI设计要点

C#
// 统计信息卡片式设计
this.lblTotalRequests.BackColor = Color.FromArgb(248, 249, 250);
this.lblSuccessRequests.BackColor = Color.FromArgb(212, 237, 218);
this.lblFailedRequests.BackColor = Color.FromArgb(248, 215, 218);

// 扁平化按钮设计
this.btnStart.FlatStyle = FlatStyle.Flat;
this.btnStart.FlatAppearance.BorderSize = 0;
this.btnStart.BackColor = Color.FromArgb(0, 122, 255);

🧑‍💻 完整代码

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Diagnostics;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Net.Http;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
using ScottPlot;
using ScottPlot.WinForms;
using DrawingColor = System.Drawing.Color;
using ScottColor = ScottPlot.Color;
using Timer = System.Windows.Forms.Timer;

namespace AppWebStressTester
{
    public partial class FrmMain : Form
    {
        private HttpClient httpClient;
        private CancellationTokenSource cancellationTokenSource;
        private List<TestResult> testResults;
        private Stopwatch testStopwatch;
        private Timer updateTimer;
        private int totalRequests;
        private int completedRequests;
        private int successRequests;
        private int failedRequests;
        private double totalResponseTime;
        private readonly object lockObject = new object();

        private ScottPlot.Plottables.Scatter responsePlot;
        private List<double> responseTimeData;
        private List<double> requestIndexData;
        private bool isRealtimeEnabled = true;
        private int chartUpdateCounter = 0;

        public FrmMain()
        {
            InitializeComponent();
            InitializeApplication();
        }

        private void InitializeApplication()
        {
            httpClient = new HttpClient();
            httpClient.Timeout = TimeSpan.FromSeconds(30);
            testResults = new List<TestResult>();
            testStopwatch = new Stopwatch();
            responseTimeData = new List<double>();
            requestIndexData = new List<double>();

            updateTimer = new Timer();
            updateTimer.Interval = 500;
            updateTimer.Tick += UpdateTimer_Tick;

            InitializeScottPlot();

            txtUrl.Text = "https://httpbin.org/get";
            cmbMethod.SelectedIndex = 0;
            nudConcurrency.Value = 10;
            nudTotalRequests.Value = 100;
            nudTimeout.Value = 30;

            btnStop.Enabled = false;
        }

        private void InitializeScottPlot()
        {
            formsPlotResponseTime.Plot.Clear();

            formsPlotResponseTime.Plot.FigureBackground.Color = ScottColor.FromHex("#FFFFFF");
            formsPlotResponseTime.Plot.DataBackground.Color = ScottColor.FromHex("#FAFAFA");

            formsPlotResponseTime.Plot.Axes.Bottom.Label.FontName = "SimSun";
            formsPlotResponseTime.Plot.Axes.Left.Label.FontName = "SimSun";
            formsPlotResponseTime.Plot.Axes.Top.Label.FontName = "SimSun";
            formsPlotResponseTime.Plot.Axes.Title.Label.FontName = "SimSun";
            formsPlotResponseTime.Plot.Title("响应时间分析");
            formsPlotResponseTime.Plot.XLabel("请求序号");
            formsPlotResponseTime.Plot.YLabel("响应时间 (ms)");

            formsPlotResponseTime.Plot.Grid.MajorLineColor = ScottColor.FromHex("#E0E0E0");
            formsPlotResponseTime.Plot.Grid.MinorLineColor = ScottColor.FromHex("#F0F0F0");
            formsPlotResponseTime.Plot.Grid.MajorLineWidth = 1;
            formsPlotResponseTime.Plot.Grid.MinorLineWidth = 0.5f;

            double[] emptyX = new double[0];
            double[] emptyY = new double[0];
            responsePlot = formsPlotResponseTime.Plot.Add.Scatter(emptyX, emptyY);
            responsePlot.Color = ScottColor.FromHex("#007AFF");
            responsePlot.MarkerSize = 3;
            responsePlot.LineWidth = 1.5f;
            responsePlot.ConnectStyle = ConnectStyle.Straight;
            formsPlotResponseTime.Plot.Legend.FontName = "SimSun";
            responsePlot.LegendText = "响应时间";

            formsPlotResponseTime.Plot.Legend.IsVisible = true;
            formsPlotResponseTime.Plot.Legend.Alignment = Alignment.UpperRight;

            formsPlotResponseTime.Plot.Axes.SetLimitsX(0, 100);
            formsPlotResponseTime.Plot.Axes.SetLimitsY(0, 1000);

            formsPlotResponseTime.Refresh();
        }

        private async void btnStart_Click(object sender, EventArgs e)
        {
            if (string.IsNullOrWhiteSpace(txtUrl.Text))
            {
                MessageBox.Show("请输入有效的URL", "错误", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return;
            }

            try
            {
                var uri = new Uri(txtUrl.Text);
            }
            catch
            {
                MessageBox.Show("URL格式不正确", "错误", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return;
            }

            ResetStatistics();

            btnStart.Enabled = false;
            btnStop.Enabled = true;
            grpSettings.Enabled = false;

            cancellationTokenSource = new CancellationTokenSource();

            testStopwatch.Start();
            updateTimer.Start();

            await RunLoadTest();
        }

        private void btnStop_Click(object sender, EventArgs e)
        {
            StopTest();
        }

        private void StopTest()
        {
            if (cancellationTokenSource != null)
            {
                cancellationTokenSource.Cancel();
            }

            testStopwatch.Stop();
            updateTimer.Stop();

            btnStart.Enabled = true;
            btnStop.Enabled = false;
            grpSettings.Enabled = true;

            UpdateStatistics();
            MessageBox.Show($"测试完成！\n总请求数: {completedRequests}\n成功: {successRequests}\n失败: {failedRequests}",
                "测试结果", MessageBoxButtons.OK, MessageBoxIcon.Information);
        }

        private async Task RunLoadTest()
        {
            var concurrency = (int)nudConcurrency.Value;
            var totalRequestsCount = (int)nudTotalRequests.Value;
            totalRequests = totalRequestsCount;

            var semaphore = new SemaphoreSlim(concurrency, concurrency);
            var tasks = new List<Task>();

            for (int i = 0; i < totalRequestsCount; i++)
            {
                if (cancellationTokenSource.Token.IsCancellationRequested)
                    break;

                var requestId = i;
                tasks.Add(ProcessRequestAsync(semaphore, requestId));
            }

            try
            {
                await Task.WhenAll(tasks);
            }
            catch (OperationCanceledException)
            {
            }
            finally
            {
                StopTest();
            }
        }

        private async Task ProcessRequestAsync(SemaphoreSlim semaphore, int requestId)
        {
            await semaphore.WaitAsync(cancellationTokenSource.Token);

            try
            {
                var testResult = await SendHttpRequestAsync(requestId);

                lock (lockObject)
                {
                    testResults.Add(testResult);
                    completedRequests++;

                    if (testResult.IsSuccess)
                    {
                        successRequests++;
                        totalResponseTime += testResult.ResponseTime;
                    }
                    else
                    {
                        failedRequests++;
                    }
                }

                if (InvokeRequired)
                {
                    Invoke(new Action(() => UpdateChart(testResult)));
                }
                else
                {
                    UpdateChart(testResult);
                }
            }
            finally
            {
                semaphore.Release();
            }
        }

        private async Task<TestResult> SendHttpRequestAsync(int requestId)
        {
            var result = new TestResult
            {
                RequestId = requestId,
                StartTime = DateTime.Now
            };

            var stopwatch = Stopwatch.StartNew();

            try
            {
                using var request = new HttpRequestMessage();
                request.Method = new HttpMethod(cmbMethod.Text);
                request.RequestUri = new Uri(txtUrl.Text);

                if (!string.IsNullOrWhiteSpace(rtbHeaders.Text))
                {
                    var headers = rtbHeaders.Text.Split('\n');
                    foreach (var header in headers)
                    {
                        if (string.IsNullOrWhiteSpace(header)) continue;

                        var parts = header.Split(':', 2);
                        if (parts.Length == 2)
                        {
                            request.Headers.TryAddWithoutValidation(parts[0].Trim(), parts[1].Trim());
                        }
                    }
                }

                if ((cmbMethod.Text == "POST" || cmbMethod.Text == "PUT") &&
                    !string.IsNullOrWhiteSpace(rtbRequestBody.Text))
                {
                    request.Content = new StringContent(rtbRequestBody.Text, Encoding.UTF8, "application/json");
                }

                using var cts = new CancellationTokenSource(TimeSpan.FromSeconds((double)nudTimeout.Value));
                using var linkedCts = CancellationTokenSource.CreateLinkedTokenSource(
                    cancellationTokenSource.Token, cts.Token);

                using var response = await httpClient.SendAsync(request, linkedCts.Token);

                stopwatch.Stop();

                result.ResponseTime = stopwatch.ElapsedMilliseconds;
                result.StatusCode = (int)response.StatusCode;
                result.IsSuccess = response.IsSuccessStatusCode;
                result.ResponseSize = response.Content.Headers.ContentLength ?? 0;
                result.EndTime = DateTime.Now;
            }
            catch (Exception ex)
            {
                stopwatch.Stop();
                result.ResponseTime = stopwatch.ElapsedMilliseconds;
                result.IsSuccess = false;
                result.ErrorMessage = ex.Message;
                result.EndTime = DateTime.Now;
            }

            return result;
        }

        private void UpdateChart(TestResult result)
        {
            if (!isRealtimeEnabled) return;

            requestIndexData.Add(result.RequestId + 1);
            responseTimeData.Add(result.ResponseTime);

            if (requestIndexData.Count > 2000)
            {
                requestIndexData.RemoveAt(0);
                responseTimeData.RemoveAt(0);
            }

            chartUpdateCounter++;
            if (chartUpdateCounter % 10 == 0 || requestIndexData.Count < 50)
            {
                UpdateScottPlotData();
            }
        }

        private void UpdateScottPlotData()
        {
            formsPlotResponseTime.Plot.Remove(responsePlot);

            double[] xData = requestIndexData.ToArray();
            double[] yData = responseTimeData.ToArray();

            responsePlot = formsPlotResponseTime.Plot.Add.Scatter(xData, yData);
            responsePlot.Color = ScottColor.FromHex("#007AFF");
            responsePlot.MarkerSize = 3;
            responsePlot.LineWidth = 1.5f;
            responsePlot.ConnectStyle = ConnectStyle.Straight;
            responsePlot.LegendText = "响应时间";

            if (requestIndexData.Count > 0 && responseTimeData.Count > 0)
            {
                var xMin = requestIndexData.Min();
                var xMax = requestIndexData.Max();
                var yMin = Math.Max(0, responseTimeData.Min() - 50);
                var yMax = responseTimeData.Max() + 100;

                formsPlotResponseTime.Plot.Axes.SetLimitsX(xMin - 5, xMax + 5);
                formsPlotResponseTime.Plot.Axes.SetLimitsY(yMin, yMax);
            }

            formsPlotResponseTime.Refresh();
        }

        private void UpdateTimer_Tick(object sender, EventArgs e)
        {
            UpdateStatistics();

            if (isRealtimeEnabled && chartUpdateCounter % 10 != 0 && requestIndexData.Count > 0)
            {
                UpdateScottPlotData();
            }
        }

        private void UpdateStatistics()
        {
            if (InvokeRequired)
            {
                Invoke(new Action(UpdateStatistics));
                return;
            }

            lock (lockObject)
            {
                lblTotalRequests.Text = $"总请求数: {completedRequests}";
                lblSuccessRequests.Text = $"成功请求: {successRequests}";
                lblFailedRequests.Text = $"失败请求: {failedRequests}";

                if (successRequests > 0)
                {
                    lblAvgResponseTime.Text = $"平均响应时间: {(totalResponseTime / successRequests):F2} ms";
                    lblSuccessRate.Text = $"成功率: {((double)successRequests / completedRequests * 100):F2}%";
                }
                else
                {
                    lblAvgResponseTime.Text = "平均响应时间: 0 ms";
                    lblSuccessRate.Text = "成功率: 0%";
                }

                if (testStopwatch.IsRunning && completedRequests > 0)
                {
                    var rps = completedRequests / testStopwatch.Elapsed.TotalSeconds;
                    lblRequestsPerSecond.Text = $"QPS: {rps:F2} req/s";
                }

                if (totalRequests > 0)
                {
                    var progress = (int)((double)completedRequests / totalRequests * 100);
                    pgbProgress.Value = Math.Min(progress, 100);
                }

                if (responseTimeData.Count > 0)
                {
                    var minResponse = responseTimeData.Min();
                    var maxResponse = responseTimeData.Max();
                    var avgResponse = responseTimeData.Average();
                    lblChartInfo.Text = $"响应时间统计: 最小 {minResponse:F0}ms, 最大 {maxResponse:F0}ms, 平均 {avgResponse:F1}ms | " +
                                       $"数据点: {responseTimeData.Count} | 实时更新: {(isRealtimeEnabled ? "启用" : "暂停")}";
                }
                else
                {
                    lblChartInfo.Text = "提示: 鼠标左键拖拽平移，右键拖拽缩放，滚轮快速缩放，双击重置视图";
                }
            }
        }

        private void ResetStatistics()
        {
            lock (lockObject)
            {
                testResults.Clear();
                requestIndexData.Clear();
                responseTimeData.Clear();
                totalRequests = 0;
                completedRequests = 0;
                successRequests = 0;
                failedRequests = 0;
                totalResponseTime = 0;
                chartUpdateCounter = 0;
            }

            formsPlotResponseTime.Plot.Clear();
            InitializeScottPlot();

            pgbProgress.Value = 0;

            UpdateStatistics();
        }

        private void btnExportResults_Click(object sender, EventArgs e)
        {
            if (testResults.Count == 0)
            {
                MessageBox.Show("没有可导出的测试结果", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
                return;
            }

            using var saveDialog = new SaveFileDialog();
            saveDialog.Filter = "CSV文件|*.csv|PNG图片|*.png|SVG矢量图|*.svg|文本文件|*.txt";
            saveDialog.Title = "导出测试结果";
            saveDialog.FileName = $"load_test_result_{DateTime.Now:yyyyMMdd_HHmmss}";

            if (saveDialog.ShowDialog() == DialogResult.OK)
            {
                try
                {
                    switch (saveDialog.FilterIndex)
                    {
                        case 2:
                            ExportChartPNG(saveDialog.FileName);
                            break;
                        case 3:
                            ExportChartSVG(saveDialog.FileName);
                            break;
                        default:
                            ExportResults(saveDialog.FileName);
                            break;
                    }
                    MessageBox.Show("导出成功！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
                }
                catch (Exception ex)
                {
                    MessageBox.Show($"导出失败: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
                }
            }
        }

        private void ExportResults(string fileName)
        {
            var csv = new StringBuilder();
            csv.AppendLine("请求ID,开始时间,结束时间,响应时间(ms),状态码,是否成功,响应大小,错误信息");

            lock (lockObject)
            {
                foreach (var result in testResults)
                {
                    csv.AppendLine($"{result.RequestId},{result.StartTime:yyyy-MM-dd HH:mm:ss.fff}," +
                                 $"{result.EndTime:yyyy-MM-dd HH:mm:ss.fff},{result.ResponseTime}," +
                                 $"{result.StatusCode},{result.IsSuccess},{result.ResponseSize}," +
                                 $"\"{result.ErrorMessage}\"");
                }
            }

            File.WriteAllText(fileName, csv.ToString(), Encoding.UTF8);
        }

        private void ExportChartPNG(string fileName)
        {
            UpdateScottPlotData();
            formsPlotResponseTime.Plot.Save(fileName, 1920, 1080);
        }

        private void ExportChartSVG(string fileName)
        {
            UpdateScottPlotData();
            formsPlotResponseTime.Plot.Save(fileName, 1920, 1080);
        }

        private void btnClearChart_Click(object sender, EventArgs e)
        {
            lock (lockObject)
            {
                requestIndexData.Clear();
                responseTimeData.Clear();
                chartUpdateCounter = 0;
            }

            formsPlotResponseTime.Plot.Clear();
            InitializeScottPlot();
        }

        private void btnRealtimeChart_Click(object sender, EventArgs e)
        {
            isRealtimeEnabled = !isRealtimeEnabled;

            btnRealtimeChart.Text = isRealtimeEnabled ? "暂停实时更新" : "启用实时更新";
            btnRealtimeChart.BackColor = isRealtimeEnabled ?
                DrawingColor.FromArgb(220, 53, 69) : DrawingColor.FromArgb(40, 167, 69);

            if (isRealtimeEnabled && requestIndexData.Count > 0)
            {
                UpdateScottPlotData();
            }
        }

        private void btnResetView_Click(object sender, EventArgs e)
        {
            if (requestIndexData.Count > 0 && responseTimeData.Count > 0)
            {
                var xMin = requestIndexData.Min();
                var xMax = requestIndexData.Max();
                var yMin = Math.Max(0, responseTimeData.Min() - 50);
                var yMax = responseTimeData.Max() + 100;

                formsPlotResponseTime.Plot.Axes.SetLimitsX(xMin - 5, xMax + 5);
                formsPlotResponseTime.Plot.Axes.SetLimitsY(yMin, yMax);
            }
            else
            {
                formsPlotResponseTime.Plot.Axes.SetLimitsX(0, 100);
                formsPlotResponseTime.Plot.Axes.SetLimitsY(0, 1000);
            }

            formsPlotResponseTime.Refresh();
        }

        private void btnAutoScale_Click(object sender, EventArgs e)
        {
            formsPlotResponseTime.Plot.Axes.AutoScale();
            formsPlotResponseTime.Refresh();
        }

        protected override void OnFormClosing(FormClosingEventArgs e)
        {
            if (cancellationTokenSource != null)
            {
                cancellationTokenSource.Cancel();
            }

            httpClient?.Dispose();
            updateTimer?.Dispose();

            base.OnFormClosing(e);
        }
    }

    public class TestResult
    {
        public int RequestId { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public long ResponseTime { get; set; }
        public int StatusCode { get; set; }
        public bool IsSuccess { get; set; }
        public long ResponseSize { get; set; }
        public string ErrorMessage { get; set; } = string.Empty;
    }
}



⚡ 性能优化秘籍

1. 图表更新频率控制

C#
// 每10个数据点更新一次图表，避免界面卡顿
chartUpdateCounter++;
if (chartUpdateCounter % 10 == 0 || requestIndexData.Count < 50)
{
    UpdateScottPlotData();
}

2. 内存占用优化

C#
// 限制显示数据点数量，避免内存溢出
if (requestIndexData.Count > 2000)
{
    requestIndexData.RemoveAt(0);
    responseTimeData.RemoveAt(0);
}

3. 线程安全保障

C#
private readonly object lockObject = new object();

lock (lockObject)
{
    testResults.Add(testResult);
    completedRequests++;
    // 关键数据更新操作
}

🎯 核心要点总结

1. 技术选型要前瞻性：ScottPlot 5.0+的API变化提醒我们，选择技术栈时要考虑版本兼容性，并及时跟进最新文档。

2. 异步编程是王道：通过SemaphoreSlim和HttpClient的完美结合，实现了高效的并发控制，这是现代C#开发的标准模式。

3. 用户体验至关重要：实时图表更新、响应式布局、现代化UI设计，技术实力最终要通过用户体验来体现价值。

**你在项目中是如何进行性能测试的？**遇到过哪些有趣的性能瓶颈问题？欢迎在评论区分享你的实战经验，让我们一起探讨更多性能优化的黑科技！

觉得这个压力测试工具有用的话，请转发给更多需要的同行！ 下期我们将深入探讨C#中的内存优化技巧，敬请期待！

关注我，获取更多C#开发实战干货！

相关信息

通过网盘分享的文件：AppWebStressTester.zip 链接: https://pan.baidu.com/s/14gILepUxBrudG3zk9bsanQ?pwd=mpnr 提取码: mpnr --来自百度网盘超级会员v9的分享

本文作者:技术老小子

本文链接:

版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
