在Windows窗体应用程序开发中，自定义控件的设计是展示UI设计能力和提升用户体验的重要方式。本文将详细介绍如何使用SkiaSharp图形库创建一个功能完善、视觉效果精美的时钟控件。我们将从基础实现开始，循序渐进地增加美化元素，最终打造出一个既实用又美观的自定义控件，SkiaSharp比系统自带的drawing要好一少。

SkiaSharp简介

SkiaSharp是Google Skia图形引擎的.NET绑定，提供了强大的2D绘图功能。它具有以下优势：

跨平台支持，可在Windows、macOS和Linux上运行
高性能渲染，适合实时绘制和动画
丰富的绘图API，包括路径、变换、渐变等
与.NET无缝集成

在Windows Forms应用程序中，可以通过SKControl控件轻松集成SkiaSharp的绘图能力。

基础时钟控件实现

控件结构设计

我们的时钟控件将继承自SKControl，主要包含以下核心组件：

表盘和刻度
时针、分针和秒针
中心点装饰
计时器用于更新时间显示

初始化与计时器设置

C#
public ClockControl()
{
    // 设置控件基本属性
    BackColor = Color.White;
    Size = new Size(300, 300);

    // 初始化计时器，每秒更新一次
    _timer = new System.Timers.Timer(1000);
    _timer.Elapsed += OnTimerElapsed;
    _timer.AutoReset = true;
    _timer.Enabled = true;
}

private void OnTimerElapsed(object sender, ElapsedEventArgs e)
{
    // 在UI线程上刷新控件
    if (InvokeRequired)
    {
        BeginInvoke(new Action(() => Invalidate()));
    }
    else
    {
        Invalidate();
    }
}

这段代码创建了一个300x300像素的时钟控件，并设置一个每秒触发一次的计时器，用于更新控件显示。通过Invalidate()方法触发重绘，确保时钟指针根据当前时间实时更新。

绘制表盘和刻度

表盘是时钟的基础部分，包括外圈、刻度线和数字标记：

C#
private void DrawClockFace(SKCanvas canvas, float centerX, float centerY, float radius)
{
    // 绘制外圆
    using var paint = new SKPaint
    {
        Style = SKPaintStyle.Stroke,
        Color = SKColors.Black,
        StrokeWidth = 2,
        IsAntialias = true
    };

    canvas.DrawCircle(centerX, centerY, radius, paint);

    // 绘制刻度线和数字
    for (int i = 0; i < 60; i++)
    {
        float angle = i * 6; // 每分钟6度
        bool isHourMark = i % 5 == 0;

        // 根据是否小时刻度设置不同长度和粗细
        float innerRadius = isHourMark ? radius - 15 : radius - 5;
        float strokeWidth = isHourMark ? 3 : 1;

        // 绘制刻度线...

        // 绘制小时数字...
    }
}

这段代码使用SkiaSharp的绘图API绘制表盘和刻度。我们使用三角函数计算每个刻度的位置，并区分小时刻度（更粗、更长）和分钟刻度。

绘制时钟指针

时钟指针是整个控件的核心，我们将使用旋转变换来实现指针随时间转动的效果：

C#
private void DrawClockHand(SKCanvas canvas, float angle, float length, SKColor color)
{
    // 保存画布状态
    canvas.Save();

    // 设置画笔
    using var paint = new SKPaint
    {
        Color = color,
        StrokeWidth = 4,
        IsAntialias = true,
        StrokeCap = SKStrokeCap.Round
    };

    // 移动到时钟中心
    float centerX = Width / 2;
    float centerY = Height / 2;

    // 应用旋转
    canvas.Translate(centerX, centerY);
    canvas.RotateDegrees(angle);

    // 绘制指针
    canvas.DrawLine(0, 0, 0, -length, paint);

    // 恢复画布状态
    canvas.Restore();
}

这个方法展示了SkiaSharp中画布变换的强大功能：

首先保存当前画布状态
将坐标系移动到时钟中心点
根据指定角度旋转画布
绘制从中心向上的直线（指针）
恢复画布状态

这种方式使我们可以轻松地按照不同角度绘制指针，而不必手动计算复杂的三角函数。

高级样式与视觉效果

基础功能实现后，我们可以添加更多视觉效果来美化时钟控件。

阴影效果

C#
// 绘制表盘阴影
if (ShowShadows)
{
    using var shadowPaint = new SKPaint
    {
        Color = SKColors.Black.WithAlpha(40),
        IsAntialias = true,
        MaskFilter = SKMaskFilter.CreateBlur(SKBlurStyle.Normal, 10)
    };

    canvas.DrawCircle(centerX + 5, centerY + 5, radius, shadowPaint);
}

添加阴影可以显著提升控件的视觉深度。这里我们使用SKMaskFilter.CreateBlur创建模糊效果，实现柔和的阴影。

风格切换：现代与传统

我们的控件支持两种不同的风格：现代风格和传统风格。现代风格特点包括：

粗体数字
更复杂的指针设计
装饰性内环
鲜明的配色方案

通过UseModernStyle属性可以在这两种风格间切换：

C#
// 现代风格秒针
if (UseModernStyle)
{
    // 绘制带有尾部的指针
    canvas.DrawLine(0, length * 0.2f, 0, -length, paint);

    // 绘制圆形尾部
    paint.Style = SKPaintStyle.Fill;
    canvas.DrawCircle(0, length * 0.2f, 4, paint);

    // 绘制秒针头部
    SKPath path = new SKPath();
    path.MoveTo(-3, -length + 15);
    path.LineTo(3, -length + 15);
    path.LineTo(0, -length);
    path.Close();
    canvas.DrawPath(path, paint);
}
else
{
    // 传统风格秒针
    canvas.DrawLine(0, 0, 0, -length, paint);
}

这段代码展示了如何使用SKPath绘制复杂形状，为现代风格的秒针创建箭头形状的指针头部。

自定义与定制选项

为了增强控件的可重用性，我们添加了多个自定义属性：

C#
// 样式设置
public SKColor BackgroundColor { get; set; } = SKColors.White;
public SKColor FaceColor { get; set; } = SKColors.WhiteSmoke;
public SKColor BorderColor { get; set; } = new SKColor(40, 40, 40);
public SKColor HourHandColor { get; set; } = new SKColor(60, 60, 60);
public SKColor MinuteHandColor { get; set; } = new SKColor(80, 80, 80);
public SKColor SecondHandColor { get; set; } = SKColors.OrangeRed;
public SKColor MarkersColor { get; set; } = new SKColor(40, 40, 40);
public SKColor NumbersColor { get; set; } = new SKColor(40, 40, 40);
public bool ShowShadows { get; set; } = true;
public bool ShowSecondHand { get; set; } = true;
public bool UseModernStyle { get; set; } = true;

这些属性允许用户自定义控件的各个方面，包括颜色、样式和功能特性。例如，用户可以选择隐藏秒针或关闭阴影效果以获得更简洁的外观。

最佳实践与性能考量

资源管理

正确管理SkiaSharp资源对于避免内存泄漏至关重要。在我们的控件中，所有的SKPaint对象都使用using语句确保及时释放：

C#
using var paint = new SKPaint
{
    // 属性设置
};

此外，我们在控件的Dispose方法中停止并释放计时器资源：

C#
protected override void Dispose(bool disposing)
{
    if (disposing)
    {
        _timer?.Stop();
        _timer?.Dispose();
    }

    base.Dispose(disposing);
}

抗锯齿与流畅绘制

为了获得高质量的视觉效果，我们在所有绘图操作中启用了抗锯齿：

C#
IsAntialias = true

这确保了时钟的边缘和指针都能平滑显示，没有锯齿感。

窗口大小调整处理

时钟控件需要响应容器大小的变化，我们通过重写OnResize方法实现：

C#
protected override void OnResize(EventArgs e)
{
    base.OnResize(e);
    Invalidate();
}

当控件大小改变时，会触发重绘，确保时钟的所有元素都相应调整。

完整代码实现

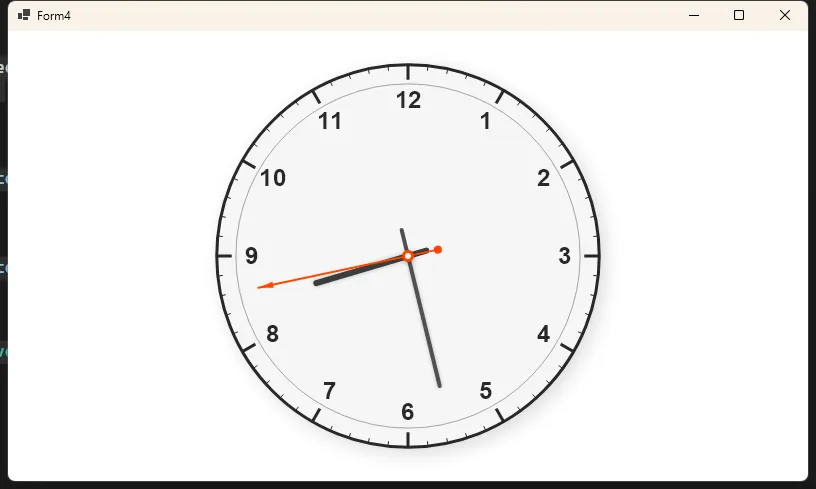

完整的时钟控件实现包含了所有上述功能和美化效果。核心绘制逻辑位于OnPaintSurface方法中：

C#
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using SkiaSharp.Views.Desktop;
using SkiaSharp;
using System.Timers;

namespace AppRotate
{
    public class ClockControl : SKControl
    {
        private System.Timers.Timer _timer;
        private float _hourHandLength;
        private float _minuteHandLength;
        private float _secondHandLength;
        private float _clockRadius;

        // 样式设置
        public SKColor BackgroundColor { get; set; } = SKColors.White;
        public SKColor FaceColor { get; set; } = SKColors.WhiteSmoke;
        public SKColor BorderColor { get; set; } = new SKColor(40, 40, 40);
        public SKColor HourHandColor { get; set; } = new SKColor(60, 60, 60);
        public SKColor MinuteHandColor { get; set; } = new SKColor(80, 80, 80);
        public SKColor SecondHandColor { get; set; } = SKColors.OrangeRed;
        public SKColor MarkersColor { get; set; } = new SKColor(40, 40, 40);
        public SKColor NumbersColor { get; set; } = new SKColor(40, 40, 40);
        public bool ShowShadows { get; set; } = true;
        public bool ShowSecondHand { get; set; } = true;
        public bool UseModernStyle { get; set; } = true;

        public ClockControl()
        {
            // 设置控件基本属性
            BackColor = Color.White;
            Size = new Size(300, 300);

            // 初始化计时器，每秒更新一次
            _timer = new System.Timers.Timer(1000);
            _timer.Elapsed += OnTimerElapsed;
            _timer.AutoReset = true;
            _timer.Enabled = true;
        }

        private void OnTimerElapsed(object sender, ElapsedEventArgs e)
        {
            // 在UI线程上刷新控件
            if (InvokeRequired)
            {
                BeginInvoke(new Action(() => Invalidate()));
            }
            else
            {
                Invalidate();
            }
        }

        protected override void OnPaintSurface(SKPaintSurfaceEventArgs e)
        {
            base.OnPaintSurface(e);

            SKSurface surface = e.Surface;
            SKCanvas canvas = surface.Canvas;

            // 清除背景
            canvas.Clear(BackgroundColor);

            // 计算尺寸
            int width = e.Info.Width;
            int height = e.Info.Height;
            float centerX = width / 2f;
            float centerY = height / 2f;
            _clockRadius = Math.Min(width, height) / 2f * 0.85f;

            // 设置指针长度
            _hourHandLength = _clockRadius * 0.5f;
            _minuteHandLength = _clockRadius * 0.7f;
            _secondHandLength = _clockRadius * 0.8f;

            // 绘制时钟表盘
            DrawClockFace(canvas, centerX, centerY, _clockRadius);

            // 获取当前时间
            DateTime now = DateTime.Now;

            // 计算指针角度
            float hourAngle = 30 * (now.Hour % 12) + 0.5f * now.Minute;
            float minuteAngle = 6 * now.Minute + 0.1f * now.Second;
            float secondAngle = 6 * now.Second;

            // 绘制时针
            DrawClockHand(canvas, hourAngle, _hourHandLength, HourHandColor, 6);

            // 绘制分针
            DrawClockHand(canvas, minuteAngle, _minuteHandLength, MinuteHandColor, 4);

            // 绘制秒针
            if (ShowSecondHand)
            {
                DrawSecondHand(canvas, secondAngle, _secondHandLength, SecondHandColor);
            }

            // 绘制中心点
            DrawClockCenter(canvas, centerX, centerY);
        }

        private void DrawClockFace(SKCanvas canvas, float centerX, float centerY, float radius)
        {
            // 绘制表盘背景
            if (ShowShadows)
            {
                // 添加阴影效果
                using var shadowPaint = new SKPaint
                {
                    Color = SKColors.Black.WithAlpha(40),
                    IsAntialias = true,
                    MaskFilter = SKMaskFilter.CreateBlur(SKBlurStyle.Normal, 10)
                };

                canvas.DrawCircle(centerX + 5, centerY + 5, radius, shadowPaint);
            }

            // 绘制表盘
            using (var facePaint = new SKPaint
            {
                Style = SKPaintStyle.Fill,
                Color = FaceColor,
                IsAntialias = true
            })
            {
                canvas.DrawCircle(centerX, centerY, radius, facePaint);
            }

            // 绘制外圆
            using var borderPaint = new SKPaint
            {
                Style = SKPaintStyle.Stroke,
                Color = BorderColor,
                StrokeWidth = UseModernStyle ? 3 : 2,
                IsAntialias = true
            };

            canvas.DrawCircle(centerX, centerY, radius, borderPaint);

            // 绘制刻度
            using var tickPaint = new SKPaint
            {
                Color = MarkersColor,
                StrokeWidth = 1,
                IsAntialias = true
            };

            for (int i = 0; i < 60; i++)
            {
                float angle = i * 6; // 每分钟6度
                bool isHourMark = i % 5 == 0;

                float outerRadius = radius;
                float innerRadius = isHourMark ? radius - 15 : radius - 5;
                float strokeWidth = isHourMark ? 3 : 1;

                tickPaint.StrokeWidth = strokeWidth;

                float x1 = centerX + (float)(outerRadius * Math.Sin(Math.PI * angle / 180));
                float y1 = centerY - (float)(outerRadius * Math.Cos(Math.PI * angle / 180));
                float x2 = centerX + (float)(innerRadius * Math.Sin(Math.PI * angle / 180));
                float y2 = centerY - (float)(innerRadius * Math.Cos(Math.PI * angle / 180));

                canvas.DrawLine(x1, y1, x2, y2, tickPaint);

                // 绘制数字
                if (isHourMark)
                {
                    int hour = i / 5 == 0 ? 12 : i / 5;

                    using var textPaint = new SKPaint
                    {
                        Color = NumbersColor,
                        TextSize = UseModernStyle ? 24 : 20,
                        IsAntialias = true,
                        TextAlign = SKTextAlign.Center,
                        Typeface = SKTypeface.FromFamilyName(
                            UseModernStyle ? "Arial" : "Times New Roman",
                            UseModernStyle ? SKFontStyleWeight.Bold : SKFontStyleWeight.Normal,
                            SKFontStyleWidth.Normal,
                            SKFontStyleSlant.Upright)
                    };

                    float textRadius = radius - 35;
                    float textX = centerX + (float)(textRadius * Math.Sin(Math.PI * angle / 180));
                    float textY = centerY - (float)(textRadius * Math.Cos(Math.PI * angle / 180)) + 8; // 垂直居中调整

                    canvas.DrawText(hour.ToString(), textX, textY, textPaint);
                }
            }

            // 添加装饰环
            if (UseModernStyle)
            {
                using var decorPaint = new SKPaint
                {
                    Style = SKPaintStyle.Stroke,
                    Color = BorderColor.WithAlpha(100),
                    StrokeWidth = 1,
                    IsAntialias = true
                };

                canvas.DrawCircle(centerX, centerY, radius * 0.9f, decorPaint);
            }
        }

        // 绘制时针和分针
        private void DrawClockHand(SKCanvas canvas, float angle, float length, SKColor color, float strokeWidth)
        {
            // 保存画布状态
            canvas.Save();

            // 移动到时钟中心
            float centerX = Width / 2;
            float centerY = Height / 2;
            canvas.Translate(centerX, centerY);

            // 应用旋转
            canvas.RotateDegrees(angle);

            // 绘制阴影
            if (ShowShadows)
            {
                using var shadowPaint = new SKPaint
                {
                    Color = SKColors.Black.WithAlpha(60),
                    StrokeWidth = strokeWidth,
                    IsAntialias = true,
                    StrokeCap = SKStrokeCap.Round,
                    MaskFilter = SKMaskFilter.CreateBlur(SKBlurStyle.Normal, 2)
                };

                canvas.DrawLine(0, 0, 0, -length, shadowPaint);
            }

            // 设置画笔
            using var paint = new SKPaint
            {
                Color = color,
                StrokeWidth = strokeWidth,
                IsAntialias = true,
                StrokeCap = SKStrokeCap.Round
            };

            // 绘制指针
            if (UseModernStyle)
            {
                // 现代风格：绘制带有尾部的指针
                canvas.DrawLine(0, length * 0.2f, 0, -length, paint);

                // 绘制指针头部
                paint.Style = SKPaintStyle.Fill;
                SKPath path = new SKPath();
                path.MoveTo(-strokeWidth / 2, -length + strokeWidth * 2);
                path.LineTo(strokeWidth / 2, -length + strokeWidth * 2);
                path.LineTo(0, -length);
                path.Close();
                canvas.DrawPath(path, paint);
            }
            else
            {
                // 传统风格：简单线条
                canvas.DrawLine(0, 0, 0, -length, paint);
            }

            // 恢复画布状态
            canvas.Restore();
        }

        // 绘制秒针（特殊处理，使其更细长）
        private void DrawSecondHand(SKCanvas canvas, float angle, float length, SKColor color)
        {
            canvas.Save();

            float centerX = Width / 2;
            float centerY = Height / 2;
            canvas.Translate(centerX, centerY);
            canvas.RotateDegrees(angle);

            // 绘制秒针
            using var paint = new SKPaint
            {
                Color = color,
                StrokeWidth = 2,
                IsAntialias = true,
                StrokeCap = SKStrokeCap.Round
            };

            if (UseModernStyle)
            {
                // 现代风格秒针
                canvas.DrawLine(0, length * 0.2f, 0, -length, paint);

                // 绘制圆形尾部
                paint.Style = SKPaintStyle.Fill;
                canvas.DrawCircle(0, length * 0.2f, 4, paint);

                // 绘制秒针头部
                SKPath path = new SKPath();
                path.MoveTo(-3, -length + 15);
                path.LineTo(3, -length + 15);
                path.LineTo(0, -length);
                path.Close();
                canvas.DrawPath(path, paint);
            }
            else
            {
                // 传统风格秒针
                canvas.DrawLine(0, 0, 0, -length, paint);
            }

            canvas.Restore();
        }

        private void DrawClockCenter(SKCanvas canvas, float centerX, float centerY)
        {
            if (ShowShadows)
            {
                // 绘制中心点阴影
                using var shadowPaint = new SKPaint
                {
                    Color = SKColors.Black.WithAlpha(60),
                    Style = SKPaintStyle.Fill,
                    IsAntialias = true,
                    MaskFilter = SKMaskFilter.CreateBlur(SKBlurStyle.Normal, 3)
                };

                canvas.DrawCircle(centerX + 1, centerY + 1, 6, shadowPaint);
            }

            // 绘制中心圆点
            using var paint = new SKPaint
            {
                Color = UseModernStyle ? SecondHandColor : BorderColor,
                Style = SKPaintStyle.Fill,
                IsAntialias = true
            };

            canvas.DrawCircle(centerX, centerY, 6, paint);

            // 绘制内部白色圆点
            paint.Color = FaceColor;
            canvas.DrawCircle(centerX, centerY, 3, paint);
        }

        protected override void OnResize(EventArgs e)
        {
            base.OnResize(e);
            Invalidate();
        }

        protected override void Dispose(bool disposing)
        {
            if (disposing)
            {
                _timer?.Stop();
                _timer?.Dispose();
            }

            base.Dispose(disposing);
        }
    }
}

这个方法协调了各个绘制组件，计算正确的尺寸和角度，并按照从底到顶的顺序绘制各个元素。

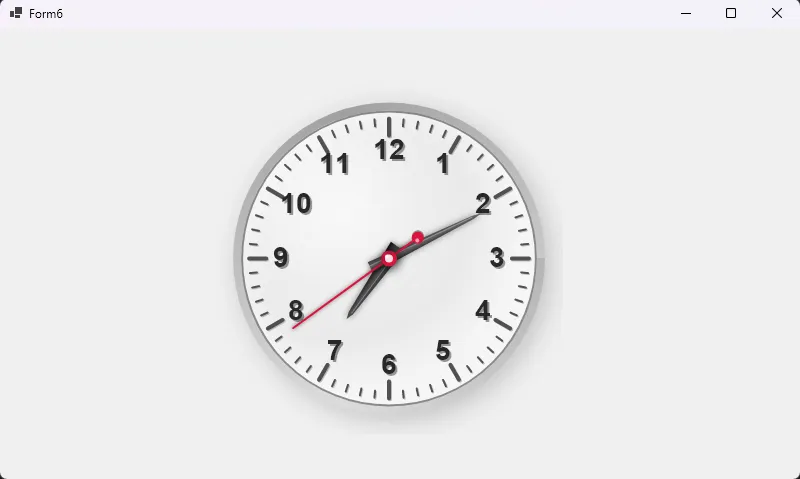

扩展应用

C#
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using SkiaSharp;
using System.Timers;
using System.ComponentModel;
using System.Windows.Forms;

namespace AppRotate
{
    [ToolboxItem(true)]
    [DesignerCategory("")]
    public class ClockControlEx : Control
    {
        private System.Timers.Timer _timer;
        private float _hourHandLength;
        private float _minuteHandLength;
        private float _secondHandLength;
        private float _clockRadius;
        private bool _designMode;

        [Category("Appearance")]
        public SKColor FaceColor { get; set; } = SKColors.White.WithAlpha(220);

        [Category("Appearance")]
        public SKColor BorderColor { get; set; } = new SKColor(60, 60, 60);

        [Category("Appearance")]
        public SKColor HourHandColor { get; set; } = new SKColor(40, 40, 40);

        [Category("Appearance")]
        public SKColor MinuteHandColor { get; set; } = new SKColor(60, 60, 60);

        [Category("Appearance")]
        public SKColor SecondHandColor { get; set; } = SKColors.Crimson;

        [Category("Appearance")]
        public SKColor MarkersColor { get; set; } = new SKColor(80, 80, 80);

        [Category("Appearance")]
        public SKColor NumbersColor { get; set; } = new SKColor(40, 40, 40);

        [Category("Behavior")]
        public bool ShowShadows { get; set; } = true;

        [Category("Behavior")]
        public bool ShowSecondHand { get; set; } = true;

        [Category("Behavior")]
        public bool UseGlassEffect { get; set; } = true;

        public ClockControlEx()
        {
            // 检查是否在设计模式
            _designMode = DesignMode || LicenseManager.UsageMode == LicenseUsageMode.Designtime;

            Size = new Size(300, 300);

            // 启用透明背景支持
            SetStyle(ControlStyles.AllPaintingInWmPaint |
                     ControlStyles.UserPaint |
                     ControlStyles.DoubleBuffer |
                     ControlStyles.ResizeRedraw |
                     ControlStyles.SupportsTransparentBackColor, true);

            // 设置透明背景
            BackColor = Color.Transparent;

            // 只在运行时创建计时器
            if (!_designMode)
            {
                InitializeTimer();
            }
        }

        private void InitializeTimer()
        {
            try
            {
                _timer = new System.Timers.Timer(1000);
                _timer.Elapsed += OnTimerElapsed;
                _timer.AutoReset = true;
                _timer.Enabled = true;
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"Timer initialization failed: {ex.Message}");
            }
        }

        private void OnTimerElapsed(object sender, ElapsedEventArgs e)
        {
            try
            {
                if (InvokeRequired)
                {
                    BeginInvoke(new Action(() =>
                    {
                        try
                        {
                            Invalidate();
                        }
                        catch (Exception ex)
                        {
                            System.Diagnostics.Debug.WriteLine($"Invalidate failed: {ex.Message}");
                        }
                    }));
                }
                else
                {
                    Invalidate();
                }
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"Timer elapsed error: {ex.Message}");
            }
        }

        protected override void OnPaint(PaintEventArgs e)
        {
            try
            {
                base.OnPaint(e);

                int width = Width;
                int height = Height;

                if (width <= 0 || height <= 0) return;

                // 创建SKSurface
                var info = new SKImageInfo(width, height, SKColorType.Bgra8888, SKAlphaType.Premul);

                using (var surface = SKSurface.Create(info))
                {
                    if (surface == null) return;

                    SKCanvas canvas = surface.Canvas;
                    canvas.Clear(SKColors.Transparent); // 透明背景

                    float centerX = width / 2f;
                    float centerY = height / 2f;
                    _clockRadius = Math.Min(width, height) / 2f * 0.85f;

                    _hourHandLength = _clockRadius * 0.5f;
                    _minuteHandLength = _clockRadius * 0.7f;
                    _secondHandLength = _clockRadius * 0.8f;

                    // 绘制时钟表盘
                    DrawGlass3DClockFace(canvas, centerX, centerY, _clockRadius);

                    // 在设计模式下使用固定时间，运行时使用当前时间
                    DateTime displayTime = _designMode ? new DateTime(2024, 1, 1, 10, 10, 30) : DateTime.Now;

                    float hourAngle = 30 * (displayTime.Hour % 12) + 0.5f * displayTime.Minute;
                    float minuteAngle = 6 * displayTime.Minute + 0.1f * displayTime.Second;
                    float secondAngle = 6 * displayTime.Second;

                    // 绘制3D指针
                    Draw3DClockHand(canvas, centerX, centerY, hourAngle, _hourHandLength, HourHandColor, 8, true);
                    Draw3DClockHand(canvas, centerX, centerY, minuteAngle, _minuteHandLength, MinuteHandColor, 6, false);

                    if (ShowSecondHand)
                    {
                        Draw3DSecondHand(canvas, centerX, centerY, secondAngle, _secondHandLength, SecondHandColor);
                    }

                    Draw3DClockCenter(canvas, centerX, centerY);

                    // 将SKSurface绘制到Graphics上
                    using (var image = surface.Snapshot())
                    using (var data = image.Encode(SKEncodedImageFormat.Png, 100))
                    {
                        var stream = data.AsStream();
                        using (var bitmap = new Bitmap(stream))
                        {
                            e.Graphics.DrawImage(bitmap, 0, 0);
                        }
                    }
                }
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"Paint error: {ex.Message}");
                DrawFallbackClock(e.Graphics, Width, Height);
            }
        }

        private void DrawFallbackClock(Graphics g, int width, int height)
        {
            try
            {
                g.Clear(Color.Transparent);

                float centerX = width / 2f;
                float centerY = height / 2f;
                float radius = Math.Min(width, height) / 3f;

                using (var pen = new Pen(Color.Black, 2))
                {
                    g.DrawEllipse(pen, centerX - radius, centerY - radius, radius * 2, radius * 2);
                }

                using (var brush = new SolidBrush(Color.Black))
                using (var font = new Font("Arial", 12))
                {
                    var size = g.MeasureString("Clock", font);
                    g.DrawString("Clock", font, brush, centerX - size.Width / 2, centerY - size.Height / 2);
                }
            }
            catch
            {

            }
        }

        private void DrawGlass3DClockFace(SKCanvas canvas, float centerX, float centerY, float radius)
        {
            try
            {
                // 绘制外部阴影
                if (ShowShadows)
                {
                    using var outerShadowPaint = new SKPaint
                    {
                        Color = SKColors.Black.WithAlpha(60),
                        IsAntialias = true,
                        MaskFilter = SKMaskFilter.CreateBlur(SKBlurStyle.Normal, 15)
                    };
                    canvas.DrawCircle(centerX + 6, centerY + 6, radius + 5, outerShadowPaint);
                }

                // 绘制3D外圈 - 金属边框效果
                using (var metalRingPaint = new SKPaint
                {
                    Style = SKPaintStyle.Stroke,
                    StrokeWidth = 8,
                    IsAntialias = true
                })
                {
                    var colors = new SKColor[]
                    {
                        new SKColor(180, 180, 180),
                        new SKColor(220, 220, 220),
                        new SKColor(160, 160, 160),
                        new SKColor(200, 200, 200)
                    };
                    var positions = new float[] { 0f, 0.3f, 0.7f, 1f };

                    metalRingPaint.Shader = SKShader.CreateSweepGradient(
                        new SKPoint(centerX, centerY), colors, positions);

                    canvas.DrawCircle(centerX, centerY, radius + 4, metalRingPaint);
                }

                // 绘制玻璃表盘背景
                if (UseGlassEffect)
                {
                    using var glassPaint = new SKPaint
                    {
                        Style = SKPaintStyle.Fill,
                        IsAntialias = true
                    };

                    var glassColors = new SKColor[]
                    {
                        FaceColor,
                        FaceColor.WithAlpha(180),
                        FaceColor.WithAlpha(220)
                    };
                    var glassPositions = new float[] { 0f, 0.7f, 1f };

                    glassPaint.Shader = SKShader.CreateRadialGradient(
                        new SKPoint(centerX - radius * 0.3f, centerY - radius * 0.3f),
                        radius * 1.2f,
                        glassColors,
                        glassPositions,
                        SKShaderTileMode.Clamp);

                    canvas.DrawCircle(centerX, centerY, radius, glassPaint);

                    // 玻璃高光效果
                    using var highlightPaint = new SKPaint
                    {
                        Style = SKPaintStyle.Fill,
                        IsAntialias = true
                    };

                    var highlightColors = new SKColor[]
                    {
                        SKColors.White.WithAlpha(100),
                        SKColors.White.WithAlpha(0)
                    };

                    highlightPaint.Shader = SKShader.CreateRadialGradient(
                        new SKPoint(centerX - radius * 0.4f, centerY - radius * 0.4f),
                        radius * 0.6f,
                        highlightColors,
                        new float[] { 0f, 1f },
                        SKShaderTileMode.Clamp);

                    canvas.DrawCircle(centerX, centerY, radius, highlightPaint);
                }
                else
                {
                    using var simpleFacePaint = new SKPaint
                    {
                        Style = SKPaintStyle.Fill,
                        Color = FaceColor,
                        IsAntialias = true
                    };
                    canvas.DrawCircle(centerX, centerY, radius, simpleFacePaint);
                }

                // 绘制内边框
                using var innerBorderPaint = new SKPaint
                {
                    Style = SKPaintStyle.Stroke,
                    Color = BorderColor.WithAlpha(150),
                    StrokeWidth = 2,
                    IsAntialias = true
                };
                canvas.DrawCircle(centerX, centerY, radius - 1, innerBorderPaint);

                // 绘制3D刻度
                Draw3DMarkers(canvas, centerX, centerY, radius);
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"DrawGlass3DClockFace error: {ex.Message}");
            }
        }

        private void Draw3DMarkers(SKCanvas canvas, float centerX, float centerY, float radius)
        {
            try
            {
                for (int i = 0; i < 60; i++)
                {
                    float angle = i * 6;
                    bool isHourMark = i % 5 == 0;

                    float outerRadius = radius - 8;
                    float innerRadius = isHourMark ? radius - 25 : radius - 15;

                    float x1 = centerX + (float)(outerRadius * Math.Sin(Math.PI * angle / 180));
                    float y1 = centerY - (float)(outerRadius * Math.Cos(Math.PI * angle / 180));
                    float x2 = centerX + (float)(innerRadius * Math.Sin(Math.PI * angle / 180));
                    float y2 = centerY - (float)(innerRadius * Math.Cos(Math.PI * angle / 180));

                    using var tickPaint = new SKPaint
                    {
                        Color = MarkersColor,
                        StrokeWidth = isHourMark ? 4 : 2,
                        IsAntialias = true,
                        StrokeCap = SKStrokeCap.Round
                    };

                    if (ShowShadows)
                    {
                        using var shadowPaint = new SKPaint
                        {
                            Color = SKColors.Black.WithAlpha(60),
                            StrokeWidth = tickPaint.StrokeWidth,
                            IsAntialias = true,
                            StrokeCap = SKStrokeCap.Round
                        };

                        canvas.DrawLine(x1 + 1, y1 + 1, x2 + 1, y2 + 1, shadowPaint);
                    }

                    canvas.DrawLine(x1, y1, x2, y2, tickPaint);

                    if (isHourMark)
                    {
                        int hour = i / 5 == 0 ? 12 : i / 5;
                        Draw3DNumber(canvas, centerX, centerY, hour, angle, radius - 40);
                    }
                }
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"Draw3DMarkers error: {ex.Message}");
            }
        }

        private void Draw3DNumber(SKCanvas canvas, float centerX, float centerY, int number, float angle, float textRadius)
        {
            try
            {
                float textX = centerX + (float)(textRadius * Math.Sin(Math.PI * angle / 180));
                float textY = centerY - (float)(textRadius * Math.Cos(Math.PI * angle / 180)) + 8;

                if (ShowShadows)
                {
                    using var shadowTextPaint = new SKPaint
                    {
                        Color = SKColors.Black.WithAlpha(100),
                        TextSize = 28,
                        IsAntialias = true,
                        TextAlign = SKTextAlign.Center,
                        Typeface = SKTypeface.FromFamilyName("Arial", SKFontStyleWeight.Bold, SKFontStyleWidth.Normal, SKFontStyleSlant.Upright)
                    };
                    canvas.DrawText(number.ToString(), textX + 2, textY + 2, shadowTextPaint);
                }

                using var textPaint = new SKPaint
                {
                    Color = NumbersColor,
                    TextSize = 28,
                    IsAntialias = true,
                    TextAlign = SKTextAlign.Center,
                    Typeface = SKTypeface.FromFamilyName("Arial", SKFontStyleWeight.Bold, SKFontStyleWidth.Normal, SKFontStyleSlant.Upright)
                };
                canvas.DrawText(number.ToString(), textX, textY, textPaint);
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"Draw3DNumber error: {ex.Message}");
            }
        }

        private void Draw3DClockHand(SKCanvas canvas, float centerX, float centerY, float angle, float length, SKColor color, float strokeWidth, bool isHourHand)
        {
            try
            {
                canvas.Save();
                canvas.Translate(centerX, centerY);
                canvas.RotateDegrees(angle);

                SKPath handPath = new SKPath();
                float baseWidth = strokeWidth;
                float tipWidth = strokeWidth * 0.3f;

                handPath.MoveTo(-baseWidth, length * 0.2f);
                handPath.LineTo(baseWidth, length * 0.2f);
                handPath.LineTo(tipWidth, -length * 0.9f);
                handPath.LineTo(0, -length);
                handPath.LineTo(-tipWidth, -length * 0.9f);
                handPath.Close();

                if (ShowShadows)
                {
                    using var shadowPaint = new SKPaint
                    {
                        Color = SKColors.Black.WithAlpha(120),
                        Style = SKPaintStyle.Fill,
                        IsAntialias = true,
                        MaskFilter = SKMaskFilter.CreateBlur(SKBlurStyle.Normal, 3)
                    };
                    canvas.DrawPath(handPath, shadowPaint);
                }

                using var handPaint = new SKPaint
                {
                    Style = SKPaintStyle.Fill,
                    IsAntialias = true
                };

                var handColors = new SKColor[]
                {
                    color.WithAlpha(255),
                    color.WithRed((byte)Math.Min(255, color.Red + 40)).WithGreen((byte)Math.Min(255, color.Green + 40)).WithBlue((byte)Math.Min(255, color.Blue + 40)),
                    color.WithRed((byte)Math.Max(0, color.Red - 30)).WithGreen((byte)Math.Max(0, color.Green - 30)).WithBlue((byte)Math.Max(0, color.Blue - 30))
                };

                handPaint.Shader = SKShader.CreateLinearGradient(
                    new SKPoint(-baseWidth, 0),
                    new SKPoint(baseWidth, 0),
                    handColors,
                    new float[] { 0f, 0.5f, 1f },
                    SKShaderTileMode.Clamp);

                canvas.DrawPath(handPath, handPaint);

                using var highlightPaint = new SKPaint
                {
                    Color = SKColors.White.WithAlpha(80),
                    StrokeWidth = 1,
                    IsAntialias = true
                };

                canvas.DrawLine(-baseWidth * 0.3f, length * 0.2f, -tipWidth * 0.3f, -length * 0.9f, highlightPaint);

                canvas.Restore();
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"Draw3DClockHand error: {ex.Message}");
                canvas.Restore();
            }
        }

        private void Draw3DSecondHand(SKCanvas canvas, float centerX, float centerY, float angle, float length, SKColor color)
        {
            try
            {
                canvas.Save();
                canvas.Translate(centerX, centerY);
                canvas.RotateDegrees(angle);

                if (ShowShadows)
                {
                    using var shadowPaint = new SKPaint
                    {
                        Color = SKColors.Black.WithAlpha(100),
                        StrokeWidth = 3,
                        IsAntialias = true,
                        StrokeCap = SKStrokeCap.Round,
                        MaskFilter = SKMaskFilter.CreateBlur(SKBlurStyle.Normal, 2)
                    };

                    canvas.DrawLine(0, length * 0.3f, 0, -length, shadowPaint);
                }

                using var secondPaint = new SKPaint
                {
                    Color = color,
                    StrokeWidth = 2,
                    IsAntialias = true,
                    StrokeCap = SKStrokeCap.Round
                };

                canvas.DrawLine(0, length * 0.3f, 0, -length, secondPaint);

                using var circlePaint = new SKPaint
                {
                    Style = SKPaintStyle.Fill,
                    Color = color,
                    IsAntialias = true
                };

                if (ShowShadows)
                {
                    using var shadowCirclePaint = new SKPaint
                    {
                        Style = SKPaintStyle.Fill,
                        Color = SKColors.Black.WithAlpha(100),
                        IsAntialias = true
                    };
                    canvas.DrawCircle(1, length * 0.3f + 1, 6, shadowCirclePaint);
                }

                canvas.DrawCircle(0, length * 0.3f, 6, circlePaint);

                using var highlightPaint = new SKPaint
                {
                    Style = SKPaintStyle.Fill,
                    Color = SKColors.White.WithAlpha(150),
                    IsAntialias = true
                };
                canvas.DrawCircle(-2, length * 0.3f - 2, 2, highlightPaint);

                canvas.Restore();
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"Draw3DSecondHand error: {ex.Message}");
                canvas.Restore();
            }
        }

        private void Draw3DClockCenter(SKCanvas canvas, float centerX, float centerY)
        {
            try
            {
                if (ShowShadows)
                {
                    using var shadowPaint = new SKPaint
                    {
                        Color = SKColors.Black.WithAlpha(120),
                        Style = SKPaintStyle.Fill,
                        IsAntialias = true,
                        MaskFilter = SKMaskFilter.CreateBlur(SKBlurStyle.Normal, 4)
                    };
                    canvas.DrawCircle(centerX + 2, centerY + 2, 10, shadowPaint);
                }

                using var outerPaint = new SKPaint
                {
                    Style = SKPaintStyle.Fill,
                    IsAntialias = true
                };

                var centerColors = new SKColor[]
                {
                    SecondHandColor,
                    SecondHandColor.WithRed((byte)Math.Max(0, SecondHandColor.Red - 50)),
                    SecondHandColor
                };

                outerPaint.Shader = SKShader.CreateRadialGradient(
                    new SKPoint(centerX - 3, centerY - 3),
                    8,
                    centerColors,
                    new float[] { 0f, 0.7f, 1f },
                    SKShaderTileMode.Clamp);

                canvas.DrawCircle(centerX, centerY, 8, outerPaint);

                using var innerPaint = new SKPaint
                {
                    Style = SKPaintStyle.Fill,
                    Color = FaceColor,
                    IsAntialias = true
                };
                canvas.DrawCircle(centerX, centerY, 4, innerPaint);

                using var highlightPaint = new SKPaint
                {
                    Style = SKPaintStyle.Fill,
                    Color = SKColors.White.WithAlpha(200),
                    IsAntialias = true
                };
                canvas.DrawCircle(centerX - 2, centerY - 2, 2, highlightPaint);
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"Draw3DClockCenter error: {ex.Message}");
            }
        }

        protected override void OnResize(EventArgs e)
        {
            base.OnResize(e);
            try
            {
                Invalidate();
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"OnResize error: {ex.Message}");
            }
        }

        protected override void Dispose(bool disposing)
        {
            if (disposing)
            {
                try
                {
                    _timer?.Stop();
                    _timer?.Dispose();
                }
                catch (Exception ex)
                {
                    System.Diagnostics.Debug.WriteLine($"Dispose error: {ex.Message}");
                }
            }
            base.Dispose(disposing);
        }
    }
}

总结与展望

通过本文，我们详细介绍了如何使用SkiaSharp创建一个功能完善、视觉精美的时钟控件。主要亮点包括：

基础结构：使用SKControl和计时器实现基本框架
核心绘图技术：利用SkiaSharp的画布变换实现旋转指针
视觉美化：添加阴影、装饰元素和多种样式选项
可定制性：提供丰富的自定义属性满足不同需求
最佳实践：正确管理资源和处理控件生命周期

这个时钟控件展示了SkiaSharp在自定义控件开发中的强大能力。您可以将这些技术应用到其他需要复杂绘图功能的控件中，如仪表盘、图表或自定义进度指示器。

目录
