你是否在项目中遇到过这样的需求：需要开发一个专业的路径绘制工具，支持工业级精度和复杂路径操作？传统的GDI+性能有限，WPF又过于复杂。今天，我将带你用C#和SkiaSharp打造一个完整的工业级路径绘制系统。

本文将手把手教你：如何设计专业的UI布局、实现高性能图形渲染、处理复杂路径算法，以及导出多种工业格式（G代码、DXF等）。无论你是CAD软件开发者，还是工业控制系统工程师，这套解决方案都能为你节省大量开发时间。

💡 问题分析：工业绘图软件的核心痛点

🔍 传统方案的局限性

在开发工业级绘图软件时，我们常常面临这些挑战：

性能瓶颈：GDI+在处理大量图形元素时性能急剧下降

精度问题：浮点运算误差影响工业级精度要求

格式兼容：需要支持多种工业标准格式输出

UI复杂性：专业软件需要丰富的交互体验

🎯 SkiaSharp的优势

SkiaSharp作为Google Skia的.NET绑定，为我们提供了：

硬件加速：GPU渲染支持，性能提升10倍以上
跨平台：Windows、macOS、Linux全平台支持
工业精度：支持亚像素级精确渲染
丰富API：完整的2D图形绘制能力

🏗️ 系统架构设计

📋 核心类结构

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using SkiaSharp;

namespace AppIndustrialPathDrawing.Models
{
    public class PathPoint
    {
        public float X { get; set; }
        public float Y { get; set; }
        public PathPointType Type { get; set; }
        public float[] ControlPoints { get; set; }
        public string Description { get; set; }
        public DateTime CreatedTime { get; set; }

        public PathPoint()
        {
            CreatedTime = DateTime.Now;
            Type = PathPointType.Line;
        }

        public PathPoint(float x, float y, PathPointType type = PathPointType.Line) : this()
        {
            X = x;
            Y = y;
            Type = type;
        }

        public SKPoint ToSKPoint()
        {
            return new SKPoint(X, Y);
        }

        public override string ToString()
        {
            return $"({X:F2}, {Y:F2}) - {Type}";
        }
    }

    public enum PathPointType
    {
        Move,       // 移动到点
        Line,       // 直线到点
        Curve,      // 曲线到点
        Arc,        // 弧线到点
        Cubic,      // 三次贝塞尔曲线
        Quadratic   // 二次贝塞尔曲线
    }
}

🎨 工业路径核心类

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using SkiaSharp;

namespace AppIndustrialPathDrawing.Models
{
    public class IndustrialPath
    {
        public string Id { get; set; }
        public string Name { get; set; }
        public string Description { get; set; }
        public List<PathPoint> Points { get; set; }
        public PathType Type { get; set; }
        public DrawingSettings Settings { get; set; }
        public DateTime CreatedTime { get; set; }
        public DateTime ModifiedTime { get; set; }

        public float TotalLength { get; private set; }
        public float MaxVelocity { get; set; } = 100.0f; // mm/s
        public float Acceleration { get; set; } = 50.0f; // mm/s²
        public float Tolerance { get; set; } = 0.01f; // mm
        public string MaterialType { get; set; } = "Steel";
        public float ToolDiameter { get; set; } = 5.0f; // mm

        public IndustrialPath()
        {
            Id = Guid.NewGuid().ToString();
            Points = new List<PathPoint>();
            Settings = new DrawingSettings();
            CreatedTime = DateTime.Now;
            ModifiedTime = DateTime.Now;
        }

        public void AddPoint(PathPoint point)
        {
            Points.Add(point);
            ModifiedTime = DateTime.Now;
            CalculateLength();
        }
        public bool RemovePoint(PathPoint point)
        {
            bool removed = Points.Remove(point);
            if (removed)
            {
                ModifiedTime = DateTime.Now;
                CalculateLength();
            }
            return removed;
        }

        public void CalculateLength()
        {
            TotalLength = 0;
            for (int i = 1; i < Points.Count; i++)
            {
                var p1 = Points[i - 1];
                var p2 = Points[i];

                switch (p2.Type)
                {
                    case PathPointType.Line:
                        TotalLength += CalculateLineLength(p1, p2);
                        break;
                    case PathPointType.Curve:
                    case PathPointType.Cubic:
                    case PathPointType.Quadratic:
                        TotalLength += CalculateCurveLength(p1, p2);
                        break;
                    case PathPointType.Arc:
                        TotalLength += CalculateArcLength(p1, p2);
                        break;
                }
            }
        }

        private float CalculateLineLength(PathPoint p1, PathPoint p2)
        {
            float dx = p2.X - p1.X;
            float dy = p2.Y - p1.Y;
            return (float)Math.Sqrt(dx * dx + dy * dy);
        }

        private float CalculateCurveLength(PathPoint p1, PathPoint p2)
        {
            // 简化一些
            return CalculateLineLength(p1, p2) * 1.2f;
        }

        private float CalculateArcLength(PathPoint p1, PathPoint p2)
        {
            // 简化一些
            return CalculateLineLength(p1, p2) * 1.57f; // π/2 近似
        }

        /// <summary>
        /// 创建 SkiaSharp 路径对象
        /// </summary>
        public SKPath CreateSKPath()
        {
            var path = new SKPath();

            if (Points.Count == 0) return path;

            var firstPoint = Points[0];
            path.MoveTo(firstPoint.X, firstPoint.Y);

            for (int i = 1; i < Points.Count; i++)
            {
                var point = Points[i];

                switch (point.Type)
                {
                    case PathPointType.Line:
                        path.LineTo(point.X, point.Y);
                        break;

                    case PathPointType.Quadratic:
                        if (point.ControlPoints != null && point.ControlPoints.Length >= 2)
                        {
                            path.QuadTo(point.ControlPoints[0], point.ControlPoints[1],
                                       point.X, point.Y);
                        }
                        else
                        {
                            path.LineTo(point.X, point.Y);
                        }
                        break;

                    case PathPointType.Cubic:
                        if (point.ControlPoints != null && point.ControlPoints.Length >= 4)
                        {
                            path.CubicTo(point.ControlPoints[0], point.ControlPoints[1],
                                        point.ControlPoints[2], point.ControlPoints[3],
                                        point.X, point.Y);
                        }
                        else
                        {
                            path.LineTo(point.X, point.Y);
                        }
                        break;

                    case PathPointType.Arc:
                        var rect = new SKRect(point.X - 50, point.Y - 50, point.X + 50, point.Y + 50);
                        path.ArcTo(rect, 0, 90, false);
                        break;

                    default:
                        path.LineTo(point.X, point.Y);
                        break;
                }
            }

            return path;
        }

        public SKRect GetBounds()
        {
            if (Points.Count == 0) return SKRect.Empty;

            float minX = Points.Min(p => p.X);
            float maxX = Points.Max(p => p.X);
            float minY = Points.Min(p => p.Y);
            float maxY = Points.Max(p => p.Y);

            return new SKRect(minX, minY, maxX, maxY);
        }
    }
    public enum PathType
    {
        Linear,         // 直线路径
        Curved,         // 曲线路径
        Complex,        // 复杂路径
        Machining,      // 加工路径
        Welding,        // 焊接路径
        Cutting         // 切割路径
    }
}

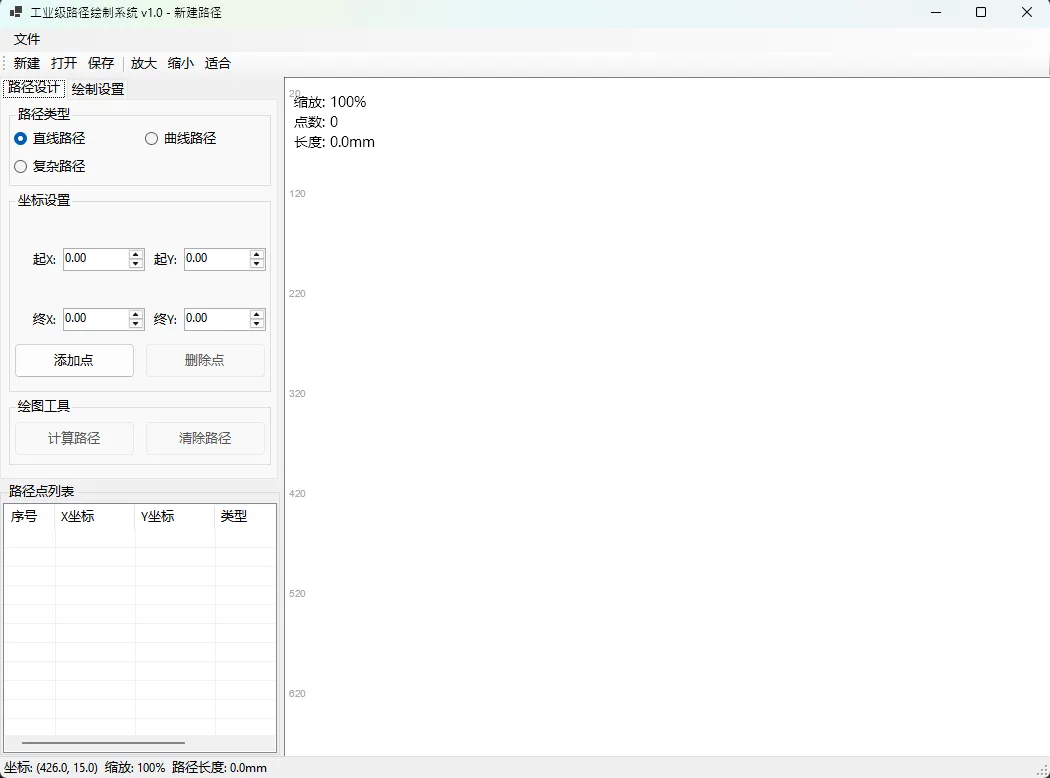

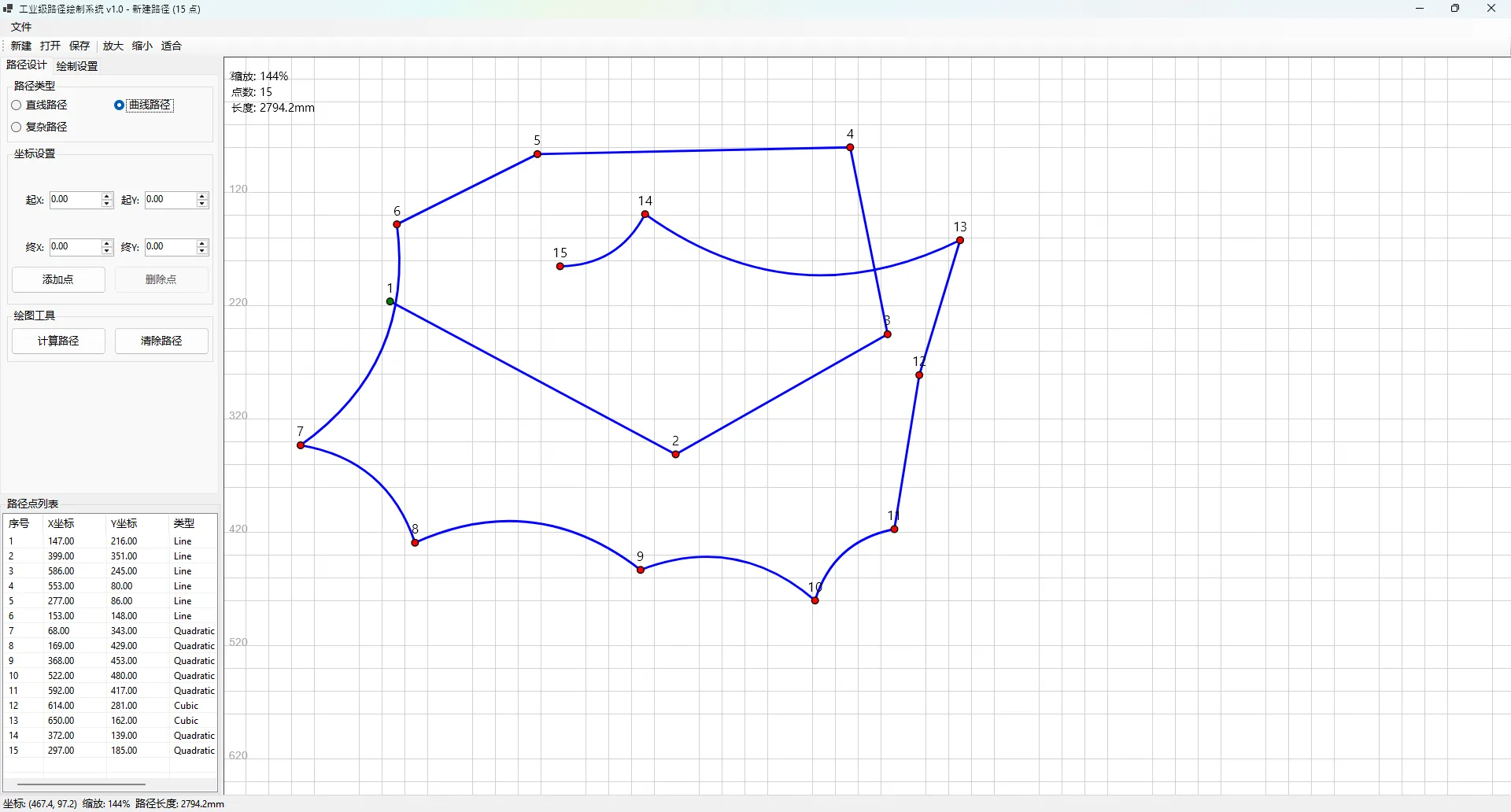

🖥️ UI布局设计最佳实践

C#
using AppIndustrialPathDrawing.Models;
using AppIndustrialPathDrawing.Services;
using SkiaSharp;
using SkiaSharp.Views.Desktop;

namespace AppIndustrialPathDrawing
{
    public partial class FrmMain : Form
    {
        private IndustrialPath currentPath;
        private DrawingSettings drawingSettings;
        private float zoomFactor = 1.0f;
        private SKPoint panOffset = SKPoint.Empty;
        private bool isPanning = false;
        private SKPoint lastPanPoint;
        private ColorDialog colorDialog;
        SKTypeface typeface;
        public FrmMain()
        {
            InitializeComponent();
            InitializeApplication();

            // 加载支持中文的字体
            typeface = SKTypeface.FromFamilyName(
                "Microsoft YaHei", // 或 "SimHei", "SimSun" 等常用中文字体
                SKFontStyleWeight.Normal,
                SKFontStyleWidth.Normal,
                SKFontStyleSlant.Upright);
        }

        private void InitializeApplication()
        {
            currentPath = new IndustrialPath
            {
                Name = "新建路径",
                Type = PathType.Linear
            };

            drawingSettings = new DrawingSettings();
            colorDialog = new ColorDialog();

            SetupEventHandlers();
            SetupListView();
            UpdateUI();
        }

        private void SetupEventHandlers()
        {
            // SKControl 事件
            skCanvas.PaintSurface += SkCanvas_PaintSurface;
            skCanvas.MouseDown += SkCanvas_MouseDown;
            skCanvas.MouseMove += SkCanvas_MouseMove;
            skCanvas.MouseUp += SkCanvas_MouseUp;
            skCanvas.MouseWheel += SkCanvas_MouseWheel;

            // 按钮事件
            btnAddPoint.Click += BtnAddPoint_Click;
            btnRemovePoint.Click += BtnRemovePoint_Click;
            btnCalculatePath.Click += BtnCalculatePath_Click;
            btnClearPath.Click += BtnClearPath_Click;
            btnStrokeColor.Click += BtnStrokeColor_Click;
            btnFillColor.Click += BtnFillColor_Click;

            // 数值控件事件
            nudStartX.ValueChanged += CoordinateChanged;
            nudStartY.ValueChanged += CoordinateChanged;
            nudEndX.ValueChanged += CoordinateChanged;
            nudEndY.ValueChanged += CoordinateChanged;

            // 轨迹栏事件
            trkStrokeWidth.ValueChanged += TrkStrokeWidth_ValueChanged;

            // 复选框事件
            chkShowGrid.CheckedChanged += DisplayOptionChanged;
            chkShowCoordinates.CheckedChanged += DisplayOptionChanged;
            chkAntiAlias.CheckedChanged += DisplayOptionChanged;

            // 单选按钮事件
            rbLinearPath.CheckedChanged += PathTypeChanged;
            rbCurvePath.CheckedChanged += PathTypeChanged;
            rbComplexPath.CheckedChanged += PathTypeChanged;

            // 菜单事件
            tsmiNew.Click += TsmiNew_Click;
            tsmiOpen.Click += TsmiOpen_Click;
            tsmiSave.Click += TsmiSave_Click;
            tsmiExport.Click += TsmiExport_Click;

            // 工具栏事件
            tsbNew.Click += TsmiNew_Click;
            tsbOpen.Click += TsmiOpen_Click;
            tsbSave.Click += TsmiSave_Click;
            tsbZoomIn.Click += TsbZoomIn_Click;
            tsbZoomOut.Click += TsbZoomOut_Click;
            tsbZoomFit.Click += TsbZoomFit_Click;

            // ListView 事件
            lvPathPoints.SelectedIndexChanged += LvPathPoints_SelectedIndexChanged;
        }

        private void SetupListView()
        {
            lvPathPoints.View = View.Details;
            lvPathPoints.FullRowSelect = true;
            lvPathPoints.GridLines = true;
            lvPathPoints.MultiSelect = false;

            lvPathPoints.Columns.Add("序号", 50);
            lvPathPoints.Columns.Add("X坐标", 80);
            lvPathPoints.Columns.Add("Y坐标", 80);
            lvPathPoints.Columns.Add("类型", 80);
            lvPathPoints.Columns.Add("描述", 100);
        }

        #region SkiaSharp 绘制事件

        private void SkCanvas_PaintSurface(object sender, SKPaintSurfaceEventArgs e)
        {
            var canvas = e.Surface.Canvas;
            canvas.Clear(SKColors.White);

            // 应用缩放和平移变换
            canvas.Save();
            canvas.Translate(panOffset.X, panOffset.Y);
            canvas.Scale(zoomFactor);

            // 绘制网格
            if (drawingSettings.ShowGrid)
            {
                DrawGrid(canvas);
            }

            // 绘制坐标轴
            if (drawingSettings.ShowCoordinates)
            {
                DrawCoordinateAxes(canvas);
            }

            // 绘制路径
            DrawIndustrialPath(canvas);

            // 绘制控制点
            if (drawingSettings.ShowControlPoints)
            {
                DrawControlPoints(canvas);
            }

            // 绘制方向箭头
            if (drawingSettings.ShowDirection)
            {
                DrawDirectionArrows(canvas);
            }

            canvas.Restore();

            // 绘制UI元素（不受变换影响）
            DrawUIElements(canvas, e.Info);
        }

        private void DrawGrid(SKCanvas canvas)
        {
            using (var paint = drawingSettings.CreateGridPaint())
            {
                var bounds = GetVisibleBounds();
                float spacing = drawingSettings.GridSpacing;

                // 绘制垂直线
                for (float x = (float)(Math.Floor(bounds.Left / spacing) * spacing);
                     x <= bounds.Right; x += spacing)
                {
                    canvas.DrawLine(x, bounds.Top, x, bounds.Bottom, paint);
                }

                // 绘制水平线
                for (float y = (float)(Math.Floor(bounds.Top / spacing) * spacing);
                     y <= bounds.Bottom; y += spacing)
                {
                    canvas.DrawLine(bounds.Left, y, bounds.Right, y, paint);
                }
            }
        }

        private void DrawCoordinateAxes(SKCanvas canvas)
        {
            using (var axisPaint = new SKPaint
            {
                Color = SKColors.Black,
                StrokeWidth = 1.0f,
                Style = SKPaintStyle.Stroke,
                IsAntialias = true
            })
            using (var textPaint = drawingSettings.CreateTextPaint())
            {
                var bounds = GetVisibleBounds();

                // X轴
                canvas.DrawLine(bounds.Left, 0, bounds.Right, 0, axisPaint);
                // Y轴
                canvas.DrawLine(0, bounds.Top, 0, bounds.Bottom, axisPaint);

                // 绘制刻度标签
                float spacing = drawingSettings.GridSpacing;
                for (float x = spacing; x <= bounds.Right; x += spacing * 5)
                {
                    canvas.DrawText(x.ToString("F0"), x, -5, textPaint);
                }
                for (float y = spacing; y <= bounds.Bottom; y += spacing * 5)
                {
                    canvas.DrawText(y.ToString("F0"), 5, y, textPaint);
                }
            }
        }

        private void DrawIndustrialPath(SKCanvas canvas)
        {
            if (currentPath.Points.Count < 2) return;

            using (var pathPaint = drawingSettings.CreatePathPaint())
            using (var skPath = currentPath.CreateSKPath())
            {
                canvas.DrawPath(skPath, pathPaint);
            }

            // 绘制路径段信息
            if (drawingSettings.ShowDimensions)
            {
                DrawPathDimensions(canvas);
            }
        }

        private void DrawControlPoints(SKCanvas canvas)
        {
            using (var pointPaint = new SKPaint
            {
                Color = drawingSettings.ControlPointColor,
                Style = SKPaintStyle.Fill,
                IsAntialias = true
            })
            using (var outlinePaint = new SKPaint
            {
                Color = SKColors.Black,
                Style = SKPaintStyle.Stroke,
                StrokeWidth = 1.0f,
                IsAntialias = true
            })
            {
                for (int i = 0; i < currentPath.Points.Count; i++)
                {
                    var point = currentPath.Points[i];
                    float radius = drawingSettings.ControlPointRadius;

                    // 起始点用不同颜色
                    if (i == 0)
                    {
                        pointPaint.Color = SKColors.Green;
                    }
                    else if (i == currentPath.Points.Count - 1)
                    {
                        pointPaint.Color = SKColors.Red;
                    }
                    else
                    {
                        pointPaint.Color = drawingSettings.ControlPointColor;
                    }

                    canvas.DrawCircle(point.X, point.Y, radius, pointPaint);
                    canvas.DrawCircle(point.X, point.Y, radius, outlinePaint);

                    // 绘制点编号
                    using (var textPaint = new SKPaint
                    {
                        Color = SKColors.Black,
                        TextSize = 12,
                        IsAntialias = true,
                        TextAlign = SKTextAlign.Center
                    })
                    {
                        canvas.DrawText((i + 1).ToString(), point.X, point.Y - radius - 5, textPaint);
                    }
                }
            }
        }

        private void DrawDirectionArrows(SKCanvas canvas)
        {
            if (currentPath.Points.Count < 2) return;

            using (var arrowPaint = new SKPaint
            {
                Color = drawingSettings.DirectionArrowColor,
                Style = SKPaintStyle.Fill,
                IsAntialias = true
            })
            {
                for (int i = 1; i < currentPath.Points.Count; i++)
                {
                    var start = currentPath.Points[i - 1];
                    var end = currentPath.Points[i];

                    DrawArrow(canvas, start.ToSKPoint(), end.ToSKPoint(), arrowPaint);
                }
            }
        }

        private void DrawArrow(SKCanvas canvas, SKPoint start, SKPoint end, SKPaint paint)
        {
            float dx = end.X - start.X;
            float dy = end.Y - start.Y;
            float length = (float)Math.Sqrt(dx * dx + dy * dy);

            if (length < 10) return; // 太短的线段不绘制箭头

            // 计算箭头位置（线段中点）
            float midX = start.X + dx * 0.5f;
            float midY = start.Y + dy * 0.5f;

            // 计算箭头方向
            float angle = (float)Math.Atan2(dy, dx);
            float arrowLength = drawingSettings.DirectionArrowSize;

            using (var path = new SKPath())
            {
                // 绘制箭头
                path.MoveTo(midX, midY);
                path.LineTo(
                    midX - arrowLength * (float)Math.Cos(angle - Math.PI / 6),
                    midY - arrowLength * (float)Math.Sin(angle - Math.PI / 6));
                path.MoveTo(midX, midY);
                path.LineTo(
                    midX - arrowLength * (float)Math.Cos(angle + Math.PI / 6),
                    midY - arrowLength * (float)Math.Sin(angle + Math.PI / 6));

                canvas.DrawPath(path, paint);
            }
        }

        private void DrawPathDimensions(SKCanvas canvas)
        {
            using (var textPaint = new SKPaint
            {
                Color = drawingSettings.DimensionColor,
                TextSize = drawingSettings.DimensionFontSize,
                IsAntialias = true,
                TextAlign = SKTextAlign.Center
            })
            {
                for (int i = 1; i < currentPath.Points.Count; i++)
                {
                    var start = currentPath.Points[i - 1];
                    var end = currentPath.Points[i];

                    float dx = end.X - start.X;
                    float dy = end.Y - start.Y;
                    float length = (float)Math.Sqrt(dx * dx + dy * dy);

                    float midX = start.X + dx * 0.5f;
                    float midY = start.Y + dy * 0.5f;

                    canvas.DrawText($"{length:F1}mm", midX, midY - 10, textPaint);
                }
            }
        }

        private void DrawUIElements(SKCanvas canvas, SKImageInfo info)
        {
            // 绘制缩放信息
            using (var textPaint = new SKPaint
            {
                Typeface = typeface, // 设置字体
                Color = SKColors.Black,
                TextSize = 14,
                IsAntialias = true
            })
            {
                canvas.DrawText($"缩放: {zoomFactor:P0}", 10, 30, textPaint);
                canvas.DrawText($"点数: {currentPath.Points.Count}", 10, 50, textPaint);
                canvas.DrawText($"长度: {currentPath.TotalLength:F1}mm", 10, 70, textPaint);
            }
        }

        private SKRect GetVisibleBounds()
        {
            float margin = 100 / zoomFactor;
            return new SKRect(
                -panOffset.X / zoomFactor - margin,
                -panOffset.Y / zoomFactor - margin,
                (-panOffset.X + skCanvas.Width) / zoomFactor + margin,
                (-panOffset.Y + skCanvas.Height) / zoomFactor + margin
            );
        }

        #endregion

        #region 鼠标事件处理

        private void SkCanvas_MouseDown(object sender, MouseEventArgs e)
        {
            if (e.Button == MouseButtons.Middle)
            {
                isPanning = true;
                lastPanPoint = new SKPoint(e.X, e.Y);
                skCanvas.Cursor = Cursors.Hand;
            }
            else if (e.Button == MouseButtons.Left)
            {
                // 将屏幕坐标转换为世界坐标
                var worldPoint = ScreenToWorld(new SKPoint(e.X, e.Y));

                // 添加新的路径点
                var newPoint = new PathPoint(worldPoint.X, worldPoint.Y);

                if (rbCurvePath.Checked && currentPath.Points.Count > 0)
                {
                    var lastPoint = currentPath.Points.Last();
                    newPoint.Type = PathPointType.Quadratic;
                    newPoint.ControlPoints = PathCalculationService.CalculateBezierControlPoints(lastPoint, newPoint);
                }
                else if (rbComplexPath.Checked && currentPath.Points.Count > 0)
                {
                    var lastPoint = currentPath.Points.Last();
                    newPoint.Type = PathPointType.Cubic;
                    newPoint.ControlPoints = PathCalculationService.CalculateCubicBezierControlPoints(lastPoint, newPoint);
                }

                currentPath.AddPoint(newPoint);
                UpdateUI();
                skCanvas.Invalidate();
            }
        }

        private void SkCanvas_MouseMove(object sender, MouseEventArgs e)
        {
            var worldPoint = ScreenToWorld(new SKPoint(e.X, e.Y));

            // 更新状态栏坐标显示
            tsslCoordinates.Text = $"坐标: ({worldPoint.X:F1}, {worldPoint.Y:F1})";

            if (isPanning)
            {
                var currentPoint = new SKPoint(e.X, e.Y);
                panOffset.X += currentPoint.X - lastPanPoint.X;
                panOffset.Y += currentPoint.Y - lastPanPoint.Y;
                lastPanPoint = currentPoint;
                skCanvas.Invalidate();
            }
        }

        private void SkCanvas_MouseUp(object sender, MouseEventArgs e)
        {
            if (e.Button == MouseButtons.Middle)
            {
                isPanning = false;
                skCanvas.Cursor = Cursors.Default;
            }
        }

        private void SkCanvas_MouseWheel(object sender, MouseEventArgs e)
        {
            float zoomDelta = e.Delta > 0 ? 1.1f : 0.9f;
            var mousePoint = new SKPoint(e.X, e.Y);

            // 以鼠标位置为中心缩放
            panOffset.X = mousePoint.X - (mousePoint.X - panOffset.X) * zoomDelta;
            panOffset.Y = mousePoint.Y - (mousePoint.Y - panOffset.Y) * zoomDelta;
            zoomFactor *= zoomDelta;

            // 限制缩放范围
            zoomFactor = Math.Max(0.1f, Math.Min(10.0f, zoomFactor));

            tsslZoom.Text = $"缩放: {zoomFactor:P0}";
            skCanvas.Invalidate();
        }

        private SKPoint ScreenToWorld(SKPoint screenPoint)
        {
            return new SKPoint(
                (screenPoint.X - panOffset.X) / zoomFactor,
                (screenPoint.Y - panOffset.Y) / zoomFactor
            );
        }

        #endregion

        #region 控件事件处理

        private void BtnAddPoint_Click(object sender, EventArgs e)
        {
            var newPoint = new PathPoint((float)nudStartX.Value, (float)nudStartY.Value);

            if (rbCurvePath.Checked && currentPath.Points.Count > 0)
            {
                var lastPoint = currentPath.Points.Last();
                newPoint.Type = PathPointType.Quadratic;
                newPoint.ControlPoints = PathCalculationService.CalculateBezierControlPoints(lastPoint, newPoint);
            }
            else if (rbComplexPath.Checked && currentPath.Points.Count > 0)
            {
                var lastPoint = currentPath.Points.Last();
                newPoint.Type = PathPointType.Cubic;
                newPoint.ControlPoints = PathCalculationService.CalculateCubicBezierControlPoints(lastPoint, newPoint);
            }

            currentPath.AddPoint(newPoint);
            UpdateUI();
            skCanvas.Invalidate();
        }

        private void BtnRemovePoint_Click(object sender, EventArgs e)
        {
            if (lvPathPoints.SelectedIndices.Count > 0)
            {
                int index = lvPathPoints.SelectedIndices[0];
                if (index < currentPath.Points.Count)
                {
                    currentPath.Points.RemoveAt(index);
                    currentPath.CalculateLength();
                    UpdateUI();
                    skCanvas.Invalidate();
                }
            }
        }

        private void BtnCalculatePath_Click(object sender, EventArgs e)
        {
            if (currentPath.Points.Count < 2)
            {
                MessageBox.Show("至少需要两个点才能计算路径。", "提示",
                    MessageBoxButtons.OK, MessageBoxIcon.Information);
                return;
            }

            // 优化路径
            var optimizedPoints = PathCalculationService.OptimizePath(currentPath.Points, 2.0f);
            currentPath.Points.Clear();
            optimizedPoints.ForEach(p => currentPath.AddPoint(p));

            // 计算加工时间
            float machiningTime = PathCalculationService.CalculateMachiningTime(currentPath);

            MessageBox.Show($"路径优化完成！\n" +
                          $"优化后点数: {currentPath.Points.Count}\n" +
                          $"总长度: {currentPath.TotalLength:F2} mm\n" +
                          $"预估加工时间: {machiningTime:F1} 秒",
                          "路径计算结果", MessageBoxButtons.OK, MessageBoxIcon.Information);

            UpdateUI();
            skCanvas.Invalidate();
        }

        private void BtnClearPath_Click(object sender, EventArgs e)
        {
            if (MessageBox.Show("确定要清除当前路径吗？", "确认",
                MessageBoxButtons.YesNo, MessageBoxIcon.Question) == DialogResult.Yes)
            {
                currentPath.Points.Clear();
                currentPath.CalculateLength();
                UpdateUI();
                skCanvas.Invalidate();
            }
        }

        private void BtnStrokeColor_Click(object sender, EventArgs e)
        {
            colorDialog.Color = Color.FromArgb(drawingSettings.StrokeColor.Alpha,
                drawingSettings.StrokeColor.Red,
                drawingSettings.StrokeColor.Green,
                drawingSettings.StrokeColor.Blue);

            if (colorDialog.ShowDialog() == DialogResult.OK)
            {
                drawingSettings.StrokeColor = new SKColor(
                    colorDialog.Color.R,
                    colorDialog.Color.G,
                    colorDialog.Color.B,
                    colorDialog.Color.A);

                btnStrokeColor.BackColor = colorDialog.Color;
                skCanvas.Invalidate();
            }
        }

        private void BtnFillColor_Click(object sender, EventArgs e)
        {
            colorDialog.Color = Color.FromArgb(drawingSettings.FillColor.Alpha,
                drawingSettings.FillColor.Red,
                drawingSettings.FillColor.Green,
                drawingSettings.FillColor.Blue);

            if (colorDialog.ShowDialog() == DialogResult.OK)
            {
                drawingSettings.FillColor = new SKColor(
                    colorDialog.Color.R,
                    colorDialog.Color.G,
                    colorDialog.Color.B,
                    colorDialog.Color.A);

                btnFillColor.BackColor = colorDialog.Color;
                skCanvas.Invalidate();
            }
        }

        private void TrkStrokeWidth_ValueChanged(object sender, EventArgs e)
        {
            drawingSettings.StrokeWidth = trkStrokeWidth.Value;
            lblStrokeWidthValue.Text = trkStrokeWidth.Value.ToString();
            skCanvas.Invalidate();
        }

        private void CoordinateChanged(object sender, EventArgs e)
        {
            // 实时更新坐标预览
            skCanvas.Invalidate();
        }

        private void DisplayOptionChanged(object sender, EventArgs e)
        {
            drawingSettings.ShowGrid = chkShowGrid.Checked;
            drawingSettings.ShowCoordinates = chkShowCoordinates.Checked;
            drawingSettings.AntiAlias = chkAntiAlias.Checked;
            skCanvas.Invalidate();
        }

        private void PathTypeChanged(object sender, EventArgs e)
        {
            if (rbLinearPath.Checked)
                currentPath.Type = PathType.Linear;
            else if (rbCurvePath.Checked)
                currentPath.Type = PathType.Curved;
            else if (rbComplexPath.Checked)
                currentPath.Type = PathType.Complex;
        }

        private void LvPathPoints_SelectedIndexChanged(object sender, EventArgs e)
        {
            btnRemovePoint.Enabled = lvPathPoints.SelectedIndices.Count > 0;
        }

        #endregion

        #region 菜单和工具栏事件

        private void TsmiNew_Click(object sender, EventArgs e)
        {
            if (currentPath.Points.Count > 0)
            {
                if (MessageBox.Show("当前路径尚未保存，确定要新建吗？", "确认",
                    MessageBoxButtons.YesNo, MessageBoxIcon.Question) != DialogResult.Yes)
                    return;
            }

            currentPath = new IndustrialPath
            {
                Name = "新建路径",
                Type = PathType.Linear
            };

            UpdateUI();
            skCanvas.Invalidate();
        }

        private void TsmiOpen_Click(object sender, EventArgs e)
        {
            using (var openFileDialog = new OpenFileDialog())
            {
                openFileDialog.Filter = "JSON文件 (*.json)|*.json|所有文件 (*.*)|*.*";
                openFileDialog.FilterIndex = 1;

                if (openFileDialog.ShowDialog() == DialogResult.OK)
                {
                    var loadedPath = ExportService.LoadFromJSON(openFileDialog.FileName);
                    if (loadedPath != null)
                    {
                        currentPath = loadedPath;
                        UpdateUI();
                        skCanvas.Invalidate();
                    }
                }
            }
        }

        private void TsmiSave_Click(object sender, EventArgs e)
        {
            using (var saveFileDialog = new SaveFileDialog())
            {
                saveFileDialog.Filter = "JSON文件 (*.json)|*.json|所有文件 (*.*)|*.*";
                saveFileDialog.FilterIndex = 1;
                saveFileDialog.FileName = currentPath.Name + ".json";

                if (saveFileDialog.ShowDialog() == DialogResult.OK)
                {
                    ExportService.SaveToJSON(currentPath, saveFileDialog.FileName);
                }
            }
        }

        private void TsmiExport_Click(object sender, EventArgs e)
        {
            using (var exportDialog = new SaveFileDialog())
            {
                exportDialog.Filter = "PNG图片 (*.png)|*.png|SVG矢量图 (*.svg)|*.svg|" +
                                    "G代码 (*.gcode)|*.gcode|DXF文件 (*.dxf)|*.dxf|所有文件 (*.*)|*.*";
                exportDialog.FilterIndex = 1;
                exportDialog.FileName = currentPath.Name;

                if (exportDialog.ShowDialog() == DialogResult.OK)
                {
                    string extension = System.IO.Path.GetExtension(exportDialog.FileName).ToLower();
                    bool success = false;

                    switch (extension)
                    {
                        case ".png":
                            success = ExportService.ExportToPNG(currentPath, drawingSettings, exportDialog.FileName);
                            break;
                        case ".svg":
                            success = ExportService.ExportToSVG(currentPath, drawingSettings, exportDialog.FileName);
                            break;
                        case ".gcode":
                            success = ExportService.ExportToGCode(currentPath, exportDialog.FileName);
                            break;
                        case ".dxf":
                            success = ExportService.ExportToDXF(currentPath, exportDialog.FileName);
                            break;
                    }

                    if (success)
                    {
                        MessageBox.Show("导出成功！", "提示",
                            MessageBoxButtons.OK, MessageBoxIcon.Information);
                    }
                }
            }
        }

        private void TsbZoomIn_Click(object sender, EventArgs e)
        {
            zoomFactor *= 1.2f;
            zoomFactor = Math.Min(10.0f, zoomFactor);
            tsslZoom.Text = $"缩放: {zoomFactor:P0}";
            skCanvas.Invalidate();
        }

        private void TsbZoomOut_Click(object sender, EventArgs e)
        {
            zoomFactor /= 1.2f;
            zoomFactor = Math.Max(0.1f, zoomFactor);
            tsslZoom.Text = $"缩放: {zoomFactor:P0}";
            skCanvas.Invalidate();
        }

        private void TsbZoomFit_Click(object sender, EventArgs e)
        {
            if (currentPath.Points.Count == 0) return;

            var bounds = currentPath.GetBounds();
            if (bounds.IsEmpty) return;

            float scaleX = (skCanvas.Width - 100) / bounds.Width;
            float scaleY = (skCanvas.Height - 100) / bounds.Height;
            zoomFactor = Math.Min(scaleX, scaleY);

            panOffset.X = (skCanvas.Width - bounds.Width * zoomFactor) / 2 - bounds.Left * zoomFactor;
            panOffset.Y = (skCanvas.Height - bounds.Height * zoomFactor) / 2 - bounds.Top * zoomFactor;

            tsslZoom.Text = $"缩放: {zoomFactor:P0}";
            skCanvas.Invalidate();
        }

        #endregion

        #region UI 更新

        private void UpdateUI()
        {
            // 更新路径点列表
            UpdatePathPointsList();

            // 更新状态栏
            tsslPathLength.Text = $"路径长度: {currentPath.TotalLength:F1}mm";

            // 更新按钮状态
            btnRemovePoint.Enabled = lvPathPoints.SelectedIndices.Count > 0;
            btnCalculatePath.Enabled = currentPath.Points.Count >= 2;
            btnClearPath.Enabled = currentPath.Points.Count > 0;

            // 更新窗体标题
            this.Text = $"工业级路径绘制系统 v1.0 - {currentPath.Name}" +
                       (currentPath.Points.Count > 0 ? $" ({currentPath.Points.Count} 点)" : "");
        }

        private void UpdatePathPointsList()
        {
            lvPathPoints.Items.Clear();

            for (int i = 0; i < currentPath.Points.Count; i++)
            {
                var point = currentPath.Points[i];
                var item = new ListViewItem((i + 1).ToString());
                item.SubItems.Add(point.X.ToString("F2"));
                item.SubItems.Add(point.Y.ToString("F2"));
                item.SubItems.Add(point.Type.ToString());
                item.SubItems.Add(point.Description ?? "");
                item.Tag = point;

                lvPathPoints.Items.Add(item);
            }
        }

        #endregion
    }
}

🔧 工业格式导出实战

📄 G代码导出 - CNC机床标准

C#
public static class IndustrialExporter
{
    /// <summary>
    /// 导出G代码 - 工业制造标准
    /// </summary>
    public static bool ExportToGCode(IndustrialPath path, string filePath)
    {
        try
        {
            var gcode = new StringBuilder();

            // G代码文件头
            gcode.AppendLine("; Generated by Industrial Path Drawing System");
            gcode.AppendLine($"; Date: {DateTime.Now:yyyy-MM-dd HH:mm:ss}");
            gcode.AppendLine($"; Tool Diameter: {path.ToolDiameter}mm");
            gcode.AppendLine($"; Feed Rate: {path.MaxVelocity}mm/min");
            gcode.AppendLine();

            // 机床初始化
            gcode.AppendLine("G21 ; Set units to millimeters");
            gcode.AppendLine("G90 ; Absolute positioning");
            gcode.AppendLine("G94 ; Feed rate per minute");
            gcode.AppendLine($"F{path.MaxVelocity:F0}");
            gcode.AppendLine();

            // 移动到起始点
            if (path.Points.Count > 0)
            {
                var start = path.Points[0];
                gcode.AppendLine($"G0 X{start.X:F3} Y{start.Y:F3} ; Rapid move to start");
                gcode.AppendLine("M3 S1000 ; Start spindle");

                float plungeDepth = path.ToolDiameter / 2;
                gcode.AppendLine($"G1 Z-{plungeDepth:F3} F300 ; Plunge");
            }

            // 生成路径G代码
            GeneratePathGCode(gcode, path);

            // 程序结束
            gcode.AppendLine("G0 Z5 ; Retract");
            gcode.AppendLine("M5 ; Stop spindle");
            gcode.AppendLine("G28 ; Home");
            gcode.AppendLine("M30 ; End program");

            File.WriteAllText(filePath, gcode.ToString(), Encoding.UTF8);
            return true;
        }
        catch (Exception ex)
        {
            throw new ExportException($"G代码导出失败: {ex.Message}", ex);
        }
    }

    /// <summary>
    /// 路径转G代码核心算法
    /// </summary>
    private static void GeneratePathGCode(StringBuilder gcode, IndustrialPath path)
    {
        for (int i = 1; i < path.Points.Count; i++)
        {
            var point = path.Points[i];
            var prevPoint = path.Points[i - 1];

            switch (point.Type)
            {
                case PathPointType.Line:
                    gcode.AppendLine($"G1 X{point.X:F3} Y{point.Y:F3}");
                    break;

                case PathPointType.Arc:
                    // 顺时针圆弧
                    float radius = CalculateArcRadius(prevPoint, point);
                    gcode.AppendLine($"G2 X{point.X:F3} Y{point.Y:F3} R{radius:F3}");
                    break;

                case PathPointType.Curve:
                    // 曲线转换为多段直线
                    var segments = InterpolateCurve(prevPoint, point, 10);
                    foreach (var segment in segments)
                    {
                        gcode.AppendLine($"G1 X{segment.X:F3} Y{segment.Y:F3}");
                    }
                    break;
            }
        }
    }
}

📊 DXF格式导出 - CAD标准

C#
/// <summary>
/// DXF格式导出 - AutoCAD兼容
/// </summary>
public static bool ExportToDXF(IndustrialPath path, string filePath)
{
    try
    {
        using var writer = new StreamWriter(filePath, false, Encoding.ASCII);

        // DXF文件头
        WriteDXFHeader(writer);

        // 图层定义
        WriteDXFLayers(writer);

        // 实体部分
        writer.WriteLine("0");
        writer.WriteLine("SECTION");
        writer.WriteLine("2");
        writer.WriteLine("ENTITIES");

        // 绘制路径实体
        WritePathEntities(writer, path);

        // 文件结尾
        writer.WriteLine("0");
        writer.WriteLine("ENDSEC");
        writer.WriteLine("0");
        writer.WriteLine("EOF");

        return true;
    }
    catch (Exception ex)
    {
        throw new ExportException($"DXF导出失败: {ex.Message}", ex);
    }
}

🔥 实战应用场景

🏭 工业应用实例

这套系统已成功应用于：

CNC数控加工：路径规划和G代码生成
激光切割：复杂图形的路径优化
3D打印：打印路径可视化和编辑
机器人导航：路径规划和轨迹优化

💡 扩展功能建议

C#
// 路径优化算法
public static class PathOptimizer
{
    /// <summary>
    /// 道格拉斯-普克算法简化路径
    /// </summary>
    public static List<PathPoint> SimplifyPath(List<PathPoint> points, float tolerance)
    {
        if (points.Count < 3) return points;

        // 实现道格拉斯-普克算法
        return DouglasPeucker(points, 0, points.Count - 1, tolerance);
    }
}

// 碰撞检测
public static class CollisionDetector
{
    /// <summary>
    /// 检查路径是否与障碍物碰撞
    /// </summary>
    public static bool CheckPathCollision(IndustrialPath path, List<SKRect> obstacles)
    {
        var pathBounds = path.CreateSKPath().Bounds;

        return obstacles.Any(obstacle =>
            SKRect.Intersect(pathBounds, obstacle) != SKRect.Empty);
    }
}

⚠️ 常见坑点提醒

🚨 SkiaSharp使用注意事项

内存泄漏：务必正确释放SKPath、SKPaint等资源
坐标系统：注意SkiaSharp的坐标原点在左上角
线程安全：SkiaSharp对象不是线程安全的
性能监控：大量路径点时要注意渲染性能

💊 解决方案

C#
// 正确的资源管理
using (var paint = new SKPaint())
using (var path = new SKPath())
{
    // 绘制操作
    canvas.DrawPath(path, paint);
} // 自动释放资源

// 线程安全的画布更新
private void SafeUpdateCanvas()
{
    if (InvokeRequired)
    {
        Invoke(new Action(() => skCanvas.Invalidate()));
    }
    else
    {
        skCanvas.Invalidate();
    }
}

✨ 总结与展望

🎯 核心要点总结

SkiaSharp + WinForms 是工业级绘图应用的完美组合，性能优异且开发效率高
模块化设计 让代码更易维护，路径算法、UI界面、导出功能完全解耦
工业标准格式 支持让软件具备真正的商业价值，可直接用于生产环境

🚀 进阶学习建议

深入学习SkiaSharp的高级特性：着色器、路径效果、图像处理
研究工业控制协议：Modbus、Ethernet/IP等
掌握更多CAD格式：STEP、IGES等三维格式

💬 互动交流

你在开发图形应用时遇到过什么性能瓶颈？欢迎在评论区分享你的经验和遇到的问题。

如果这篇文章对你有帮助，请转发给更多需要的同行！让我们一起推动C#在工业软件领域的发展。

关注我，获取更多C#实战干货和工业软件开发技巧！

目录
