作为一名.NET开发者，你是否曾为串口通信的稳定性问题而头疼？设备连接不稳定、数据丢失、界面卡顿...这些都是工业软件开发中的常见痛点。

今天，我将通过一个完整的串口通信解决方案，带你彻底搞定C#串口编程的所有技术难点。这套方案已在多个工业项目中验证，具备异步处理、缓冲优化、连接管理等企业级特性。

🎯 核心问题分析

传统串口编程的三大痛点

1. 连接状态管理混乱

C#
// 错误示例：状态管理不一致
if (serialPort.IsOpen) // 这里可能抛异常
{
    serialPort.Write(data); // 写入时端口可能已断开
}

2. 数据接收不完整

C#
// 错误示例：可能丢失数据
private void DataReceived(object sender, SerialDataReceivedEventArgs e)
{
    string data = serialPort.ReadExisting(); // 可能读取不完整
}

3. UI线程阻塞

C#
// 错误示例：同步操作阻塞界面
serialPort.Write(data); // 可能导致界面卡顿

💡 企业级解决方案设计

🏗️ 架构设计思路

我们的解决方案采用三层架构：

配置层：SerialPortConfig - 统一管理连接参数
处理层：OptimizedSerialPortHandler - 核心通信逻辑
界面层：Form1 - 用户交互和状态展示

🔧 核心代码实现

📋 1. 配置管理类

C#
public class SerialPortConfig
{
    public string PortName { get; set; }
    public int BaudRate { get; set; }
    public Parity Parity { get; set; }
    public int DataBits { get; set; }
    public StopBits StopBits { get; set; }
    public int ReadBufferSize { get; set; } = 4096;
    public int WriteBufferSize { get; set; } = 4096;
    public int ReadTimeout { get; set; } = 500;
    public int WriteTimeout { get; set; } = 500;
}

设计亮点：

默认值设置合理（4KB缓冲区）
支持完整的串口参数配置
便于后期扩展和维护

🎯 2. 连接状态管理

C#
private bool _isConnected = false;
private readonly object _lockObject = new object();

public bool IsConnected => _isConnected && (_serialPort?.IsOpen ?? false);

public async Task<bool> ConnectAsync(SerialPortConfig config)
{
    try
    {
        lock (_lockObject)
        {
            if (_serialPort?.IsOpen == true)
            {
                _serialPort.Close();
                _isConnected = false;
            }

            _serialPort = new SerialPort(config.PortName, config.BaudRate,
                config.Parity, config.DataBits, config.StopBits)
            {
                ReadBufferSize = config.ReadBufferSize,
                WriteBufferSize = config.WriteBufferSize,
                ReadTimeout = config.ReadTimeout,
                WriteTimeout = config.WriteTimeout
            };
        }

        await Task.Run(() => _serialPort.Open());
        _isConnected = true;
        return true;
    }
    catch (Exception ex)
    {
        _isConnected = false;
        ErrorOccurred?.Invoke($"连接失败: {ex.Message}");
        return false;
    }
}

技术要点：

✅ 双重状态检查（_isConnected + IsOpen）
✅ 线程安全的锁机制
✅ 异步连接避免UI阻塞
✅ 完善的异常处理

🚄 3. 异步数据发送

C#
// 同步发送 - 适用于小数据量
public void SendData(byte[] data)
{
    if (!IsConnected) return;

    try
    {
        lock (_lockObject)
        {
            if (_serialPort.IsOpen)
            {
                _serialPort.Write(data, 0, data.Length);
            }
        }
    }
    catch (TimeoutException ex)
    {
        ErrorOccurred?.Invoke($"发送超时: {ex.Message}");
    }
}

// 异步发送 - 适用于大数据量或高频发送
public async Task<bool> SendDataAsync(byte[] data, int timeoutMilliseconds = 1000)
{
    if (!IsConnected) return false;

    var timeoutCts = new CancellationTokenSource(timeoutMilliseconds);

    try
    {
        await Task.Run(() =>
        {
            lock (_lockObject)
            {
                if (_serialPort.IsOpen)
                {
                    _serialPort.Write(data, 0, data.Length);
                }
            }
        }, timeoutCts.Token);

        return true;
    }
    catch (OperationCanceledException)
    {
        ErrorOccurred?.Invoke("发送操作超时");
        return false;
    }
}

📥 4. 优化的数据接收

C#
private async void SerialPort_DataReceived(object sender, SerialDataReceivedEventArgs e)
{
    try
    {
        byte[] data = await ReadDataAsync();
        if (data.Length > 0)
        {
            DataReceived?.Invoke(data);
        }
    }
    catch (Exception ex)
    {
        ErrorOccurred?.Invoke($"数据接收异常: {ex.Message}");
    }
}

private async Task<byte[]> ReadDataAsync()
{
    using (var ms = new MemoryStream())
    {
        try
        {
            int bytesRead;
            do
            {
                bytesRead = await _serialPort.BaseStream.ReadAsync(
                    _receiveBuffer, 0, _receiveBuffer.Length);
                if (bytesRead > 0)
                {
                    ms.Write(_receiveBuffer, 0, bytesRead);
                }
            } while (bytesRead > 0 && _serialPort.BytesToRead > 0);

            return ms.ToArray();
        }
        catch (Exception ex)
        {
            ErrorOccurred?.Invoke($"读取数据失败: {ex.Message}");
            return new byte[0];
        }
    }
}

核心优势：

🎯 内存流缓冲：避免数据分片丢失
🎯 循环读取：确保获取完整数据包
🎯 异步处理：不阻塞事件线程

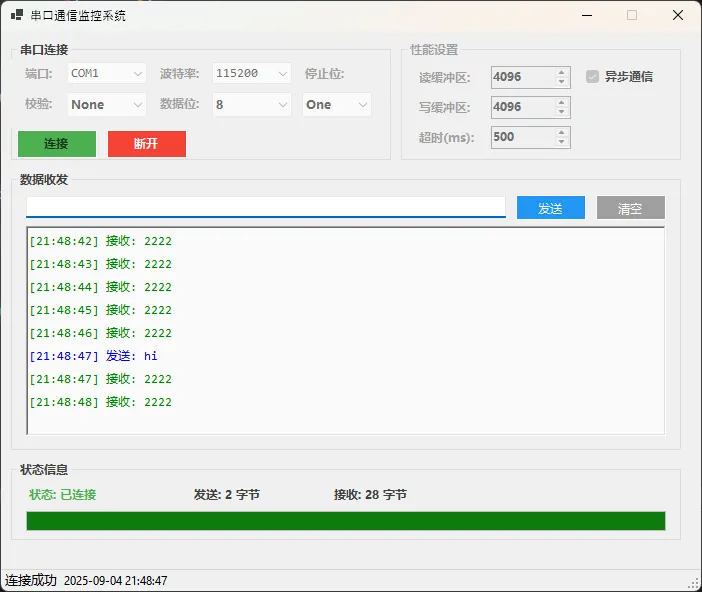

🖥️ UI交互优化

🔄 连接状态实时反馈

C#
private void UpdateConnectionStatus(bool isConnected)
{
    if (isConnected)
    {
        lblStatus.Text = "状态: 已连接";
        lblStatus.ForeColor = Color.FromArgb(76, 175, 80); // 绿色

        pnlConfig.Enabled = false;  // 禁用配置面板
        btnConnect.Enabled = false;
        btnDisconnect.Enabled = true;
    }
    else
    {
        lblStatus.Text = "状态: 未连接";
        lblStatus.ForeColor = Color.FromArgb(244, 67, 54); // 红色

        pnlConfig.Enabled = true;   // 启用配置面板
        btnConnect.Enabled = true;
        btnDisconnect.Enabled = false;
    }
}

📊 数据统计展示

C#
private void OnDataReceived(byte[] data)
{
    if (InvokeRequired)
    {
        Invoke(new Action<byte[]>(OnDataReceived), data);
        return;
    }

    _bytesReceived += data.Length;
    lblBytesReceived.Text = $"接收: {_bytesReceived} 字节";

    string text = Encoding.UTF8.GetString(data);
    rtbReceived.SelectionColor = Color.Green;
    rtbReceived.AppendText($"[{DateTime.Now:HH:mm:ss}] 接收: {text}\n");
    rtbReceived.ScrollToCaret();
}

完整代码

C#
using System;
using System.Collections.Generic;
using System.IO.Ports;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppSerialPortBuffer
{
    public class SerialPortConfig
    {
        public string PortName { get; set; }
        public int BaudRate { get; set; }
        public Parity Parity { get; set; }
        public int DataBits { get; set; }
        public StopBits StopBits { get; set; }
        public int ReadBufferSize { get; set; } = 4096;
        public int WriteBufferSize { get; set; } = 4096;
        public int ReadTimeout { get; set; } = 500;
        public int WriteTimeout { get; set; } = 500;
    }
}

C#
using System;
using System.Collections.Generic;
using System.IO.Ports;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppSerialPortBuffer
{
    public class OptimizedSerialPortHandler : IDisposable
    {
        private SerialPort _serialPort;
        private CancellationTokenSource _cancellationTokenSource;
        private byte[] _receiveBuffer;
        private bool _disposed = false;
        private bool _isConnected = false;
        private readonly object _lockObject = new object();

        public event Action<byte[]> DataReceived;
        public event Action<string> ErrorOccurred;

        public bool IsConnected => _isConnected && (_serialPort?.IsOpen ?? false);

        public async Task<bool> ConnectAsync(SerialPortConfig config)
        {
            try
            {
                lock (_lockObject)
                {
                    if (_serialPort?.IsOpen == true)
                    {
                        _serialPort.Close();
                        _isConnected = false;
                    }

                    _serialPort = new SerialPort(config.PortName, config.BaudRate, config.Parity, config.DataBits, config.StopBits)
                    {
                        ReadBufferSize = config.ReadBufferSize,
                        WriteBufferSize = config.WriteBufferSize,
                        ReadTimeout = config.ReadTimeout,
                        WriteTimeout = config.WriteTimeout,
                        Handshake = Handshake.None
                    };

                    _receiveBuffer = new byte[config.ReadBufferSize];

                    _serialPort.DataReceived += SerialPort_DataReceived;
                    _serialPort.ErrorReceived += SerialPort_ErrorReceived;
                }

                await Task.Run(() => _serialPort.Open());

                _cancellationTokenSource = new CancellationTokenSource();
                _isConnected = true; // 连接成功后设置标志

                return true;
            }
            catch (Exception ex)
            {
                _isConnected = false; // 连接失败时确保标志为false
                ErrorOccurred?.Invoke($"连接失败: {ex.Message}");
                return false;
            }
        }


        public void Disconnect()
        {
            try
            {
                _isConnected = false; // 立即设置连接状态为false

                _cancellationTokenSource?.Cancel();

                lock (_lockObject)
                {
                    if (_serialPort?.IsOpen == true)
                    {
                        _serialPort.DataReceived -= SerialPort_DataReceived;
                        _serialPort.ErrorReceived -= SerialPort_ErrorReceived;
                        _serialPort.Close();
                    }
                }
            }
            catch (Exception ex)
            {
                ErrorOccurred?.Invoke($"断开连接时出错: {ex.Message}");
            }
            finally
            {
                _isConnected = false; // 确保在任何情况下都设置为false
            }
        }

        // 同步发送
        public void SendData(byte[] data)
        {
            if (!IsConnected) return;

            try
            {
                lock (_lockObject)
                {
                    if (_serialPort.IsOpen)
                    {
                        _serialPort.Write(data, 0, data.Length);
                    }
                }
            }
            catch (TimeoutException ex)
            {
                ErrorOccurred?.Invoke($"发送超时: {ex.Message}");
            }
            catch (Exception ex)
            {
                ErrorOccurred?.Invoke($"发送失败: {ex.Message}");
            }
        }

        // 异步发送
        public async Task<bool> SendDataAsync(byte[] data, int timeoutMilliseconds = 1000)
        {
            if (!IsConnected) return false;

            var timeoutCts = new CancellationTokenSource(timeoutMilliseconds);

            try
            {
                await Task.Run(() =>
                {
                    lock (_lockObject)
                    {
                        if (_serialPort.IsOpen)
                        {
                            _serialPort.Write(data, 0, data.Length);
                        }
                    }
                }, timeoutCts.Token);

                return true;
            }
            catch (OperationCanceledException)
            {
                ErrorOccurred?.Invoke("发送操作超时");
                return false;
            }
            catch (Exception ex)
            {
                ErrorOccurred?.Invoke($"异步发送失败: {ex.Message}");
                return false;
            }
        }

        private async void SerialPort_DataReceived(object sender, SerialDataReceivedEventArgs e)
        {
            try
            {
                // 异步读取数据，提高响应速度
                byte[] data = await ReadDataAsync();
                if (data.Length > 0)
                {
                    DataReceived?.Invoke(data);
                }
            }
            catch (Exception ex)
            {
                ErrorOccurred?.Invoke($"数据接收异常: {ex.Message}");
            }
        }

        // 异步读取数据 - 使用内存流优化
        private async Task<byte[]> ReadDataAsync()
        {
            using (var ms = new MemoryStream())
            {
                try
                {
                    int bytesRead;
                    do
                    {
                        bytesRead = await _serialPort.BaseStream.ReadAsync(_receiveBuffer, 0, _receiveBuffer.Length);
                        if (bytesRead > 0)
                        {
                            ms.Write(_receiveBuffer, 0, bytesRead);
                        }
                    } while (bytesRead > 0 && _serialPort.BytesToRead > 0);

                    return ms.ToArray();
                }
                catch (Exception ex)
                {
                    ErrorOccurred?.Invoke($"读取数据失败: {ex.Message}");
                    return new byte[0];
                }
            }
        }

        private void SerialPort_ErrorReceived(object sender, SerialErrorReceivedEventArgs e)
        {
            ErrorOccurred?.Invoke($"串口错误: {e.EventType}");
        }

        public void Dispose()
        {
            Dispose(true);
            GC.SuppressFinalize(this);
        }

        protected virtual void Dispose(bool disposing)
        {
            if (!_disposed)
            {
                if (disposing)
                {
                    // 释放托管资源
                    _cancellationTokenSource?.Cancel();
                    _cancellationTokenSource?.Dispose();
                    _serialPort?.Close();
                    _serialPort?.Dispose();
                }

                // 释放非托管资源
                _receiveBuffer = null;
                _disposed = true;
            }
        }
    }
}

C#
using System.IO.Ports;
using System.Text;
using Timer = System.Windows.Forms.Timer;

namespace AppSerialPortBuffer
{
    public partial class Form1 : Form
    {
        private OptimizedSerialPortHandler _serialHandler;
        private Timer _statusTimer;
        private long _bytesSent = 0;
        private long _bytesReceived = 0;
        public Form1()
        {
            InitializeComponent();
            InitializeApplication();
        }
        private void InitializeApplication()
        {
            _serialHandler = new OptimizedSerialPortHandler();
            _serialHandler.DataReceived += OnDataReceived;
            _serialHandler.ErrorOccurred += OnErrorOccurred;

            // 初始化端口列表
            RefreshPortList();

            // 初始化波特率
            cmbBaudRate.Items.AddRange(new object[] { 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 });
            cmbBaudRate.SelectedIndex = 4; // 115200

            // 初始化校验位
            foreach (Parity parity in Enum.GetValues(typeof(Parity)))
                cmbParity.Items.Add(parity);
            cmbParity.SelectedIndex = 0; // None

            // 初始化数据位
            cmbDataBits.Items.AddRange(new object[] { 7, 8 });
            cmbDataBits.SelectedIndex = 1; // 8

            // 初始化停止位
            foreach (StopBits stopBits in Enum.GetValues(typeof(StopBits)))
                cmbStopBits.Items.Add(stopBits);
            cmbStopBits.SelectedIndex = 1; // One

            btnConnect.Enabled = true;
            btnDisconnect.Enabled = false;

            // 状态定时器
            _statusTimer = new Timer();
            _statusTimer.Interval = 1000;
            _statusTimer.Tick += StatusTimer_Tick;
            _statusTimer.Start();
        }

        private void RefreshPortList()
        {
            cmbPort.Items.Clear();
            cmbPort.Items.AddRange(SerialPort.GetPortNames());
            if (cmbPort.Items.Count > 0)
                cmbPort.SelectedIndex = 0;
        }

        private async void BtnConnect_Click(object sender, EventArgs e)
        {
            if (cmbPort.SelectedItem == null) return;

            try
            {
                var config = new SerialPortConfig
                {
                    PortName = cmbPort.SelectedItem.ToString(),
                    BaudRate = (int)cmbBaudRate.SelectedItem,
                    Parity = (Parity)cmbParity.SelectedItem,
                    DataBits = (int)cmbDataBits.SelectedItem,
                    StopBits = (StopBits)cmbStopBits.SelectedItem,
                    ReadBufferSize = (int)nudReadBuffer.Value,
                    WriteBufferSize = (int)nudWriteBuffer.Value,
                    ReadTimeout = (int)nudTimeout.Value,
                    WriteTimeout = (int)nudTimeout.Value
                };

                pgbConnection.Style = ProgressBarStyle.Marquee;
                tsslStatus.Text = "正在连接...";

                // 连接期间禁用连接按钮
                btnConnect.Enabled = false;

                bool success = await _serialHandler.ConnectAsync(config);

                pgbConnection.Style = ProgressBarStyle.Continuous;
                pgbConnection.Value = success ? 100 : 0;

                if (success)
                {
                    UpdateConnectionStatus(true);
                    tsslStatus.Text = "连接成功";
                }
                else
                {
                    UpdateConnectionStatus(false);
                    tsslStatus.Text = "连接失败";
                    MessageBox.Show("连接失败，请检查端口设置！", "错误",
                        MessageBoxButtons.OK, MessageBoxIcon.Error);
                }
            }
            catch (Exception ex)
            {
                UpdateConnectionStatus(false);
                tsslStatus.Text = "连接失败";
                MessageBox.Show("连接失败，请检查端口设置！", "错误",
                    MessageBoxButtons.OK, MessageBoxIcon.Error);
            }
        }

        private void BtnDisconnect_Click(object sender, EventArgs e)
        {
            try
            {
                // 先禁用按钮，防止重复点击
                btnDisconnect.Enabled = false;

                _serialHandler.Disconnect();

                // 强制更新UI状态
                UpdateConnectionStatus(false);

                tsslStatus.Text = "已断开连接";
            }
            catch (Exception ex)
            {
                MessageBox.Show($"断开连接时发生错误: {ex.Message}", "错误",
                    MessageBoxButtons.OK, MessageBoxIcon.Warning);

                // 即使出错也要更新状态
                UpdateConnectionStatus(false);
            }
        }

        private void UpdateConnectionStatus(bool isConnected)
        {
            if (isConnected)
            {
                lblStatus.Text = "状态: 已连接";
                lblStatus.ForeColor = Color.FromArgb(76, 175, 80);

                pnlConfig.Enabled = false;
                grpSettings.Enabled = false;
                btnConnect.Enabled = false;
                btnDisconnect.Enabled = true;
                pgbConnection.Value = 100;
            }
            else
            {
                lblStatus.Text = "状态: 未连接";
                lblStatus.ForeColor = Color.FromArgb(244, 67, 54);

                pnlConfig.Enabled = true;
                grpSettings.Enabled = true;
                btnConnect.Enabled = true;
                btnDisconnect.Enabled = false;
                pgbConnection.Value = 0;
            }
        }

        private async void BtnSend_Click(object sender, EventArgs e)
        {
            if (!_serialHandler.IsConnected || string.IsNullOrEmpty(txtSend.Text))
                return;

            try
            {
                byte[] data = Encoding.UTF8.GetBytes(txtSend.Text);

                if (chkAsync.Checked)
                {
                    await _serialHandler.SendDataAsync(data);
                }
                else
                {
                    _serialHandler.SendData(data);
                }

                _bytesSent += data.Length;
                lblBytesSent.Text = $"发送: {_bytesSent} 字节";

                rtbReceived.SelectionColor = Color.Blue;
                rtbReceived.AppendText($"[{DateTime.Now:HH:mm:ss}] 发送: {txtSend.Text}\n");
                rtbReceived.ScrollToCaret();

                txtSend.Clear();
            }
            catch (Exception ex)
            {
                MessageBox.Show($"发送失败: {ex.Message}", "错误",
                    MessageBoxButtons.OK, MessageBoxIcon.Error);
            }
        }

        private void BtnClear_Click(object sender, EventArgs e)
        {
            rtbReceived.Clear();
            _bytesSent = 0;
            _bytesReceived = 0;
            lblBytesSent.Text = "发送: 0 字节";
            lblBytesReceived.Text = "接收: 0 字节";
        }

        private void TxtSend_KeyDown(object sender, KeyEventArgs e)
        {
            if (e.KeyCode == Keys.Enter)
            {
                BtnSend_Click(sender, e);
                e.Handled = true;
            }
        }

        private void OnDataReceived(byte[] data)
        {
            if (InvokeRequired)
            {
                Invoke(new Action<byte[]>(OnDataReceived), data);
                return;
            }

            _bytesReceived += data.Length;
            lblBytesReceived.Text = $"接收: {_bytesReceived} 字节";

            string text = Encoding.UTF8.GetString(data);
            rtbReceived.SelectionColor = Color.Green;
            rtbReceived.AppendText($"[{DateTime.Now:HH:mm:ss}] 接收: {text}\n");
            rtbReceived.ScrollToCaret();
        }

        private void OnErrorOccurred(string error)
        {
            if (InvokeRequired)
            {
                Invoke(new Action<string>(OnErrorOccurred), error);
                return;
            }

            rtbReceived.SelectionColor = Color.Red;
            rtbReceived.AppendText($"[{DateTime.Now:HH:mm:ss}] 错误: {error}\n");
            rtbReceived.ScrollToCaret();
        }

        private void StatusTimer_Tick(object sender, EventArgs e)
        {
            tsslTime.Text = DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss");
        }

        protected override void OnFormClosing(FormClosingEventArgs e)
        {
            _serialHandler?.Disconnect();
            _statusTimer?.Stop();
            base.OnFormClosing(e);
        }
    }
}

⚠️ 常见坑点提醒

🚨 1. 资源释放问题

C#
// ❌ 错误：忘记释放资源
~OptimizedSerialPortHandler()
{
    // 析构函数中不应该访问托管资源
    _serialPort?.Close(); // 可能引发异常
}

// ✅ 正确：标准Dispose模式
public void Dispose()
{
    Dispose(true);
    GC.SuppressFinalize(this);
}

protected virtual void Dispose(bool disposing)
{
    if (!_disposed && disposing)
    {
        _cancellationTokenSource?.Cancel();
        _serialPort?.Close();
        _serialPort?.Dispose();
    }
    _disposed = true;
}

🚨 2. 跨线程操作

C#
// ❌ 错误：直接在数据事件中更新UI
private void SerialPort_DataReceived(object sender, SerialDataReceivedEventArgs e)
{
    textBox1.Text = serialPort.ReadExisting(); // 跨线程异常
}

// ✅ 正确：检查并使用Invoke
private void OnDataReceived(byte[] data)
{
    if (InvokeRequired)
    {
        Invoke(new Action<byte[]>(OnDataReceived), data);
        return;
    }
    // 安全更新UI
}

🚨 3. 连接检查时机

C#
// ❌ 错误：只检查IsOpen
if (serialPort.IsOpen)
{
    serialPort.Write(data); // 可能在写入前断开
}

// ✅ 正确：双重检查 + 异常处理
public bool IsConnected => _isConnected && (_serialPort?.IsOpen ?? false);

if (IsConnected)
{
    try
    {
        lock (_lockObject)
        {
            if (_serialPort.IsOpen)
            {
                _serialPort.Write(data, 0, data.Length);
            }
        }
    }
    catch (Exception ex)
    {
        // 处理异常并更新状态
    }
}

🎯 实际应用场景

📱 工业设备监控

应用：PLC数据采集、传感器读数
优势：稳定的长时间运行，完整的数据接收

🔧 嵌入式开发调试

应用：单片机程序调试、固件升级
优势：高效的双向通信，实时状态反馈

🏭 自动化测试系统

应用：设备功能测试、生产线检测
优势：批量操作支持，详细的日志记录

📈 性能优化建议

🎯 缓冲区设置

C#
// 根据数据特点调整缓冲区大小
public SerialPortConfig GetOptimalConfig(DataPattern pattern)
{
    return pattern switch
    {
        DataPattern.HighFrequency => new() { ReadBufferSize = 8192 },
        DataPattern.LargePacket => new() { ReadBufferSize = 16384 },
        DataPattern.Normal => new() { ReadBufferSize = 4096 },
        _ => new()
    };
}

🎯 内存管理

使用 MemoryStream 代替字符串拼接
及时释放不用的字节数组
考虑使用对象池减少GC压力

🔥 总结与展望

通过本文的完整方案，我们解决了C#串口通信的三大核心问题：

🎯 连接管理：双重状态检查 + 线程安全机制
🎯 数据完整性：内存流缓冲 + 循环读取策略
🎯 性能优化：异步处理 + 合理的资源管理

这套解决方案已在多个工业项目中验证，具备良好的稳定性和扩展性。无论是设备调试还是生产环境，都能提供可靠的通信保障。

技术成长建议：

深入理解.NET的异步编程模型
掌握多线程和线程安全的最佳实践
关注工业通信协议（Modbus、Profinet等）

💬 互动话题：

你在串口通信开发中遇到过哪些棘手问题？
对于高并发的串口设备管理，你有什么优化思路？

觉得这篇技术总结对你有帮助吗？请转发给更多需要的同行，让我们一起提升C#开发技能！

🔖 收藏这篇文章，随时查阅这套完整的串口通信解决方案！

目录
