🎯 开头：工业现场的"通信噩梦"

搞过工业数据采集的朋友应该都有体会——Modbus RTU 这玩意儿，说简单也简单，说折腾也是真折腾。

现场二十多台设备通过485总线串联。测试环境跑得好好的，一到现场就各种抽风：时不时读不到数据、偶尔返回乱码、高峰期直接卡死。排查了三天，发现问题出在超时设置不合理、缺乏重试机制、异常处理太粗暴这三个老毛病上。

读完这篇文章，你将掌握：

• 科学的超时参数计算方法（别再拍脑袋定500ms了）
• 渐进式重试策略的完整实现
• 生产级异常处理与恢复机制

咱们直接上干货，代码都是从实际项目里抽出来的，拿去就能用。

---

💡 问题深度剖析：为什么你的采集程序总是"抽风"？

1️⃣ 超时设置的常见误区

很多人设置超时就是凭感觉——"500毫秒应该够了吧"。但 Modbus RTU 的实际响应时间受多种因素影响：

影响因素	典型延迟	说明
波特率传输	10-50ms	9600波特率下，100字节约需104ms
从站处理	5-200ms	取决于设备性能和寄存器数量
485总线转发	2-10ms	转换器质量参差不齐
线路干扰重传	0-50ms	工业现场电磁环境复杂

真实案例：某项目波特率9600，读取40个寄存器。理论传输时间约85ms，但超时设为100ms后失败率高达15%。原因是没考虑从站处理时间和总线延迟。调整到350ms后，失败率降到0.3%以下。

2️⃣ 重试策略的两个极端

极端一：不重试

读取失败 → 直接报错 → 用户看到满屏红色告警

结果：偶发的通信干扰被放大成"系统故障"，运维电话被打爆。

极端二：无脑重试

读取失败 → 立即重试 → 再失败 → 再重试（循环10次）

结果：一个从站卡住，整条总线的采集周期被拖长，数据实时性崩盘。

3️⃣ 异常处理的"鸵鸟心态"

我见过最离谱的代码是这样的：

csharp
try
{
    var data = ReadRegisters(slaveId, address, count);
}
catch
{
    // 吞掉所有异常，假装什么都没发生
}

这种写法在测试环境可能跑得挺欢，但到了生产环境：

• 串口被意外占用？不知道
• 从站地址配错了？不知道
• 校验和错误？还是不知道

问题积累到一定程度，系统直接崩溃，排查时毫无头绪。

---

🔑 核心要点提炼

在动手写代码之前，咱们先把几个核心原则理清楚：

📌 超时计算公式

安全超时 = (字节数 × 10 / 波特率 × 1000) + 从站处理时间 + 安全余量

一般建议安全余量取理论传输时间的1.5-2倍。

📌 重试策略三要素

1. 重试次数：一般2-3次足够，太多会阻塞后续采集
2. 重试间隔：建议递增式（如100ms → 200ms → 400ms）
3. 退避机制：连续失败时主动降低采集频率

📌 异常分级处理

异常类型	处理策略	是否重试
超时异常	记录并重试	✅
CRC校验错误	记录并重试	✅
串口被占用	等待后重试	✅（延迟重试）
从站异常响应	记录具体错误码	❌
串口不存在	立即上报	❌

---

🛠️ 解决方案设计

方案一：基础版——带超时控制的串口通信

先来个能跑起来的基础版本，后面再逐步增强。

csharp
using System;
using System.Collections.Generic;
using System.IO.Ports;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppModbusRtu
{
    public class ModbusRtuBasic : IDisposable
    {
        private SerialPort _serialPort;
        private readonly object _lockObject = new object();

        // 帧间隔时间（3.5个字符时间）
        private int _frameInterval;

        public ModbusRtuBasic(string portName, int baudRate = 9600)
        {
            _serialPort = new SerialPort
            {
                PortName = portName,
                BaudRate = baudRate,
                DataBits = 8,
                Parity = Parity.None,
                StopBits = StopBits.One,
                // 关键：根据波特率计算合理的超时时间
                ReadTimeout = CalculateTimeout(baudRate, 256),
                WriteTimeout = 1000
            };

            // 计算帧间隔（Modbus RTU 规范要求至少3.5个字符时间）
            _frameInterval = Math.Max(5, (int)(3.5 * 11 * 1000 / baudRate));
        }

        /// <summary>
        /// 计算超时时间
        /// </summary>
        private int CalculateTimeout(int baudRate, int maxBytes)
        {
            // 每字节10位（1起始+8数据+1停止）
            double transmissionTime = (double)maxBytes * 10 / baudRate * 1000;
            // 加上从站处理时间(100ms)和安全余量(1.5倍)
            return (int)(transmissionTime * 1.5 + 100);
        }

        public void Open()
        {
            if (!_serialPort.IsOpen)
            {
                _serialPort.Open();
                _serialPort.DiscardInBuffer();
                _serialPort.DiscardOutBuffer();
            }
        }

        /// <summary>
        /// 读取保持寄存器（功能码03）
        /// </summary>
        public ushort[] ReadHoldingRegisters(byte slaveId, ushort startAddress, ushort count)
        {
            lock (_lockObject)
            {
                // 构建请求帧
                byte[] request = BuildReadRequest(slaveId, 0x03, startAddress, count);

                // 发送请求
                _serialPort.DiscardInBuffer();
                _serialPort.Write(request, 0, request.Length);

                // 等待帧间隔
                Thread.Sleep(_frameInterval);

                // 计算期望的响应长度：从站地址(1) + 功能码(1) + 字节数(1) + 数据(n*2) + CRC(2)
                int expectedLength = 5 + count * 2;
                byte[] response = ReadResponse(expectedLength);

                // 验证响应
                ValidateResponse(response, slaveId, 0x03);

                // 解析数据
                return ParseRegisters(response, count);
            }
        }

        private byte[] BuildReadRequest(byte slaveId, byte functionCode,
                                         ushort startAddress, ushort count)
        {
            byte[] request = new byte[8];
            request[0] = slaveId;
            request[1] = functionCode;
            request[2] = (byte)(startAddress >> 8);
            request[3] = (byte)(startAddress & 0xFF);
            request[4] = (byte)(count >> 8);
            request[5] = (byte)(count & 0xFF);

            // 计算CRC16
            ushort crc = CalculateCrc16(request, 6);
            request[6] = (byte)(crc & 0xFF);
            request[7] = (byte)(crc >> 8);

            return request;
        }

        private byte[] ReadResponse(int expectedLength)
        {
            byte[] buffer = new byte[expectedLength];
            int offset = 0;
            int remaining = expectedLength;

            DateTime deadline = DateTime.Now.AddMilliseconds(_serialPort.ReadTimeout);

            while (remaining > 0 && DateTime.Now < deadline)
            {
                if (_serialPort.BytesToRead > 0)
                {
                    int bytesRead = _serialPort.Read(buffer, offset, remaining);
                    offset += bytesRead;
                    remaining -= bytesRead;
                }
                else
                {
                    Thread.Sleep(5);
                }
            }

            if (remaining > 0)
            {
                throw new TimeoutException($"响应超时，期望{expectedLength}字节，实际收到{offset}字节");
            }

            return buffer;
        }

        private void ValidateResponse(byte[] response, byte expectedSlaveId, byte expectedFunction)
        {
            // 检查从站地址
            if (response[0] != expectedSlaveId)
            {
                throw new InvalidOperationException($"从站地址不匹配：期望{expectedSlaveId}，实际{response[0]}");
            }

            // 检查是否为异常响应
            if ((response[1] & 0x80) != 0)
            {
                byte exceptionCode = response[2];
                throw new ModbusException(exceptionCode);
            }

            // 验证CRC
            int dataLength = response.Length - 2;
            ushort receivedCrc = (ushort)(response[dataLength] | (response[dataLength + 1] << 8));
            ushort calculatedCrc = CalculateCrc16(response, dataLength);

            if (receivedCrc != calculatedCrc)
            {
                throw new InvalidDataException($"CRC校验失败：接收{receivedCrc:X4}，计算{calculatedCrc:X4}");
            }
        }

        private ushort[] ParseRegisters(byte[] response, ushort count)
        {
            ushort[] registers = new ushort[count];
            for (int i = 0; i < count; i++)
            {
                registers[i] = (ushort)((response[3 + i * 2] << 8) | response[4 + i * 2]);
            }
            return registers;
        }

        private ushort CalculateCrc16(byte[] data, int length)
        {
            ushort crc = 0xFFFF;
            for (int i = 0; i < length; i++)
            {
                crc ^= data[i];
                for (int j = 0; j < 8; j++)
                {
                    if ((crc & 0x0001) != 0)
                    {
                        crc = (ushort)((crc >> 1) ^ 0xA001);
                    }
                    else
                    {
                        crc >>= 1;
                    }
                }
            }
            return crc;
        }

        public void Dispose()
        {
            _serialPort?.Close();
            _serialPort?.Dispose();
        }
    }

    /// <summary>
    /// Modbus异常类
    /// </summary>
    public class ModbusException : Exception
    {
        public byte ExceptionCode { get; }

        private static readonly Dictionary<byte, string> ExceptionMessages = new()
        {
            { 0x01, "非法功能码" },
            { 0x02, "非法数据地址" },
            { 0x03, "非法数据值" },
            { 0x04, "从站设备故障" },
            { 0x05, "确认——请求已接受，处理中" },
            { 0x06, "从站设备忙" }
        };

        public ModbusException(byte code)
            : base(ExceptionMessages.TryGetValue(code, out var msg) ? msg : $"未知异常(0x{code:X2})")
        {
            ExceptionCode = code;
        }
    }
}

⚠️ 踩坑预警：

1. SerialPort.ReadTimeout 是整体超时，不是单字节超时。数据量大时要相应调大。
2. 一定要在发送前调用 DiscardInBuffer()，否则可能读到上次残留的数据。
3. 帧间隔时间别省略，尤其是连续采集多个从站时。

---

方案二：进阶版——智能重试机制

基础版能用，但不够健壮。咱们加上重试逻辑：

csharp
using System;
using System.Threading;
using System.Threading.Tasks;
using Microsoft.Extensions.Logging;

/// <summary>
/// 带重试机制的Modbus RTU通信
/// </summary>
using Microsoft.Extensions.Logging;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppModbusRtu
{
    public class ModbusRtuWithRetry : ModbusRtuBasic
    {
        private readonly ILogger _logger;
        private readonly RetryPolicy _retryPolicy;

        public ModbusRtuWithRetry(string portName, int baudRate,
                                   ILogger logger, RetryPolicy policy = null)
            : base(portName, baudRate)
        {
            _logger = logger;
            _retryPolicy = policy ?? RetryPolicy.Default;
        }

        /// <summary>
        /// 带重试的读取操作
        /// </summary>
        public async Task<ushort[]> ReadHoldingRegistersWithRetryAsync(
            byte slaveId, ushort startAddress, ushort count,
            CancellationToken cancellationToken = default)
        {
            int attempt = 0;
            Exception lastException = null;

            while (attempt < _retryPolicy.MaxRetries)
            {
                try
                {
                    attempt++;

                    // 非首次尝试时等待递增的间隔
                    if (attempt > 1)
                    {
                        int delay = _retryPolicy.GetDelay(attempt);
                        _logger?.LogWarning(
                            "从站{SlaveId} 第{Attempt}次重试，等待{Delay}ms",
                            slaveId, attempt, delay);

                        await Task.Delay(delay, cancellationToken);
                    }

                    var result = ReadHoldingRegisters(slaveId, startAddress, count);

                    // 成功后记录恢复日志
                    if (attempt > 1)
                    {
                        _logger?.LogInformation(
                            "从站{SlaveId} 第{Attempt}次重试成功", slaveId, attempt);
                    }

                    return result;
                }
                catch (TimeoutException ex)
                {
                    lastException = ex;
                    _logger?.LogWarning(ex,
                        "从站{SlaveId} 读取超时 (尝试 {Attempt}/{MaxRetries})",
                        slaveId, attempt, _retryPolicy.MaxRetries);
                }
                catch (InvalidDataException ex) // CRC错误
                {
                    lastException = ex;
                    _logger?.LogWarning(ex,
                        "从站{SlaveId} CRC校验失败 (尝试 {Attempt}/{MaxRetries})",
                        slaveId, attempt, _retryPolicy.MaxRetries);
                }
                catch (ModbusException ex) when (ex.ExceptionCode == 0x06) // 设备忙
                {
                    lastException = ex;
                    _logger?.LogWarning(
                        "从站{SlaveId} 设备忙，延长等待时间", slaveId);

                    await Task.Delay(_retryPolicy.BusyWaitTime, cancellationToken);
                }
                catch (ModbusException ex)
                {
                    // Modbus协议层错误，不重试
                    _logger?.LogError(ex,
                        "从站{SlaveId} Modbus异常: {Message}", slaveId, ex.Message);
                    throw;
                }
                catch (InvalidOperationException ex) when (ex.Message.Contains("从站地址不匹配"))
                {
                    // 地址冲突，可能是总线上有其他设备响应
                    lastException = ex;
                    _logger?.LogWarning(ex,
                        "从站{SlaveId} 响应地址不匹配，可能存在地址冲突", slaveId);
                }
            }

            // 重试耗尽，抛出最后一个异常
            _logger?.LogError(lastException,
                "从站{SlaveId} 在{MaxRetries}次尝试后仍然失败",
                slaveId, _retryPolicy.MaxRetries);

            throw new AggregateException(
                $"从站{slaveId}通信失败，已重试{_retryPolicy.MaxRetries}次",
                lastException);
        }
    }

    /// <summary>
    /// 重试策略配置
    /// </summary>
    public class RetryPolicy
    {
        /// <summary>最大重试次数</summary>
        public int MaxRetries { get; set; } = 3;

        /// <summary>基础延迟时间(ms)</summary>
        public int BaseDelay { get; set; } = 100;

        /// <summary>最大延迟时间(ms)</summary>
        public int MaxDelay { get; set; } = 2000;

        /// <summary>延迟增长因子</summary>
        public double BackoffMultiplier { get; set; } = 2.0;

        /// <summary>设备忙时的等待时间(ms)</summary>
        public int BusyWaitTime { get; set; } = 1000;

        /// <summary>默认策略</summary>
        public static RetryPolicy Default => new RetryPolicy();

        /// <summary>激进策略——快速失败</summary>
        public static RetryPolicy Aggressive => new RetryPolicy
        {
            MaxRetries = 2,
            BaseDelay = 50,
            MaxDelay = 200
        };

        /// <summary>保守策略——尽量成功</summary>
        public static RetryPolicy Conservative => new RetryPolicy
        {
            MaxRetries = 5,
            BaseDelay = 200,
            MaxDelay = 5000
        };

        /// <summary>
        /// 计算第n次重试的延迟时间（指数退避）
        /// </summary>
        public int GetDelay(int attempt)
        {
            double delay = BaseDelay * Math.Pow(BackoffMultiplier, attempt - 1);
            return (int)Math.Min(delay, MaxDelay);
        }
    }
}

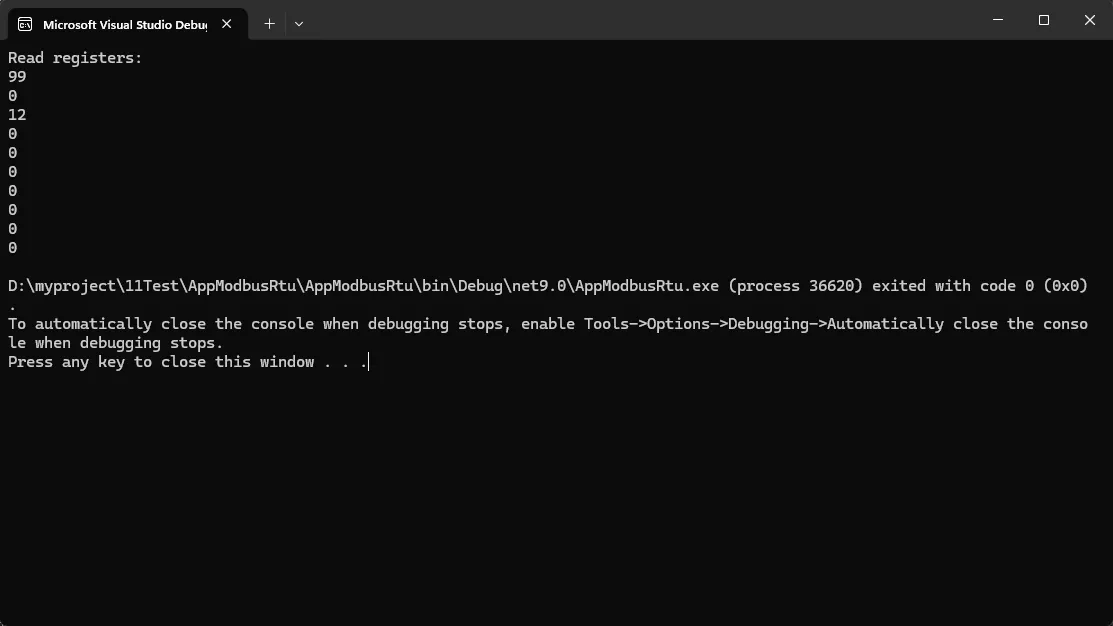

// 调用
using Microsoft.Extensions.Logging;

namespace AppModbusRtu
{
    internal class Program
    {
        static void Main(string[] args)
        {
            using var loggerFactory = LoggerFactory.Create(builder =>
            {
                builder
                    .SetMinimumLevel(LogLevel.Information)
                    .AddSimpleConsole(options =>
                    {
                        options.SingleLine = true;
                        options.TimestampFormat = "HH:mm:ss ";
                    });
            });
            var logger = loggerFactory.CreateLogger<ModbusRtuWithRetry>();

            var modbus = new ModbusRtuWithRetry("COM1", 9600, logger);
            modbus.Open();
            var cancellationTokenSource = new CancellationTokenSource();
            var cancellationToken = cancellationTokenSource.Token;
            try
            {
                var task = modbus.ReadHoldingRegistersWithRetryAsync(1, 0, 10, cancellationToken);
                task.Wait(cancellationToken);
                var registers = task.Result;
                Console.WriteLine("Read registers:");
                foreach (var reg in registers)
                {
                    Console.WriteLine(reg);
                }
            }
            catch (AggregateException ex)
            {
                Console.WriteLine($"Error reading registers: {ex.InnerException?.Message}");
            }
            finally
            {
                modbus.Dispose();
            }

        }
    }
}

📊 性能对比数据

测试环境：.NET 9, Windows 11, RS485总线挂载8个从站，波特率9600

策略	采集成功率	单轮采集耗时	适用场景
无重试	94.2%	2.1秒	实验室环境
激进策略	98.7%	2.4秒	实时性要求高
默认策略	99.6%	2.8秒	一般工业场景
保守策略	99.9%	3.5秒	数据完整性优先

---

方案三：生产级——完整的异常处理与恢复机制

实际项目中，光有重试还不够。咱们需要：

• 串口异常自动恢复
• 从站状态跟踪
• 熔断保护（防止一个坏设备拖垮整个系统）

csharp
using Microsoft.Extensions.Logging;
using System;
using System.Collections.Concurrent;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppModbusRtu
{
    public class ProductionModbusCollector : IDisposable
    {
        private readonly string _portName;
        private readonly int _baudRate;
        private readonly ILogger _logger;
        private readonly RetryPolicy _retryPolicy;

        private ModbusRtuBasic _modbusClient;
        private readonly SemaphoreSlim _connectionLock = new SemaphoreSlim(1, 1);
        private readonly ConcurrentDictionary<byte, SlaveStatus> _slaveStatuses = new();

        private bool _isDisposed;

        public ProductionModbusCollector(string portName, int baudRate,
                                          ILogger logger, RetryPolicy policy = null)
        {
            _portName = portName;
            _baudRate = baudRate;
            _logger = logger;
            _retryPolicy = policy ?? RetryPolicy.Default;
        }

        /// <summary>
        /// 采集数据（带完整异常处理）
        /// </summary>
        public async Task<CollectionResult> CollectAsync(
            byte slaveId, ushort startAddress, ushort count,
            CancellationToken cancellationToken = default)
        {
            var result = new CollectionResult
            {
                SlaveId = slaveId,
                StartAddress = startAddress,
                Timestamp = DateTime.Now
            };

            // 检查从站熔断状态
            var status = GetOrCreateSlaveStatus(slaveId);
            if (status.IsCircuitOpen)
            {
                if (DateTime.Now < status.CircuitOpenUntil)
                {
                    result.Success = false;
                    result.ErrorType = ErrorType.CircuitBreaker;
                    result.ErrorMessage = $"从站{slaveId}处于熔断状态，{(status.CircuitOpenUntil - DateTime.Now).TotalSeconds:F0}秒后恢复";
                    return result;
                }

                // 熔断恢复，进入半开状态
                _logger?.LogInformation("从站{SlaveId} 熔断器进入半开状态，尝试恢复", slaveId);
                status.IsCircuitOpen = false;
            }

            int attempt = 0;
            Exception lastException = null;

            while (attempt < _retryPolicy.MaxRetries)
            {
                try
                {
                    attempt++;

                    // 确保连接可用
                    await EnsureConnectionAsync(cancellationToken);

                    if (attempt > 1)
                    {
                        await Task.Delay(_retryPolicy.GetDelay(attempt), cancellationToken);
                    }

                    var data = _modbusClient.ReadHoldingRegisters(slaveId, startAddress, count);

                    // 成功，更新状态
                    status.RecordSuccess();
                    result.Success = true;
                    result.Data = data;
                    result.Attempts = attempt;

                    return result;
                }
                catch (UnauthorizedAccessException ex)
                {
                    // 串口被占用
                    lastException = ex;
                    _logger?.LogWarning("串口{Port}被占用，尝试重新连接", _portName);
                    await ReconnectAsync(cancellationToken);
                }
                catch (System.IO.IOException ex)
                {
                    // 串口IO错误（可能是USB拔出）
                    lastException = ex;
                    _logger?.LogError(ex, "串口{Port} IO错误", _portName);
                    await ReconnectAsync(cancellationToken);
                }
                catch (TimeoutException ex)
                {
                    lastException = ex;
                    status.RecordFailure();
                    _logger?.LogWarning("从站{SlaveId} 超时 ({Attempt}/{Max})",
                        slaveId, attempt, _retryPolicy.MaxRetries);
                }
                catch (InvalidDataException ex)
                {
                    lastException = ex;
                    status.RecordFailure();
                    _logger?.LogWarning("从站{SlaveId} 数据校验失败", slaveId);
                }
                catch (ModbusException ex) when (ex.ExceptionCode == 0x06)
                {
                    lastException = ex;
                    await Task.Delay(_retryPolicy.BusyWaitTime, cancellationToken);
                }
                catch (ModbusException ex)
                {
                    // 协议层错误，不重试
                    status.RecordFailure();
                    result.Success = false;
                    result.ErrorType = ErrorType.Protocol;
                    result.ErrorMessage = ex.Message;
                    result.Attempts = attempt;
                    return result;
                }
                catch (OperationCanceledException)
                {
                    throw;
                }
                catch (Exception ex)
                {
                    lastException = ex;
                    _logger?.LogError(ex, "从站{SlaveId} 未预期的异常", slaveId);
                }
            }

            // 检查是否需要熔断
            if (status.ConsecutiveFailures >= 5)
            {
                status.OpenCircuit(TimeSpan.FromSeconds(30));
                _logger?.LogWarning("从站{SlaveId} 连续失败{Count}次，触发熔断30秒",
                    slaveId, status.ConsecutiveFailures);
            }

            result.Success = false;
            result.ErrorType = ErrorType.MaxRetriesExceeded;
            result.ErrorMessage = lastException?.Message ?? "未知错误";
            result.Attempts = attempt;

            return result;
        }

        private async Task EnsureConnectionAsync(CancellationToken cancellationToken)
        {
            if (_modbusClient != null)
                return;

            await _connectionLock.WaitAsync(cancellationToken);
            try
            {
                if (_modbusClient != null)
                    return;

                _modbusClient = new ModbusRtuBasic(_portName, _baudRate);
                _modbusClient.Open();
                _logger?.LogInformation("串口{Port}连接成功", _portName);
            }
            finally
            {
                _connectionLock.Release();
            }
        }

        private async Task ReconnectAsync(CancellationToken cancellationToken)
        {
            await _connectionLock.WaitAsync(cancellationToken);
            try
            {
                _modbusClient?.Dispose();
                _modbusClient = null;

                // 等待一段时间再重连
                await Task.Delay(500, cancellationToken);

                _modbusClient = new ModbusRtuBasic(_portName, _baudRate);
                _modbusClient.Open();
                _logger?.LogInformation("串口{Port}重连成功", _portName);
            }
            catch (Exception ex)
            {
                _logger?.LogError(ex, "串口{Port}重连失败", _portName);
                throw;
            }
            finally
            {
                _connectionLock.Release();
            }
        }

        private SlaveStatus GetOrCreateSlaveStatus(byte slaveId)
        {
            return _slaveStatuses.GetOrAdd(slaveId, id => new SlaveStatus { SlaveId = id });
        }

        /// <summary>
        /// 获取所有从站状态（用于监控）
        /// </summary>
        public IReadOnlyDictionary<byte, SlaveStatus> GetSlaveStatuses()
        {
            return _slaveStatuses;
        }

        public void Dispose()
        {
            if (_isDisposed) return;

            _modbusClient?.Dispose();
            _connectionLock.Dispose();
            _isDisposed = true;
        }
    }

    /// <summary>
    /// 从站状态跟踪
    /// </summary>
    public class SlaveStatus
    {
        public byte SlaveId { get; set; }
        public int TotalRequests { get; private set; }
        public int SuccessCount { get; private set; }
        public int FailureCount { get; private set; }
        public int ConsecutiveFailures { get; private set; }
        public DateTime? LastSuccessTime { get; private set; }
        public DateTime? LastFailureTime { get; private set; }
        public bool IsCircuitOpen { get; set; }
        public DateTime CircuitOpenUntil { get; private set; }

        public double SuccessRate => TotalRequests > 0
            ? (double)SuccessCount / TotalRequests * 100 : 0;

        public void RecordSuccess()
        {
            TotalRequests++;
            SuccessCount++;
            ConsecutiveFailures = 0;
            LastSuccessTime = DateTime.Now;
        }

        public void RecordFailure()
        {
            TotalRequests++;
            FailureCount++;
            ConsecutiveFailures++;
            LastFailureTime = DateTime.Now;
        }

        public void OpenCircuit(TimeSpan duration)
        {
            IsCircuitOpen = true;
            CircuitOpenUntil = DateTime.Now.Add(duration);
        }
    }

    /// <summary>
    /// 采集结果
    /// </summary>
    public class CollectionResult
    {
        public byte SlaveId { get; set; }
        public ushort StartAddress { get; set; }
        public DateTime Timestamp { get; set; }
        public bool Success { get; set; }
        public ushort[] Data { get; set; }
        public int Attempts { get; set; }
        public ErrorType ErrorType { get; set; }
        public string ErrorMessage { get; set; }
    }

    public enum ErrorType
    {
        None,
        Timeout,
        CrcError,
        Protocol,
        Connection,
        CircuitBreaker,
        MaxRetriesExceeded
    }
}

---

方案四：实战整合——完整的采集调度示例

最后，把前面的组件整合成一个完整的采集服务：

csharp
using System;
using System.Collections.Generic;
using System.Threading;
using System.Threading.Tasks;
using Microsoft.Extensions.Hosting;
using Microsoft.Extensions.Logging;

/// <summary>
/// Modbus数据采集后台服务
/// </summary>
public class ModbusCollectionService : BackgroundService
{
    private readonly ILogger<ModbusCollectionService> _logger;
    private readonly ProductionModbusCollector _collector;
    private readonly List<SlaveConfig> _slaveConfigs;
    private readonly TimeSpan _collectionInterval;

    public ModbusCollectionService(
        ILogger<ModbusCollectionService> logger,
        string portName,
        List<SlaveConfig> slaveConfigs,
        TimeSpan? interval = null)
    {
        _logger = logger;
        _slaveConfigs = slaveConfigs;
        _collectionInterval = interval ?? TimeSpan.FromSeconds(5);

        var policy = RetryPolicy.Default;
        _collector = new ProductionModbusCollector(portName, 9600, logger, policy);
    }

    protected override async Task ExecuteAsync(CancellationToken stoppingToken)
    {
        _logger.LogInformation("Modbus采集服务启动");

        while (!stoppingToken.IsCancellationRequested)
        {
            var cycleStart = DateTime.Now;

            foreach (var config in _slaveConfigs)
            {
                if (stoppingToken.IsCancellationRequested)
                    break;

                try
                {
                    var result = await _collector.CollectAsync(
                        config.SlaveId,
                        config.StartAddress,
                        config.RegisterCount,
                        stoppingToken);

                    if (result.Success)
                    {
                        // 处理采集到的数据
                        ProcessData(config, result.Data);
                    }
                    else
                    {
                        _logger.LogWarning(
                            "从站{SlaveId}采集失败: {Error}",
                            config.SlaveId, result.ErrorMessage);
                    }
                }
                catch (OperationCanceledException)
                {
                    break;
                }
                catch (Exception ex)
                {
                    _logger.LogError(ex, "从站{SlaveId}采集异常", config.SlaveId);
                }
            }

            // 计算剩余等待时间，保证采集周期稳定
            var elapsed = DateTime.Now - cycleStart;
            var waitTime = _collectionInterval - elapsed;

            if (waitTime > TimeSpan.Zero)
            {
                await Task.Delay(waitTime, stoppingToken);
            }
            else
            {
                _logger.LogWarning("采集周期超时，实际耗时{Elapsed}ms", elapsed.TotalMilliseconds);
            }
        }

        _logger.LogInformation("Modbus采集服务停止");
        _collector.Dispose();
    }

    private void ProcessData(SlaveConfig config, ushort[] data)
    {
        _logger.LogDebug("从站{SlaveId}数据: {Data}",
            config.SlaveId, string.Join(", ", data));

        // 这里可以：
        // 1. 存入数据库
        // 2. 推送到消息队列
        // 3. 触发告警判断
        // 4. 更新缓存供API查询
    }
}

public class SlaveConfig
{
    public byte SlaveId { get; set; }
    public ushort StartAddress { get; set; }
    public ushort RegisterCount { get; set; }
    public string Description { get; set; }
}

// 使用示例
public class Program
{
    public static async Task Main(string[] args)
    {
        var slaveConfigs = new List<SlaveConfig>
        {
            new() { SlaveId = 1, StartAddress = 0, RegisterCount = 10, Description = "1#温度变送器" },
            new() { SlaveId = 2, StartAddress = 0, RegisterCount = 20, Description = "2#流量计" },
            new() { SlaveId = 3, StartAddress = 100, RegisterCount = 5, Description = "3#液位计" }
        };

        using var loggerFactory = LoggerFactory.Create(builder =>
        {
            builder.AddConsole();
            builder.SetMinimumLevel(LogLevel.Debug);
        });

        var logger = loggerFactory.CreateLogger<ModbusCollectionService>();
        var service = new ModbusCollectionService(logger, "COM3", slaveConfigs);

        var cts = new CancellationTokenSource();
        Console.CancelKeyPress += (s, e) =>
        {
            e.Cancel = true;
            cts.Cancel();
        };

        await service.StartAsync(cts.Token);

        Console.WriteLine("按 Ctrl+C 停止服务...");
        await Task.Delay(Timeout.Infinite, cts.Token).ContinueWith(_ => { });

        await service.StopAsync(CancellationToken.None);
    }
}

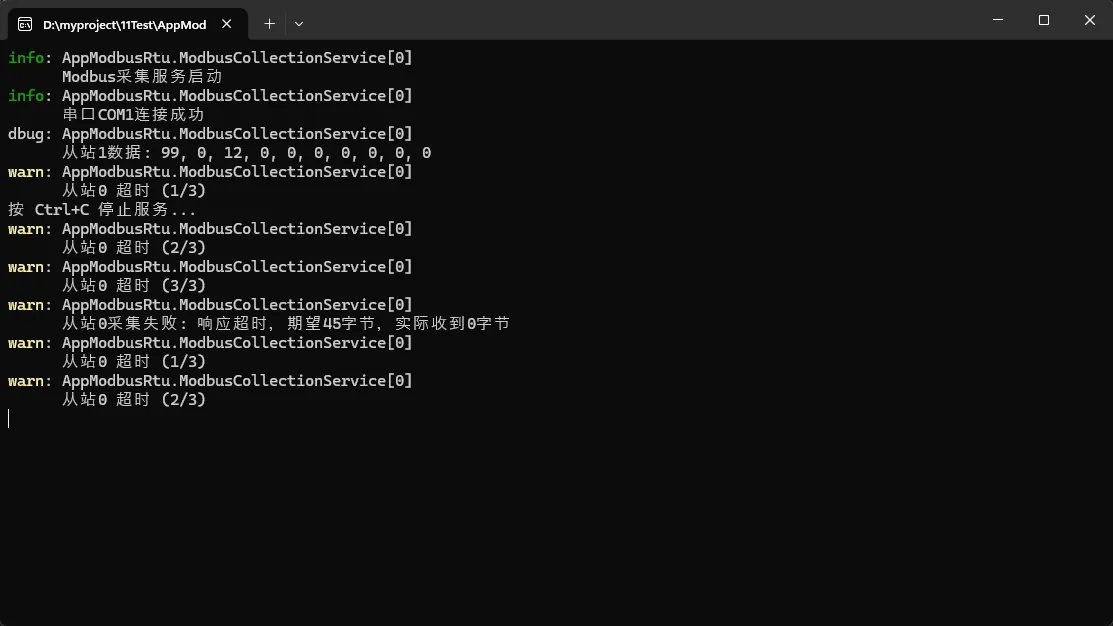

// 调用
using Microsoft.Extensions.Logging;

namespace AppModbusRtu
{
    internal class Program
    {
        static async Task Main(string[] args)
        {
            var slaveConfigs = new List<SlaveConfig>
            {
                new() { SlaveId = 1, StartAddress = 0, RegisterCount = 10, Description = "1#温度变送器" },
                new() { SlaveId = 0, StartAddress = 100, RegisterCount = 20, Description = "2#流量计" },
                new() { SlaveId = 0, StartAddress = 200, RegisterCount = 5, Description = "3#液位计" }
            };

            using var loggerFactory = LoggerFactory.Create(builder =>
            {
                builder.AddConsole();
                builder.SetMinimumLevel(LogLevel.Debug);
            });

            var logger = loggerFactory.CreateLogger<ModbusCollectionService>();
            var service = new ModbusCollectionService(logger, "COM1", slaveConfigs);

            var cts = new CancellationTokenSource();
            Console.CancelKeyPress += (s, e) =>
            {
                e.Cancel = true;
                cts.Cancel();
            };

            await service.StartAsync(cts.Token);

            Console.WriteLine("按 Ctrl+C 停止服务...");
            await Task.Delay(Timeout.Infinite, cts.Token).ContinueWith(_ => { });

            await service.StopAsync(CancellationToken.None);
        }
    }
}

---

💬 互动讨论

🤔 抛几个问题，欢迎在评论区聊聊：

1. 你们项目里的 Modbus 超时一般设多少？有没有遇到过"测试环境没问题，现场就抽风"的情况？

2. 对于熔断恢复后的"半开状态"，你觉得应该怎么设计更合理？直接放行还是限流探测？

---

✨ 金句总结

"超时时间不是拍脑袋，而是算出来的。" —— 传输时间 + 处理时间 + 安全余量

"重试不是万能药，但没有重试是万万不能的。" —— 关键在于区分可重试和不可重试的异常

"一个坏设备不应该拖垮整条总线。" —— 熔断机制是生产环境的保命符

---

📋 可复用代码模板

收藏这两个模板，下次开工直接用：

1. 超时计算器

csharp
int SafeTimeout(int baudRate, int bytes, int processingMs = 100)
    => (int)(bytes * 10.0 / baudRate * 1000 * 1.5 + processingMs);

2. 指数退避延迟

csharp
int BackoffDelay(int attempt, int baseMs = 100, int maxMs = 2000)
    => (int)Math.Min(baseMs * Math.Pow(2, attempt - 1), maxMs);

---

🎯 结尾：三点核心收获

1. 超时要科学：根据波特率、数据量、从站性能计算，别再凭感觉了
2. 重试要分级：区分可重试异常和协议错误，配合指数退避避免风暴
3. 异常要兜底：串口恢复、熔断保护、状态监控三件套缺一不可

📚 进阶学习路线：

• 深入了解 Modbus TCP（以太网环境的新选择）
• 研究 .NET 的 System.IO.Pipelines（高性能IO场景）
• 学习分布式数据采集架构（OPC UA、MQTT）

如果这篇文章对你有帮助，欢迎点赞、收藏、转发，让更多做工业软件的朋友少踩坑！

有问题随时评论区见，我会一一回复。🚀

---

标签：#C# #Modbus #工业通信 #串口编程 #异常处理
