🎨 从零打造专业级绘图应用：SkiaSharp + WinForms 实战指南
编辑
2026-01-20
C#
00

目录

🔍 问题分析：传统绘图开发的痛点
💡 解决方案：SkiaSharp + 架构设计
🔥 为什么选择SkiaSharp？
🎯 核心架构设计
🛠️ 代码实战：核心功能实现
🎨 图形对象基类设计
🗂️ 多图层管理系统
🖱️ 精准的鼠标交互处理
🎨 完整程序
🎉 总结与展望

💡 想要开发一款媲美画图软件的应用？厌倦了GDI+的局限性？本文将手把手教你使用SkiaSharp构建功能完整的绘图板应用，涵盖多图层管理、图形选择、现代化UI设计等核心功能。无论你是桌面开发新手还是想要提升技能的资深开发者，都能从中收获满满的干货！

🔍 问题分析：传统绘图开发的痛点

在C#桌面开发中，很多开发者在实现绘图功能时都会遇到以下问题：

🚫 GDI+性能瓶颈

  • 复杂图形绘制时性能下降明显
  • 抗锯齿效果不够理想
  • 内存管理容易出现泄漏

🚫 功能实现复杂

  • 图层管理逻辑繁琐
  • 图形选择和移动难以实现
  • UI界面缺乏现代化设计

🚫 扩展性差

  • 添加新工具需要大量重构
  • 跨平台支持困难
  • 与现代图形库集成复杂

💡 解决方案：SkiaSharp + 架构设计

🔥 为什么选择SkiaSharp？

SkiaSharp是Google Skia图形库的.NET封装，具有以下优势：

  • 高性能：硬件加速渲染，支持GPU
  • 跨平台：Windows、macOS、Linux全覆盖
  • 功能丰富：矢量图形、文字渲染、图像处理
  • 现代化：支持最新的图形标准和效果

🎯 核心架构设计

我们采用分层架构 + 对象模式，将复杂的绘图功能拆分为：

markdown
📁 应用架构
├── 🎨 UI层 (FrmMain)
├── 🛠️ 工具管理层 (DrawingTool)
├── 📐 图形对象层 (DrawableObject)
└── 🗂️ 图层管理层 (LayerManager)

🛠️ 代码实战：核心功能实现

🎨 图形对象基类设计

首先，我们定义一个抽象的图形对象基类，为所有图形提供统一接口：

c#
public abstract class DrawableObject
{
    public string Id { get; set; }
    public DrawableType Type { get; set; }
    public SKPaint Paint { get; set; }
    public bool IsSelected { get; set; }
    public SKRect BoundingRect { get; protected set; }

    protected DrawableObject()
    {
        Id = Guid.NewGuid().ToString();
        IsSelected = false;
    }

    // 核心方法：每个图形都必须实现
    public abstract void Draw(SKCanvas canvas);
    public abstract void DrawSelection(SKCanvas canvas);
    public abstract bool HitTest(SKPoint point);
    public abstract void Move(float deltaX, float deltaY);

    // 🔥 选择效果的通用实现
    protected SKPaint CreateSelectionPaint()
    {
        return new SKPaint
        {
            Color = SKColors.Blue,
            Style = SKPaintStyle.Stroke,
            StrokeWidth = 2,
            PathEffect = SKPathEffect.CreateDash(new float[] { 5, 5 }, 0)
        };
    }
}

💡 设计亮点：

  • 使用抽象类确保接口一致性
  • 内置选择状态管理
  • 提供通用的选择效果渲染

🗂️ 多图层管理系统

图层管理是专业绘图软件的核心功能，我们来看看如何优雅实现：

c#
public class LayerManager
{
    private List<Layer> layers;
    private int activeLayerIndex;

    public LayerManager()
    {
        layers = new List<Layer>();
        activeLayerIndex = -1;
    }

    // 🔥 智能图层添加
    public void AddLayer(int width, int height, string name = null)
    {
        if (string.IsNullOrEmpty(name))
            name = $"图层 {layers.Count + 1}";

        var layer = new Layer(width, height, name);
        layers.Add(layer);
        activeLayerIndex = layers.Count - 1;
    }

    // 🎯 跨图层对象选择（核心功能）
    public DrawableObject SelectObjectInAllLayers(SKPoint point)
    {
        // 从顶层开始查找，符合用户直觉
        for (int i = layers.Count - 1; i >= 0; i--)
        {
            if (layers[i].Visible)
            {
                var selectedObj = layers[i].SelectObject(point);
                if (selectedObj != null)
                {
                    // 清除其他图层的选择状态
                    for (int j = 0; j < layers.Count; j++)
                    {
                        if (j != i) layers[j].ClearSelection();
                    }
                    SetActiveLayer(i);
                    return selectedObj;
                }
            }
        }
        ClearAllSelections();
        return null;
    }

    public void ResizeLayers(int newWidth, int newHeight)
    {
        foreach (var layer in layers)
        {
            layer.ResizeLayer(newWidth, newHeight);
        }
    }
}

🖱️ 精准的鼠标交互处理

鼠标交互是绘图应用的灵魂，看看如何处理复杂的交互逻辑：

c#
private void pbCanvas_MouseDown(object sender, MouseEventArgs e)
{
    if (e.Button != MouseButtons.Left) return;

    var skPoint = new SKPoint(e.X, e.Y);

    // 🎯 选择工具的智能处理
    if (currentTool.Type == ToolType.Select)
    {
        selectedObject = layerManager.SelectObjectInAllLayers(skPoint);
        if (selectedObject != null)
        {
            isDragging = true;
            dragStartPoint = skPoint;
            pbCanvas.Cursor = Cursors.SizeAll;
            lblStatus.Text = $"已选中 {selectedObject.Type} 对象";
        }
        pbCanvas.Invalidate();
        return;
    }

    // 🖌️ 绘图工具的统一处理
    isDrawing = true;
    lastPoint = startPoint = skPoint;
    currentPath.Clear();
    currentPath.Add(skPoint);

    // 清除之前的选择状态
    layerManager.ClearAllSelections();
    selectedObject = null;
}

// 🔄 实时预览功能实现
private void pbCanvas_Paint(object sender, PaintEventArgs e)
{
    using (var tempBitmap = new SKBitmap(pbCanvas.Width, pbCanvas.Height))
    using (var tempCanvas = new SKCanvas(tempBitmap))
    {
        tempCanvas.Clear(SKColors.White);

        // 渲染所有可见图层
        foreach (var layer in layerManager.GetLayers())
        {
            if (layer.Visible)
            {
                layer.DrawToCanvas(tempCanvas);
            }
        }

        // 🎨 绘制实时预览（用户体验关键）
        if (isDrawing && currentTool.Type != ToolType.Select)
        {
            DrawPreview(tempCanvas);
        }

        // 转换并绘制到WinForms
        using (var image = SKImage.FromBitmap(tempBitmap))
        using (var data = image.Encode(SKEncodedImageFormat.Png, 100))
        using (var stream = new MemoryStream(data.ToArray()))
        using (var bitmap = new Bitmap(stream))
        {
            e.Graphics.DrawImage(bitmap, 0, 0);
        }
    }
}

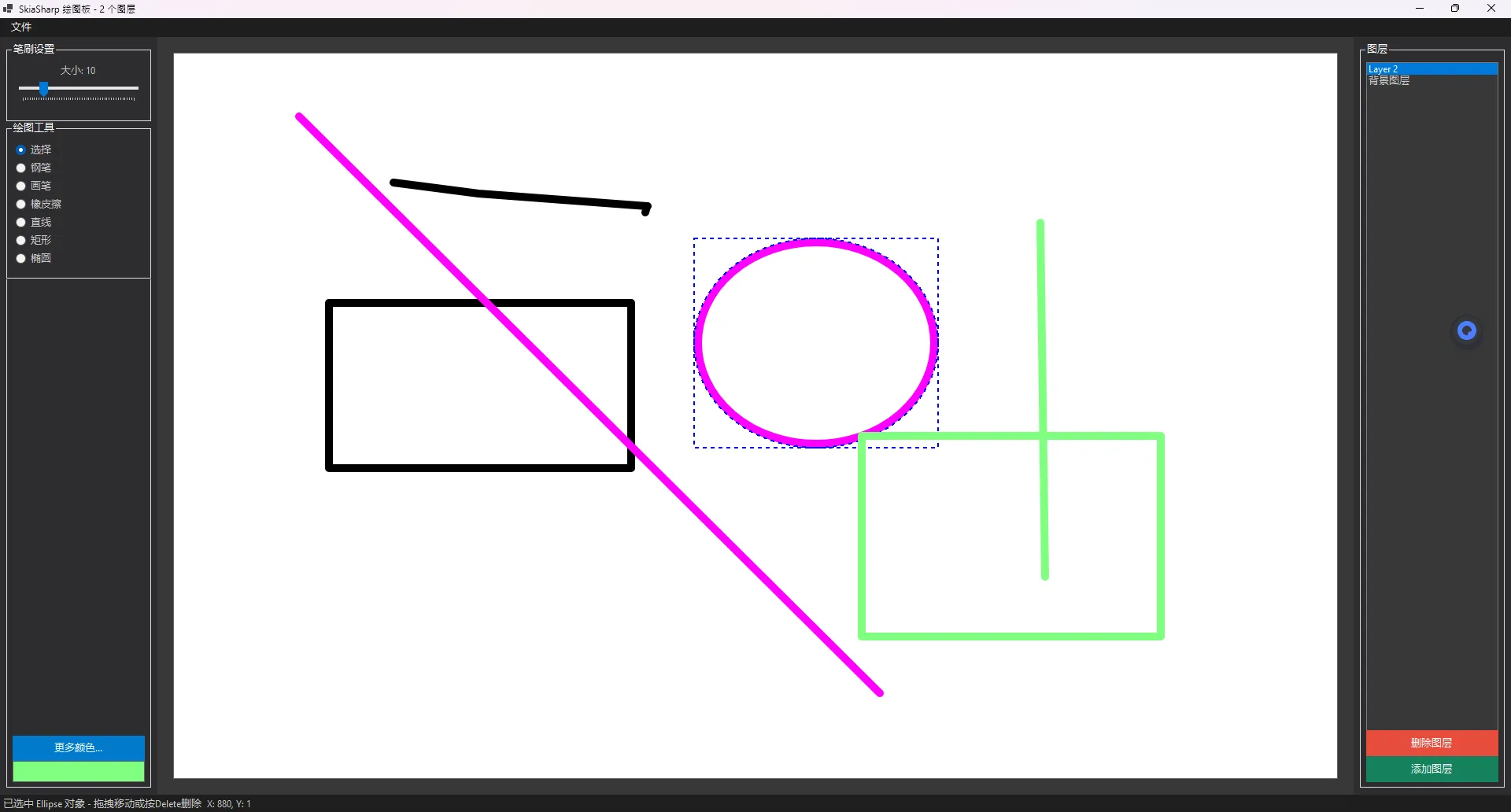

🎨 完整程序

我们来打造现代化深色主题：

c#
using SkiaSharp;
using SkiaSharp.Views.Desktop;
using System;
using System.Collections.Generic;
using System.Drawing;
using System.IO;
using System.Windows.Forms;

namespace AppDrawingBoard
{
    public partial class FrmMain : Form
    {
        private LayerManager layerManager;
        private DrawingTool currentTool;
        private bool isDrawing = false;
        private SKPoint lastPoint;
        private SKPoint startPoint;
        private List<SKPoint> currentPath;
        private SKBitmap canvasBitmap;
        private DrawableObject selectedObject = null;
        private bool isDragging = false;
        private SKPoint dragStartPoint;

        private readonly Color[] predefinedColors = {
            Color.Black, Color.White, Color.Red, Color.Green, Color.Blue,
            Color.Yellow, Color.Orange, Color.Purple, Color.Pink, Color.Brown,
            Color.Gray, Color.LightGray, Color.DarkGray, Color.Cyan, Color.Magenta
        };

        public FrmMain()
        {
            InitializeComponent();
            InitializeDrawingComponents();
        }

        private void InitializeDrawingComponents()
        {
            layerManager = new LayerManager();
            currentTool = new DrawingTool();
            currentPath = new List<SKPoint>();

            canvasBitmap = new SKBitmap(pbCanvas.Width, pbCanvas.Height);
            using (var canvas = new SKCanvas(canvasBitmap))
            {
                canvas.Clear(SKColors.White);
            }

            InitializeColorPanel();

            UpdateUI();
        }

        private void InitializeColorPanel()
        {
            flpColors.Controls.Clear();

            foreach (var color in predefinedColors)
            {
                var colorButton = new Button
                {
                    Size = new Size(30, 30),
                    BackColor = color,
                    FlatStyle = FlatStyle.Flat,
                    Margin = new Padding(2)
                };
                colorButton.FlatAppearance.BorderSize = 1;
                colorButton.FlatAppearance.BorderColor = Color.Gray;
                colorButton.Click += (s, e) =>
                {
                    currentTool.Color = new SKColor((byte)color.R, (byte)color.G, (byte)color.B);
                    currentTool.UpdatePaint();
                    pnlColorPreview.BackColor = color;
                };
                flpColors.Controls.Add(colorButton);
            }

            pnlColorPreview.BackColor = Color.Black;
        }

        private void FrmMain_Load(object sender, EventArgs e)
        {
            layerManager.AddLayer(pbCanvas.Width, pbCanvas.Height, "背景图层");
            RefreshLayersList();
            lblStatus.Text = "就绪 - 选择工具开始绘图";
        }

        private void ToolRadioButton_CheckedChanged(object sender, EventArgs e)
        {
            var rb = sender as RadioButton;
            if (!rb.Checked) return;

            if (rb == rbSelect) currentTool.Type = ToolType.Select;
            else if (rb == rbPen) currentTool.Type = ToolType.Pen;
            else if (rb == rbBrush) currentTool.Type = ToolType.Brush;
            else if (rb == rbEraser) currentTool.Type = ToolType.Eraser;
            else if (rb == rbLine) currentTool.Type = ToolType.Line;
            else if (rb == rbRectangle) currentTool.Type = ToolType.Rectangle;
            else if (rb == rbEllipse) currentTool.Type = ToolType.Ellipse;

            currentTool.UpdatePaint();
            lblStatus.Text = $"当前工具: {rb.Text}";

            if (currentTool.Type != ToolType.Select)
            {
                layerManager.ClearAllSelections();
                selectedObject = null;
                pbCanvas.Invalidate();
            }

            if (currentTool.Type == ToolType.Select)
                pbCanvas.Cursor = Cursors.Default;
            else
                pbCanvas.Cursor = Cursors.Cross;
        }

        private void trkBrushSize_Scroll(object sender, EventArgs e)
        {
            currentTool.StrokeWidth = trkBrushSize.Value;
            currentTool.UpdatePaint();
            lblSize.Text = $"大小: {trkBrushSize.Value}";
        }

        private void btnColorPicker_Click(object sender, EventArgs e)
        {
            if (colorDialog.ShowDialog() == DialogResult.OK)
            {
                var color = colorDialog.Color;
                currentTool.Color = new SKColor((byte)color.R, (byte)color.G, (byte)color.B);
                currentTool.UpdatePaint();
                pnlColorPreview.BackColor = color;
            }
        }

        private void btnAddLayer_Click(object sender, EventArgs e)
        {
            layerManager.AddLayer(pbCanvas.Width, pbCanvas.Height);
            RefreshLayersList();
            lblStatus.Text = "添加了新图层";
        }

        private void btnDeleteLayer_Click(object sender, EventArgs e)
        {
            if (layerManager.GetLayers().Count <= 1)
            {
                MessageBox.Show("至少需要保留一个图层！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
                return;
            }

            var selectedIndex = lstLayers.SelectedIndex;
            if (selectedIndex >= 0)
            {
                layerManager.RemoveLayer(selectedIndex);
                RefreshLayersList();
                selectedObject = null;
                pbCanvas.Invalidate();
                lblStatus.Text = "删除了图层";
            }
        }

        private void lstLayers_SelectedIndexChanged(object sender, EventArgs e)
        {
            var selectedIndex = lstLayers.SelectedIndex;
            if (selectedIndex >= 0)
            {
                layerManager.SetActiveLayer(layerManager.GetLayers().Count - 1 - selectedIndex);
                lblStatus.Text = $"切换到图层: {lstLayers.SelectedItem}";

                selectedObject = null;
                pbCanvas.Invalidate();
            }
        }

        private void RefreshLayersList()
        {
            lstLayers.Items.Clear();
            var layers = layerManager.GetLayers();

            for (int i = layers.Count - 1; i >= 0; i--)
            {
                lstLayers.Items.Add(layers[i].Name);
            }

            if (lstLayers.Items.Count > 0)
                lstLayers.SelectedIndex = 0;

            UpdateUI();
        }

        private void pbCanvas_MouseDown(object sender, MouseEventArgs e)
        {
            if (e.Button != MouseButtons.Left) return;

            var skPoint = new SKPoint(e.X, e.Y);

            if (currentTool.Type == ToolType.Select)
            {
                selectedObject = layerManager.SelectObjectInAllLayers(skPoint);
                if (selectedObject != null)
                {
                    isDragging = true;
                    dragStartPoint = skPoint;
                    pbCanvas.Cursor = Cursors.SizeAll;
                    lblStatus.Text = $"已选中 {selectedObject.Type} 对象 - 拖拽移动或按Delete删除";
                }
                else
                {
                    lblStatus.Text = "未选中任何对象";
                }
                pbCanvas.Invalidate();
                return;
            }

            isDrawing = true;
            lastPoint = startPoint = skPoint;
            currentPath.Clear();
            currentPath.Add(skPoint);

            var drawingLayer = layerManager.GetActiveLayer();
            if (drawingLayer == null) return;

            layerManager.ClearAllSelections();
            selectedObject = null;

            if (currentTool.Type == ToolType.Pen || currentTool.Type == ToolType.Brush || currentTool.Type == ToolType.Eraser)
            {
                drawingLayer.Canvas.DrawPoint(skPoint, currentTool.Paint);
                pbCanvas.Invalidate();
            }
        }

        private void pbCanvas_MouseMove(object sender, MouseEventArgs e)
        {
            lblCoordinates.Text = $"X: {e.X}, Y: {e.Y}";

            var currentPoint = new SKPoint(e.X, e.Y);

            if (currentTool.Type == ToolType.Select && isDragging && selectedObject != null)
            {
                float deltaX = currentPoint.X - dragStartPoint.X;
                float deltaY = currentPoint.Y - dragStartPoint.Y;

                selectedObject.Move(deltaX, deltaY);
                dragStartPoint = currentPoint;

                var layerForRedraw = layerManager.GetActiveLayer();
                layerForRedraw?.RedrawLayer();

                pbCanvas.Invalidate();
                return;
            }

            if (!isDrawing) return;

            var currentLayer = layerManager.GetActiveLayer();
            if (currentLayer == null) return;

            switch (currentTool.Type)
            {
                case ToolType.Pen:
                case ToolType.Brush:
                case ToolType.Eraser:
                    currentLayer.Canvas.DrawLine(lastPoint, currentPoint, currentTool.Paint);
                    lastPoint = currentPoint;
                    currentPath.Add(currentPoint);
                    pbCanvas.Invalidate();
                    break;

                case ToolType.Line:
                case ToolType.Rectangle:
                case ToolType.Ellipse:
                    pbCanvas.Invalidate();
                    break;
            }
        }

        private void pbCanvas_MouseUp(object sender, MouseEventArgs e)
        {
            if (currentTool.Type == ToolType.Select)
            {
                isDragging = false;
                pbCanvas.Cursor = Cursors.Default;
                return;
            }

            if (!isDrawing) return;

            isDrawing = false;
            var targetLayer = layerManager.GetActiveLayer();
            if (targetLayer == null) return;

            var endPoint = new SKPoint(e.X, e.Y);
            DrawableObject newObject = null;

            switch (currentTool.Type)
            {
                case ToolType.Pen:
                case ToolType.Brush:
                case ToolType.Eraser:
                    if (currentPath.Count > 1)
                    {
                        newObject = new FreeDrawObject(currentPath, currentTool.Paint);
                    }
                    break;

                case ToolType.Line:
                    if (Math.Abs(endPoint.X - startPoint.X) > 1 || Math.Abs(endPoint.Y - startPoint.Y) > 1)
                    {
                        newObject = new LineObject(startPoint, endPoint, currentTool.Paint);
                    }
                    break;

                case ToolType.Rectangle:
                    var rect = SKRect.Create(
                        Math.Min(startPoint.X, endPoint.X),
                        Math.Min(startPoint.Y, endPoint.Y),
                        Math.Abs(endPoint.X - startPoint.X),
                        Math.Abs(endPoint.Y - startPoint.Y));
                    if (rect.Width > 1 && rect.Height > 1)
                    {
                        newObject = new RectangleObject(rect, currentTool.Paint);
                    }
                    break;

                case ToolType.Ellipse:
                    var ellipseRect = SKRect.Create(
                        Math.Min(startPoint.X, endPoint.X),
                        Math.Min(startPoint.Y, endPoint.Y),
                        Math.Abs(endPoint.X - startPoint.X),
                        Math.Abs(endPoint.Y - startPoint.Y));
                    if (ellipseRect.Width > 1 && ellipseRect.Height > 1)
                    {
                        newObject = new EllipseObject(ellipseRect, currentTool.Paint);
                    }
                    break;
            }

            if (newObject != null)
            {
                targetLayer.AddObject(newObject);
                lblStatus.Text = $"已创建 {newObject.Type} 对象";
            }

            pbCanvas.Invalidate();
            currentPath.Clear();
        }

        private void pbCanvas_Paint(object sender, PaintEventArgs e)
        {
            using (var tempBitmap = new SKBitmap(pbCanvas.Width, pbCanvas.Height))
            using (var tempCanvas = new SKCanvas(tempBitmap))
            {
                tempCanvas.Clear(SKColors.White);

                foreach (var layer in layerManager.GetLayers())
                {
                    if (layer.Visible)
                    {
                        layer.DrawToCanvas(tempCanvas);
                    }
                }

                if (isDrawing && currentPath.Count > 0 && currentTool.Type != ToolType.Select)
                {
                    var currentPoint = PointToClient(Cursor.Position);
                    currentPoint = pbCanvas.PointToClient(PointToScreen(currentPoint));
                    var skCurrentPoint = new SKPoint(currentPoint.X, currentPoint.Y);

                    switch (currentTool.Type)
                    {
                        case ToolType.Line:
                            tempCanvas.DrawLine(startPoint, skCurrentPoint, currentTool.Paint);
                            break;

                        case ToolType.Rectangle:
                            var rect = SKRect.Create(
                                Math.Min(startPoint.X, skCurrentPoint.X),
                                Math.Min(startPoint.Y, skCurrentPoint.Y),
                                Math.Abs(skCurrentPoint.X - startPoint.X),
                                Math.Abs(skCurrentPoint.Y - startPoint.Y));
                            tempCanvas.DrawRect(rect, currentTool.Paint);
                            break;

                        case ToolType.Ellipse:
                            var ellipseRect = SKRect.Create(
                                Math.Min(startPoint.X, skCurrentPoint.X),
                                Math.Min(startPoint.Y, skCurrentPoint.Y),
                                Math.Abs(skCurrentPoint.X - startPoint.X),
                                Math.Abs(skCurrentPoint.Y - startPoint.Y));
                            tempCanvas.DrawOval(ellipseRect, currentTool.Paint);
                            break;
                    }
                }

                using (var image = SKImage.FromBitmap(tempBitmap))
                using (var data = image.Encode(SKEncodedImageFormat.Png, 100))
                using (var stream = new MemoryStream(data.ToArray()))
                using (var bitmap = new Bitmap(stream))
                {
                    e.Graphics.DrawImage(bitmap, 0, 0);
                }
            }
        }

        protected override bool ProcessCmdKey(ref Message msg, Keys keyData)
        {
            if (keyData == Keys.Delete && selectedObject != null)
            {
                var layerWithSelectedObject = layerManager.GetActiveLayer();
                if (layerWithSelectedObject != null)
                {
                    layerWithSelectedObject.RemoveObject(selectedObject);
                    selectedObject = null;
                    pbCanvas.Invalidate();
                    lblStatus.Text = "已删除选中对象";
                }
                return true;
            }
            return base.ProcessCmdKey(ref msg, keyData);
        }

        private void newToolStripMenuItem_Click(object sender, EventArgs e)
        {
            if (MessageBox.Show("确定要新建画布吗？当前内容将丢失！", "确认",
                MessageBoxButtons.YesNo, MessageBoxIcon.Question) == DialogResult.Yes)
            {
                layerManager.Dispose();
                layerManager = new LayerManager();
                layerManager.AddLayer(pbCanvas.Width, pbCanvas.Height, "背景图层");
                selectedObject = null;
                RefreshLayersList();
                pbCanvas.Invalidate();
                lblStatus.Text = "已新建画布";
            }
        }

        private void openToolStripMenuItem_Click(object sender, EventArgs e)
        {
            using (var ofd = new OpenFileDialog())
            {
                ofd.Filter = "图像文件|*.png;*.jpg;*.jpeg;*.bmp|所有文件|*.*";
                if (ofd.ShowDialog() == DialogResult.OK)
                {
                    try
                    {
                        using (var bitmap = SKBitmap.Decode(ofd.FileName))
                        {
                            layerManager.Dispose();
                            layerManager = new LayerManager();
                            layerManager.AddLayer(bitmap.Width, bitmap.Height, "导入图层");

                            var importLayer = layerManager.GetActiveLayer();
                            importLayer.Canvas.DrawBitmap(bitmap, 0, 0);

                            pbCanvas.Size = new Size(bitmap.Width, bitmap.Height);
                            selectedObject = null;
                            RefreshLayersList();
                            pbCanvas.Invalidate();
                            lblStatus.Text = $"已打开: {Path.GetFileName(ofd.FileName)}";
                        }
                    }
                    catch (Exception ex)
                    {
                        MessageBox.Show($"打开文件失败: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
                    }
                }
            }
        }

        private void saveToolStripMenuItem_Click(object sender, EventArgs e)
        {
            using (var sfd = new SaveFileDialog())
            {
                sfd.Filter = "PNG文件|*.png|JPEG文件|*.jpg|BMP文件|*.bmp";
                sfd.DefaultExt = "png";

                if (sfd.ShowDialog() == DialogResult.OK)
                {
                    try
                    {
                        using (var finalBitmap = new SKBitmap(pbCanvas.Width, pbCanvas.Height))
                        using (var finalCanvas = new SKCanvas(finalBitmap))
                        {
                            finalCanvas.Clear(SKColors.White);

                            foreach (var layer in layerManager.GetLayers())
                            {
                                if (layer.Visible)
                                {
                                    using (var paint = new SKPaint { Color = SKColors.White.WithAlpha((byte)(255 * layer.Opacity)) })
                                    {
                                        finalCanvas.DrawBitmap(layer.Bitmap, 0, 0, paint);
                                    }
                                }
                            }

                            using (var image = SKImage.FromBitmap(finalBitmap))
                            using (var data = image.Encode(GetImageFormat(sfd.FileName), 90))
                            using (var stream = File.OpenWrite(sfd.FileName))
                            {
                                data.SaveTo(stream);
                            }
                        }

                        lblStatus.Text = $"已保存: {Path.GetFileName(sfd.FileName)}";
                    }
                    catch (Exception ex)
                    {
                        MessageBox.Show($"保存文件失败: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
                    }
                }
            }
        }

        private SKEncodedImageFormat GetImageFormat(string fileName)
        {
            var extension = Path.GetExtension(fileName).ToLower();
            switch (extension)
            {
                case ".jpg":
                case ".jpeg":
                    return SKEncodedImageFormat.Jpeg;
                case ".bmp":
                    return SKEncodedImageFormat.Bmp;
                default:
                    return SKEncodedImageFormat.Png;
            }
        }

        private void exitToolStripMenuItem_Click(object sender, EventArgs e)
        {
            Close();
        }

        private void FrmMain_FormClosing(object sender, FormClosingEventArgs e)
        {
            layerManager?.Dispose();
            currentTool?.Dispose();
            canvasBitmap?.Dispose();
        }

        private void UpdateUI()
        {
            Text = $"SkiaSharp 绘图板 - {layerManager.GetLayers().Count} 个图层";
        }

        private void FrmMain_Resize(object sender, EventArgs e)
        {
            if (layerManager != null && pbCanvas.Width > 0 && pbCanvas.Height > 0)
            {
                layerManager.ResizeLayers(pbCanvas.Width, pbCanvas.Height);

                pbCanvas.Invalidate();

                lblStatus.Text = $"画布大小已调整为: {pbCanvas.Width} x {pbCanvas.Height}";
            }
        }
    }
}


🎉 总结与展望

通过本文的实战演练，我们成功构建了一个功能完整的绘图应用，核心收获包括：

🔥 三大技术要点：

  1. 架构设计：分层架构 + 抽象工厂模式，让代码更清晰可维护
  2. 性能优化：合理的资源管理和渲染策略，确保应用流畅运行
  3. 用户体验：现代化UI设计和智能交互处理，提升专业度

💡 扩展思路：基于这套架构，你可以轻松添加更多功能，如撤销重做、图形变换、滤镜效果等。SkiaSharp的强大功能为你的创意提供了无限可能！

📢 互动时间

  1. 你在开发绘图应用时遇到过哪些技术难点？
  2. 对于图层管理还有什么更好的设计思路？

如果这篇文章对你有帮助，请点赞并转发给更多需要的同行！让我们一起在C#开发的路上越走越远！🚀

关注我，获取更多C#实战干货和最新技术分享！

🎨 从零打造专业级绘图应用：SkiaSharp + WinForms 实战指南

本文作者:技术老小子

本文链接:

版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
