你有没有遇到过这样的困境？系统越做越复杂，服务间通信变得千丝万缕，一个小改动就牵一发而动全身。更糟糕的是——当你想按不同维度过滤消息时，传统的队列模式显得力不从心。

想象一下：你负责一个工业物联网平台，需要处理来自全国各地工厂的设备数据。有时候只想监控北方工厂的温度数据，有时候需要收集所有机器人的状态信息，有时候又要分析特定生产线的振动数据...

这就是今天要解决的核心问题：如何在复杂的分布式系统中实现灵活、可扩展的消息路由机制？

🎯 为什么Topic模式是你的救星？

传统方式的痛点

直连模式？太简单粗暴。扇出模式？缺乏精细控制。路由模式？只能单维度匹配。

而Topic模式（主题模式）——它就像一个超级智能的邮递员。不仅能按地址送信，还能根据信件类型、紧急程度、收件人属性等多个维度进行精准投递。

Topic模式的威力

text
通配符匹配规则：
* （星号）：匹配一个单词
# （井号）：匹配零个或多个单词

想要北方工厂的所有数据？用factory_north.*.*.*.*

只关心温度相关的信息？试试*.*.*.*temperature

需要监控所有传感器设备？来个*.*.*.sensor_*.*

这种灵活性——简直是为复杂业务场景量身定制的！

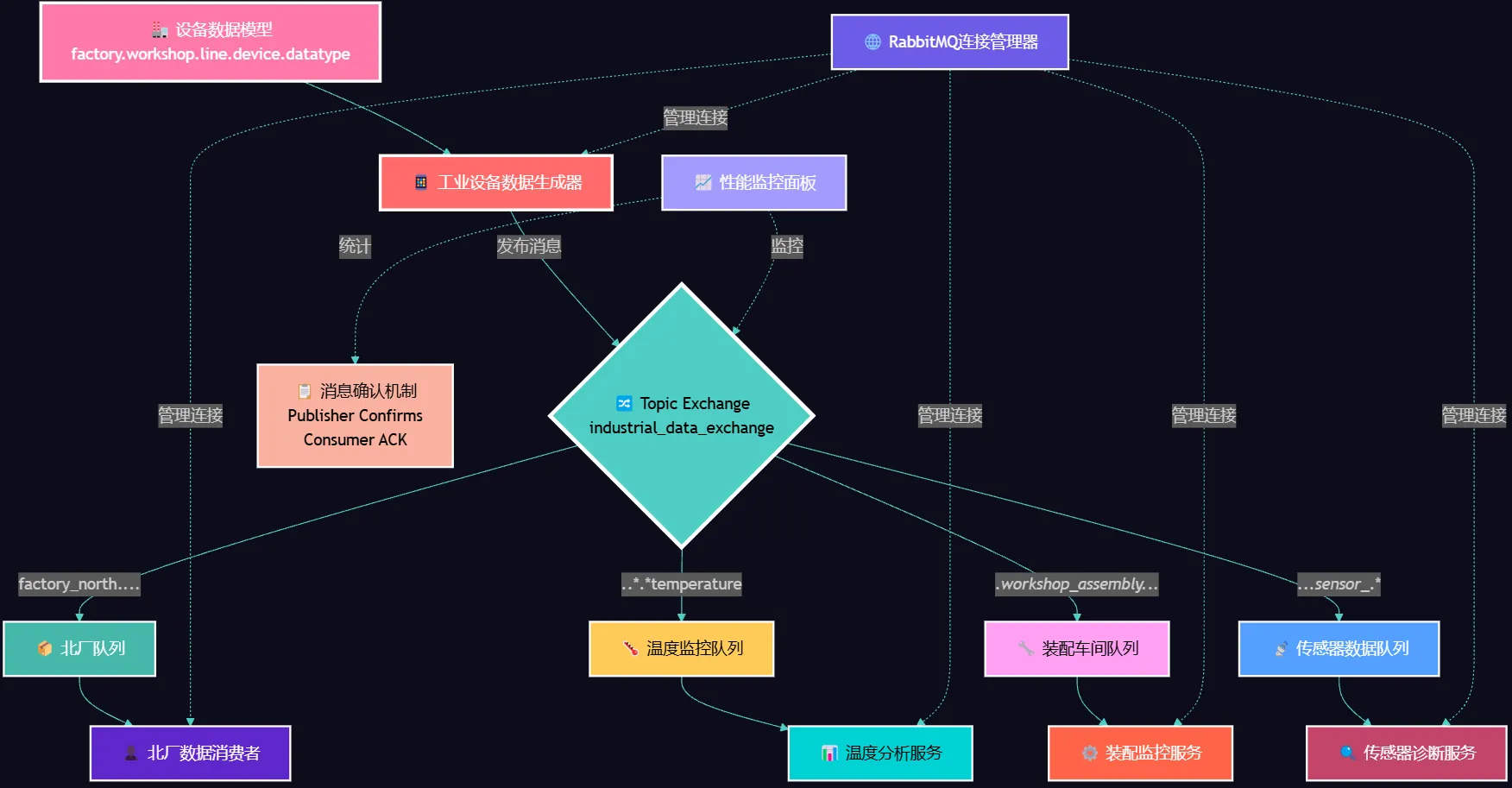

🚩 业务流程

💡 实战：工业数据采集系统

让我们构建一个真实的工业数据采集系统。这个系统需要处理多层级的工厂结构：工厂.车间.生产线.设备.数据类型

🔧 核心数据模型设计

c#
public class DeviceData
{
    public string Factory { get; set; }
    public string Workshop { get; set; }
    public string Line { get; set; }
    public string Device { get; set; }
    public string DataType { get; set; }
    public double Value { get; set; }
    public string Unit { get; set; }
    public DateTime Timestamp { get; set; }
    public string Status { get; set; }

    public string GetRoutingKey()
    {
        return $"{Factory}.{Workshop}.{Line}.{Device}.{DataType}";
    }
}

这个设计有什么巧妙之处？

层次清晰：每一层都有明确的业务含义
扩展性强：新增维度只需修改路由键生成逻辑
查询灵活：支持任意维度的数据过滤

🎪 RabbitMQ管理器的核心实现

c#
public class RabbitMQManager : IDisposable
{
    private IConnection _connection;
    private IChannel _channel;
    private readonly string _exchangeName = "industrial_data_exchange";

    public async Task InitializeAsync()
    {
        _connection = await _factory.CreateConnectionAsync();
        _channel = await _connection.CreateChannelAsync();

        // 关键：声明Topic Exchange
        await _channel.ExchangeDeclareAsync(
            exchange: _exchangeName,
            type: ExchangeType.Topic,  // 这里是核心！
            durable: true,
            autoDelete: false);
    }

    public async Task PublishDataAsync(DeviceData data)
    {
        var routingKey = data.GetRoutingKey();
        var message = JsonConvert.SerializeObject(data);
        var body = Encoding.UTF8.GetBytes(message);

        var properties = new BasicProperties
        {
            Persistent = true,  // 消息持久化
            ContentType = "application/json",
            DeliveryMode = DeliveryModes.Persistent
        };

        await _channel.BasicPublishAsync(
            exchange: _exchangeName,
            routingKey: routingKey,
            mandatory: false,
            basicProperties: properties,
            body: body);
    }
}

注意这几个关键点：

ExchangeType.Topic：这是实现灵活路由的基础
Persistent = true：确保重要的工业数据不会丢失
异步操作：提升系统整体性能

🎯 消费者的智能绑定

c#
public async Task<string> StartConsumerAsync(string bindingPattern)
{
    var queueName = $"consumer_queue_{Guid.NewGuid():N}";

    var queueResult = await _channel.QueueDeclareAsync(
        queue: queueName,
        durable: true,
        exclusive: false,
        autoDelete: false);

    // 核心：队列与Exchange的绑定
    await _channel.QueueBindAsync(
        queue: queueResult.QueueName,
        exchange: _exchangeName,
        routingKey: bindingPattern);  // 这里使用通配符模式

    // 设置QoS避免消息堆积
    await _channel.BasicQosAsync(0, 10, false);

    var consumer = new AsyncEventingBasicConsumer(_channel);
    consumer.ReceivedAsync += async (model, ea) =>
    {
        var message = Encoding.UTF8.GetString(ea.Body.ToArray());
        var deviceData = DeviceData.FromJson(message);

        // 处理业务逻辑...

        // 手动确认，确保消息被正确处理
        await _channel.BasicAckAsync(ea.DeliveryTag, false);
    };

    await _channel.BasicConsumeAsync(queueResult.QueueName, false, consumer);
    return queueResult.QueueName;
}

🎨 WinForms界面的巧妙设计

为了让这个系统更加直观，我们设计了一个完整的WinForms应用。界面分为四个主要部分：

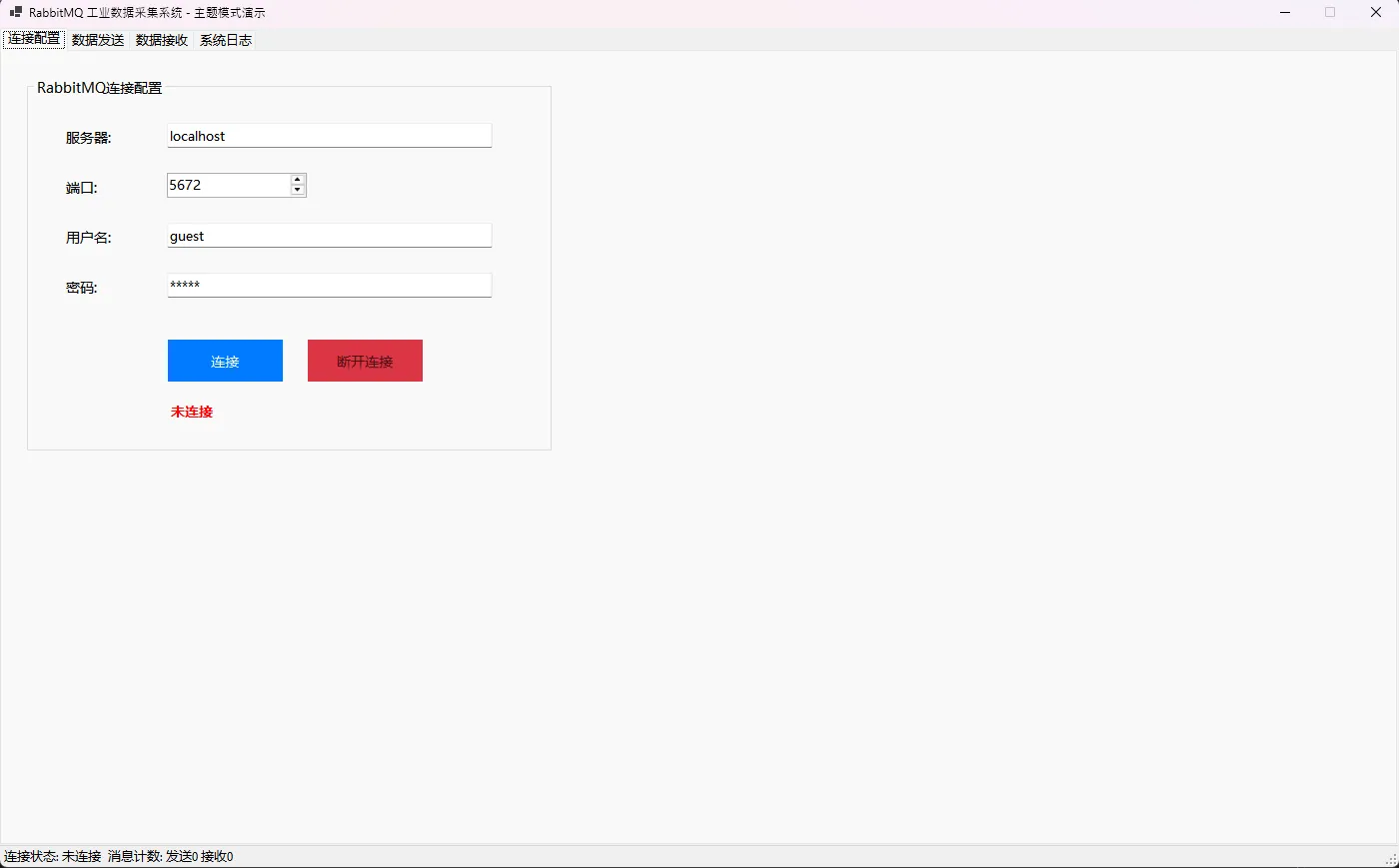

连接配置页：管理RabbitMQ连接参数

数据发送页：模拟设备数据生成和发送

数据接收页：配置消费者和查看接收到的数据

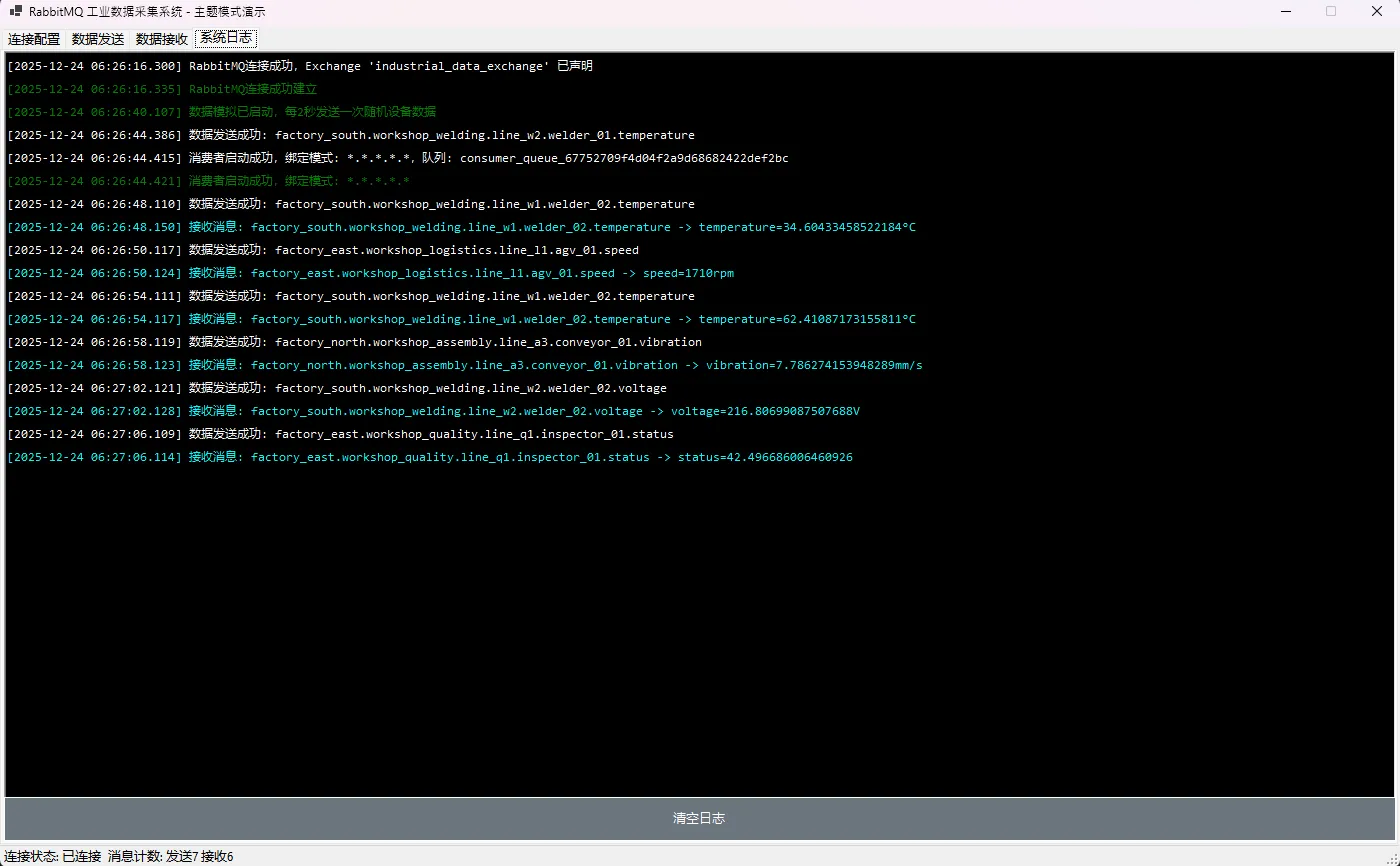

系统日志页：实时监控系统运行状态

c#

using Timer = System.Threading.Timer;

namespace AppDataCollectionMQ
{
    public partial class FrmMain : Form
    {
        private RabbitMQManager _rabbitMQManager;
        private Timer _simulationTimer;
        private Random _random = new Random();
        private int _sentMessagesCount = 0;
        private int _receivedMessagesCount = 0;
        private bool _isConnected = false;
        private bool _isConsumerRunning = false;
        private List<string> _activeConsumers = new List<string>();

        // 工业数据结构定义
        private readonly Dictionary<string, string[]> _industrialHierarchy = new Dictionary<string, string[]>
        {
            { "factories", new[] { "factory_north", "factory_south", "factory_east" } },
            { "factory_north", new[] { "workshop_assembly", "workshop_painting", "workshop_testing" } },
            { "factory_south", new[] { "workshop_welding", "workshop_machining", "workshop_packaging" } },
            { "factory_east", new[] { "workshop_quality", "workshop_logistics", "workshop_maintenance" } },
            { "workshop_assembly", new[] { "line_a1", "line_a2", "line_a3" } },
            { "workshop_painting", new[] { "line_p1", "line_p2" } },
            { "workshop_testing", new[] { "line_t1", "line_t2", "line_t3" } },
            { "workshop_welding", new[] { "line_w1", "line_w2" } },
            { "workshop_machining", new[] { "line_m1", "line_m2", "line_m3" } },
            { "workshop_packaging", new[] { "line_pk1", "line_pk2" } },
            { "workshop_quality", new[] { "line_q1", "line_q2" } },
            { "workshop_logistics", new[] { "line_l1", "line_l2" } },
            { "workshop_maintenance", new[] { "line_mt1", "line_mt2" } }
        };

        private readonly Dictionary<string, string[]> _deviceTypes = new Dictionary<string, string[]>
        {
            { "line_a", new[] { "robot_01", "robot_02", "conveyor_01", "sensor_temp_01" } },
            { "line_p", new[] { "spray_gun_01", "oven_01", "sensor_humidity_01" } },
            { "line_t", new[] { "tester_01", "scanner_01", "sensor_pressure_01" } },
            { "line_w", new[] { "welder_01", "welder_02", "gas_monitor_01" } },
            { "line_m", new[] { "cnc_01", "lathe_01", "mill_01", "sensor_vibration_01" } },
            { "line_pk", new[] { "packer_01", "labeler_01", "scale_01" } },
            { "line_q", new[] { "inspector_01", "camera_01", "gauge_01" } },
            { "line_l", new[] { "agv_01", "crane_01", "sorter_01" } },
            { "line_mt", new[] { "compressor_01", "pump_01", "valve_01" } }
        };

        private readonly Dictionary<string, string[]> _dataTypes = new Dictionary<string, string[]>
        {
            { "robot", new[] { "position", "speed", "load", "status", "error" } },
            { "conveyor", new[] { "speed", "load", "temperature", "vibration" } },
            { "sensor", new[] { "value", "status", "calibration", "alarm" } },
            { "spray_gun", new[] { "pressure", "flow_rate", "temperature", "status" } },
            { "oven", new[] { "temperature", "humidity", "power", "status" } },
            { "welder", new[] { "current", "voltage", "temperature", "arc_time" } },
            { "cnc", new[] { "spindle_speed", "feed_rate", "tool_wear", "vibration" } },
            { "packer", new[] { "pack_count", "speed", "material_level", "status" } },
            { "inspector", new[] { "pass_count", "fail_count", "accuracy", "status" } },
            { "agv", new[] { "battery_level", "position", "speed", "load" } }
        };

        public FrmMain()
        {
            InitializeComponent();
        }

        private void FrmMain_Load(object sender, EventArgs e)
        {
            InitializeControls();
            InitializePredefinedPatterns();
            InitializeDataGridView();
        }

        private void InitializeControls()
        {
            // 初始化工厂下拉框
            cmbFactory.Items.AddRange(_industrialHierarchy["factories"]);
            cmbFactory.SelectedIndex = 0;

            // 初始化状态下拉框
            cmbStatus.SelectedIndex = 0;

            // 初始化数据类型
            cmbDataType.Items.AddRange(new[] { "temperature", "pressure", "flow_rate", "speed", "position", "status", "vibration", "power" });
            cmbDataType.SelectedIndex = 0;

            UpdateRoutingKey();
        }

        private void InitializePredefinedPatterns()
        {
            var patterns = new[]
            {
                "*.*.*.*.*                     # 所有消息",
                "factory_north.*.*.*.*         # 北厂所有数据",
                "factory_south.*.*.*.*         # 南厂所有数据",
                "*.workshop_assembly.*.*.*     # 所有装配车间数据",
                "*.workshop_welding.*.*.*      # 所有焊接车间数据",
                "*.*.*.*temperature            # 所有温度数据",
                "*.*.*.*pressure               # 所有压力数据",
                "*.*.*.*status                 # 所有状态数据",
                "factory_north.workshop_*.line_*.robot_*.* # 北厂所有机器人",
                "*.*.line_a*.cnc_*.*          # 所有A线数控设备",
                "factory_*.workshop_quality.*.*.* # 所有质检车间",
                "*.*.*.sensor_*.*             # 所有传感器数据"
            };

            lstPredefinedPatterns.Items.AddRange(patterns);
        }

        private void InitializeDataGridView()
        {
            dgvReceivedData.Columns.Add("Timestamp", "时间戳");
            dgvReceivedData.Columns.Add("RoutingKey", "路由键");
            dgvReceivedData.Columns.Add("Factory", "工厂");
            dgvReceivedData.Columns.Add("Workshop", "车间");
            dgvReceivedData.Columns.Add("Line", "生产线");
            dgvReceivedData.Columns.Add("Device", "设备");
            dgvReceivedData.Columns.Add("DataType", "数据类型");
            dgvReceivedData.Columns.Add("Value", "数值");
            dgvReceivedData.Columns.Add("Unit", "单位");
            dgvReceivedData.Columns.Add("Status", "状态");

            dgvReceivedData.Columns["Timestamp"].Width = 120;
            dgvReceivedData.Columns["RoutingKey"].Width = 200;
        }

        private async void btnConnect_Click(object sender, EventArgs e)
        {
            try
            {
                btnConnect.Enabled = false;

                _rabbitMQManager = new RabbitMQManager(
                    txtHost.Text,
                    (int)nudPort.Value,
                    txtUsername.Text,
                    txtPassword.Text);

                _rabbitMQManager.LogMessage += OnLogMessage;
                _rabbitMQManager.MessageReceived += OnMessageReceived;

                await _rabbitMQManager.InitializeAsync();

                _isConnected = true;
                lblConnectionStatus.Text = "已连接";
                lblConnectionStatus.ForeColor = Color.Green;
                lblStatusConnection.Text = "连接状态: 已连接";

                btnConnect.Enabled = false;
                btnDisconnect.Enabled = true;

                // 启用其他控件
                EnablePublisherControls(true);
                EnableConsumerControls(true);

                LogMessage("RabbitMQ连接成功建立", Color.Green);
            }
            catch (Exception ex)
            {
                LogMessage($"连接失败: {ex.Message}", Color.Red);
                btnConnect.Enabled = true;
                lblConnectionStatus.Text = "连接失败";
                lblConnectionStatus.ForeColor = Color.Red;
            }
        }

        private void btnDisconnect_Click(object sender, EventArgs e)
        {
            DisconnectRabbitMQ();
        }

        private void DisconnectRabbitMQ()
        {
            try
            {
                if (_simulationTimer != null)
                {
                    _simulationTimer.Change(Timeout.Infinite, Timeout.Infinite);
                    _simulationTimer.Dispose();
                    _simulationTimer = null;
                    btnStartSimulation.Enabled = true;
                    btnStopSimulation.Enabled = false;
                }

                _rabbitMQManager?.Dispose();
                _rabbitMQManager = null;

                _isConnected = false;
                _isConsumerRunning = false;
                _activeConsumers.Clear();

                lblConnectionStatus.Text = "未连接";
                lblConnectionStatus.ForeColor = Color.Red;
                lblStatusConnection.Text = "连接状态: 未连接";

                btnConnect.Enabled = true;
                btnDisconnect.Enabled = false;

                EnablePublisherControls(false);
                EnableConsumerControls(false);

                LogMessage("RabbitMQ连接已断开", Color.Orange);
            }
            catch (Exception ex)
            {
                LogMessage($"断开连接时发生错误: {ex.Message}", Color.Red);
            }
        }

        private void EnablePublisherControls(bool enabled)
        {
            btnSendData.Enabled = enabled;
            btnStartSimulation.Enabled = enabled;
        }

        private void EnableConsumerControls(bool enabled)
        {
            btnStartConsumer.Enabled = enabled && !_isConsumerRunning;
            btnStopConsumer.Enabled = enabled && _isConsumerRunning;
        }

        private void cmb_SelectedIndexChanged(object sender, EventArgs e)
        {
            var comboBox = sender as ComboBox;

            if (comboBox == cmbFactory)
            {
                // 更新车间列表
                var selectedFactory = cmbFactory.SelectedItem?.ToString();
                if (!string.IsNullOrEmpty(selectedFactory) && _industrialHierarchy.ContainsKey(selectedFactory))
                {
                    cmbWorkshop.Items.Clear();
                    cmbWorkshop.Items.AddRange(_industrialHierarchy[selectedFactory]);
                    cmbWorkshop.SelectedIndex = 0;
                }
            }
            else if (comboBox == cmbWorkshop)
            {
                // 更新生产线列表
                var selectedWorkshop = cmbWorkshop.SelectedItem?.ToString();
                if (!string.IsNullOrEmpty(selectedWorkshop) && _industrialHierarchy.ContainsKey(selectedWorkshop))
                {
                    cmbLine.Items.Clear();
                    cmbLine.Items.AddRange(_industrialHierarchy[selectedWorkshop]);
                    cmbLine.SelectedIndex = 0;
                }
            }
            else if (comboBox == cmbLine)
            {
                // 更新设备列表
                var selectedLine = cmbLine.SelectedItem?.ToString();
                if (!string.IsNullOrEmpty(selectedLine))
                {
                    var linePrefix = selectedLine.Substring(0, selectedLine.LastIndexOf('_') + 1);
                    var deviceKey = _deviceTypes.Keys.FirstOrDefault(k => linePrefix.StartsWith(k));

                    cmbDevice.Items.Clear();
                    if (!string.IsNullOrEmpty(deviceKey))
                    {
                        cmbDevice.Items.AddRange(_deviceTypes[deviceKey]);
                        cmbDevice.SelectedIndex = 0;
                    }
                }
            }
            else if (comboBox == cmbDevice)
            {
                // 更新数据类型（基于设备类型）
                var selectedDevice = cmbDevice.SelectedItem?.ToString();
                if (!string.IsNullOrEmpty(selectedDevice))
                {
                    var devicePrefix = selectedDevice.Split('_')[0];
                    if (_dataTypes.ContainsKey(devicePrefix))
                    {
                        cmbDataType.Items.Clear();
                        cmbDataType.Items.AddRange(_dataTypes[devicePrefix]);
                        cmbDataType.SelectedIndex = 0;
                    }
                }
            }

            UpdateRoutingKey();
            UpdateUnitAndValue();
        }

        private void UpdateRoutingKey()
        {
            if (cmbFactory.SelectedItem != null && cmbWorkshop.SelectedItem != null &&
                cmbLine.SelectedItem != null && cmbDevice.SelectedItem != null &&
                cmbDataType.SelectedItem != null)
            {
                var routingKey = $"{cmbFactory.SelectedItem}.{cmbWorkshop.SelectedItem}.{cmbLine.SelectedItem}.{cmbDevice.SelectedItem}.{cmbDataType.SelectedItem}";
                txtRoutingKey.Text = routingKey;
            }
        }

        private void UpdateUnitAndValue()
        {
            var dataType = cmbDataType.SelectedItem?.ToString();
            if (!string.IsNullOrEmpty(dataType))
            {
                switch (dataType.ToLower())
                {
                    case "temperature":
                        txtUnit.Text = "°C";
                        txtValue.Text = _random.Next(20, 80).ToString();
                        break;
                    case "pressure":
                        txtUnit.Text = "bar";
                        txtValue.Text = (_random.NextDouble() * 10).ToString("F2");
                        break;
                    case "speed":
                        txtUnit.Text = "rpm";
                        txtValue.Text = _random.Next(100, 3000).ToString();
                        break;
                    case "position":
                        txtUnit.Text = "mm";
                        txtValue.Text = (_random.NextDouble() * 1000).ToString("F1");
                        break;
                    case "power":
                        txtUnit.Text = "kW";
                        txtValue.Text = (_random.NextDouble() * 50).ToString("F1");
                        break;
                    case "vibration":
                        txtUnit.Text = "mm/s";
                        txtValue.Text = (_random.NextDouble() * 5).ToString("F2");
                        break;
                    case "flow_rate":
                        txtUnit.Text = "L/min";
                        txtValue.Text = (_random.NextDouble() * 100).ToString("F1");
                        break;
                    default:
                        txtUnit.Text = "";
                        txtValue.Text = _random.Next(0, 100).ToString();
                        break;
                }
            }
        }

        private async void btnSendData_Click(object sender, EventArgs e)
        {
            if (!_isConnected || _rabbitMQManager == null)
            {
                MessageBox.Show("请先连接到RabbitMQ服务器", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return;
            }

            try
            {
                var deviceData = CreateDeviceData();
                await _rabbitMQManager.PublishDataAsync(deviceData);

                _sentMessagesCount++;
                UpdateMessageCount();

                LogMessage($"数据发送成功: {deviceData.GetRoutingKey()}", Color.Blue);
            }
            catch (Exception ex)
            {
                LogMessage($"发送数据失败: {ex.Message}", Color.Red);
            }
        }

        private DeviceData CreateDeviceData()
        {
            return new DeviceData
            {
                Factory = cmbFactory.SelectedItem?.ToString() ?? "",
                Workshop = cmbWorkshop.SelectedItem?.ToString() ?? "",
                Line = cmbLine.SelectedItem?.ToString() ?? "",
                Device = cmbDevice.SelectedItem?.ToString() ?? "",
                DataType = cmbDataType.SelectedItem?.ToString() ?? "",
                Value = double.TryParse(txtValue.Text, out var value) ? value : 0,
                Unit = txtUnit.Text,
                Status = cmbStatus.SelectedItem?.ToString() ?? "",
                Timestamp = DateTime.Now
            };
        }

        private async void btnStartSimulation_Click(object sender, EventArgs e)
        {
            if (!_isConnected || _rabbitMQManager == null)
            {
                MessageBox.Show("请先连接到RabbitMQ服务器", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return;
            }

            btnStartSimulation.Enabled = false;
            btnStopSimulation.Enabled = true;

            _simulationTimer = new Timer(async _ => await SimulateDeviceData(), null, TimeSpan.Zero, TimeSpan.FromSeconds(2));

            LogMessage("数据模拟已启动，每2秒发送一次随机设备数据", Color.Green);
        }

        private void btnStopSimulation_Click(object sender, EventArgs e)
        {
            if (_simulationTimer != null)
            {
                _simulationTimer.Change(Timeout.Infinite, Timeout.Infinite);
                _simulationTimer.Dispose();
                _simulationTimer = null;
            }

            btnStartSimulation.Enabled = true;
            btnStopSimulation.Enabled = false;

            LogMessage("数据模拟已停止", Color.Orange);
        }

        private async Task SimulateDeviceData()
        {
            try
            {
                // 随机选择工厂结构
                var factories = _industrialHierarchy["factories"];
                var factory = factories[_random.Next(factories.Length)];

                var workshops = _industrialHierarchy[factory];
                var workshop = workshops[_random.Next(workshops.Length)];

                var lines = _industrialHierarchy[workshop];
                var line = lines[_random.Next(lines.Length)];

                // 从 "line_a1" 提取 "line_a"
                var linePrefixMatch = System.Text.RegularExpressions.Regex.Match(line, @"^(line_[a-z]+)");
                string deviceKey = null;

                if (linePrefixMatch.Success)
                {
                    var lineTypePrefix = linePrefixMatch.Groups[1].Value; // "line_a"
                    deviceKey = _deviceTypes.Keys.FirstOrDefault(k => k == lineTypePrefix);
                }

                if (!string.IsNullOrEmpty(deviceKey))
                {
                    var devices = _deviceTypes[deviceKey];
                    var device = devices[_random.Next(devices.Length)];

                    var devicePrefix = device.Split('_')[0];
                    if (_dataTypes.ContainsKey(devicePrefix))
                    {
                        var dataTypes = _dataTypes[devicePrefix];
                        var dataType = dataTypes[_random.Next(dataTypes.Length)];

                        var deviceData = new DeviceData
                        {
                            Factory = factory,
                            Workshop = workshop,
                            Line = line,
                            Device = device,
                            DataType = dataType,
                            Value = GenerateRandomValue(dataType),
                            Unit = GetUnitForDataType(dataType),
                            Status = GetRandomStatus(),
                            Timestamp = DateTime.Now
                        };

                        await _rabbitMQManager.PublishDataAsync(deviceData);

                        Invoke(new Action(() =>
                        {
                            _sentMessagesCount++;
                            UpdateMessageCount();
                        }));
                    }
                }
                else
                {
                    // 添加日志来调试
                    Invoke(new Action(() => LogMessage($"无法找到生产线 {line} 对应的设备类型", Color.Yellow)));
                }
            }
            catch (Exception ex)
            {
                Invoke(new Action(() => LogMessage($"模拟数据发送失败: {ex.Message}", Color.Red)));
            }
        }


        private double GenerateRandomValue(string dataType)
        {
            switch (dataType.ToLower())
            {
                case "temperature": return _random.Next(15, 85) + _random.NextDouble();
                case "pressure": return _random.NextDouble() * 15;
                case "speed": return _random.Next(50, 4000);
                case "position": return _random.NextDouble() * 2000;
                case "power": return _random.NextDouble() * 100;
                case "vibration": return _random.NextDouble() * 8;
                case "flow_rate": return _random.NextDouble() * 150;
                case "current": return _random.NextDouble() * 200;
                case "voltage": return 200 + _random.NextDouble() * 50;
                default: return _random.NextDouble() * 100;
            }
        }

        private string GetUnitForDataType(string dataType)
        {
            switch (dataType.ToLower())
            {
                case "temperature": return "°C";
                case "pressure": return "bar";
                case "speed": return "rpm";
                case "position": return "mm";
                case "power": return "kW";
                case "vibration": return "mm/s";
                case "flow_rate": return "L/min";
                case "current": return "A";
                case "voltage": return "V";
                default: return "";
            }
        }

        private string GetRandomStatus()
        {
            var statuses = new[] { "正常", "正常", "正常", "警告", "故障" }; // 权重倾向正常
            return statuses[_random.Next(statuses.Length)];
        }

        private async void btnStartConsumer_Click(object sender, EventArgs e)
        {
            if (!_isConnected || _rabbitMQManager == null)
            {
                MessageBox.Show("请先连接到RabbitMQ服务器", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return;
            }

            var bindingPattern = txtBindingPattern.Text.Trim();
            if (string.IsNullOrEmpty(bindingPattern))
            {
                MessageBox.Show("请输入绑定模式", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return;
            }

            try
            {
                var queueName = await _rabbitMQManager.StartConsumerAsync(bindingPattern);
                _activeConsumers.Add(queueName);

                _isConsumerRunning = true;
                btnStartConsumer.Enabled = false;
                btnStopConsumer.Enabled = true;

                LogMessage($"消费者启动成功，绑定模式: {bindingPattern}", Color.Green);
            }
            catch (Exception ex)
            {
                LogMessage($"启动消费者失败: {ex.Message}", Color.Red);
            }
        }

        private void btnStopConsumer_Click(object sender, EventArgs e)
        {
            // 注意：在实际应用中，你可能需要更复杂的消费者管理机制
            _isConsumerRunning = false;
            _activeConsumers.Clear();

            btnStartConsumer.Enabled = true;
            btnStopConsumer.Enabled = false;

            LogMessage("消费者已停止", Color.Orange);
        }

        private void lstPredefinedPatterns_DoubleClick(object sender, EventArgs e)
        {
            if (lstPredefinedPatterns.SelectedItem != null)
            {
                var selectedPattern = lstPredefinedPatterns.SelectedItem.ToString();
                var pattern = selectedPattern.Split('#')[0].Trim();
                txtBindingPattern.Text = pattern;
            }
        }

        private void btnClearLogs_Click(object sender, EventArgs e)
        {
            rtbLogs.Clear();
        }

        private void OnLogMessage(string message)
        {
            Invoke(new Action(() => LogMessage(message, Color.White)));
        }

        private void OnMessageReceived(string routingKey, DeviceData deviceData)
        {
            Invoke(new Action(() =>
            {
                _receivedMessagesCount++;
                UpdateMessageCount();

                // 添加到DataGridView
                var row = new object[]
                {
                    deviceData.Timestamp.ToString("HH:mm:ss.fff"),
                    routingKey,
                    deviceData.Factory,
                    deviceData.Workshop,
                    deviceData.Line,
                    deviceData.Device,
                    deviceData.DataType,
                    deviceData.Value.ToString("F2"),
                    deviceData.Unit,
                    deviceData.Status
                };

                dgvReceivedData.Rows.Insert(0, row);

                // 保持最多1000行
                if (dgvReceivedData.Rows.Count > 1000)
                {
                    dgvReceivedData.Rows.RemoveAt(dgvReceivedData.Rows.Count - 1);
                }

                LogMessage($"接收消息: {routingKey} -> {deviceData.DataType}={deviceData.Value}{deviceData.Unit}", Color.Cyan);
            }));
        }

        private void LogMessage(string message, Color color)
        {
            if (rtbLogs.InvokeRequired)
            {
                rtbLogs.Invoke(new Action(() => LogMessage(message, color)));
                return;
            }

            var timestamp = DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss.fff");
            var logLine = $"[{timestamp}] {message}\n";

            rtbLogs.SelectionStart = rtbLogs.TextLength;
            rtbLogs.SelectionLength = 0;
            rtbLogs.SelectionColor = color;
            rtbLogs.AppendText(logLine);
            rtbLogs.ScrollToCaret();

            // 保持最多10000行
            if (rtbLogs.Lines.Length > 10000)
            {
                var lines = rtbLogs.Lines.Skip(1000).ToArray();
                rtbLogs.Lines = lines;
            }
        }

        private void UpdateMessageCount()
        {
            lblStatusMessages.Text = $"消息计数: 发送{_sentMessagesCount} 接收{_receivedMessagesCount}";
        }

        private void FrmMain_FormClosing(object sender, FormClosingEventArgs e)
        {
            DisconnectRabbitMQ();
        }
    }
}

⚡ 性能优化的几个关键点

1. 连接复用策略

text
// ❌ 错误做法：每次操作都创建新连接
var factory = new ConnectionFactory();
using var connection = await factory.CreateConnectionAsync();

// ✅ 正确做法：复用连接，多个Channel
private IConnection _sharedConnection;
private readonly ConcurrentQueue<IChannel> _channelPool;

2. QoS设置的艺术

text
// 根据实际情况调整prefetch值
await _channel.BasicQosAsync(
    prefetchSize: 0,      // 不限制消息大小
    prefetchCount: 10,    // 限制未确认消息数量
    global: false);       // 仅应用于当前channel

经验法则： prefetchCount = 总往返时间 / 单个消息处理时间

3. 消息持久化与确认机制

text
// 发布者确认模式
await _channel.ConfirmSelectAsync();
await _channel.BasicPublishAsync(/* 参数 */);
await _channel.WaitForConfirmsAsync(TimeSpan.FromSeconds(5));

// 消费者手动确认
await _channel.BasicAckAsync(deliveryTag, multiple: false);

🚨 常见陷阱与解决方案

陷阱1：路由键设计不合理

问题： 使用固定分隔符，缺乏层次结构

解决： 采用点分层次结构，便于通配符匹配

陷阱2：忽略消息堆积

问题： 消费者处理速度跟不上生产速度

解决： 合理设置QoS，监控队列长度，必要时启用懒队列

陷阱3：连接管理混乱

问题： 频繁创建销毁连接，影响性能

解决： 使用连接池，合理复用Channel

🎊 实际应用场景扩展

这套Topic模式不仅适用于工业场景，还可以应用于：

电商系统：region.category.brand.product.event

华东地区的手机品牌促销：east.mobile.*.*.promotion
所有地区的苹果产品事件：*.*.apple.*.*

金融交易：market.instrument.currency.action.level

美股市场的所有交易：us.*.*.*.*
高优先级的风控警告：*.*.*.risk.high

游戏系统：server.zone.player.action.type

特定服务器的PVP事件：server01.*.*.pvp.*
所有充值相关事件：*.*.*.*payment

🔮 技术展望与最佳实践

随着云原生技术的发展，RabbitMQ也在不断进化。Quorum队列、Streams等新特性为高可用性和大吞吐量场景提供了更好的支持。

但无论技术如何发展，Topic模式的核心优势——灵活的路由控制——始终是构建复杂分布式系统的重要工具。

记住这几个要诀：

路由键设计要有层次感
通配符使用要克制，避免过度复杂
监控队列状态，及时发现性能瓶颈
测试各种边界情况，确保系统稳定性

💬 思考与交流

最后，抛给大家几个思考题：

在你的项目中，哪些场景可以用Topic模式来简化系统架构？
如何在保证灵活性的同时，避免路由规则过于复杂？

如果你在使用RabbitMQ时遇到过什么有趣的问题，或者有什么独特的应用场景，欢迎在评论区分享！

技术要点回顾：

Topic Exchange是实现复杂消息路由的最佳选择
合理的路由键设计是系统可维护性的关键
性能优化需要在吞吐量和资源消耗间找平衡

收藏级代码模板： 本文提供的RabbitMQManager类可以直接应用到你的项目中，记得根据实际需求调整参数配置！

觉得这篇文章对你有帮助吗？请转发给更多需要的同行，让更多C#开发者掌握这个强大的消息路由技巧！

---

关注我的公众号，获取更多实用的C#开发技巧和最佳实践！

🚀 C#工程师必看：RabbitMQ主题模式实战指南

目录
