你是否还在为复杂的工业图形绘制而头疼？传统的GDI+绘图库性能差、效果单一，而Web前端方案又无法满足桌面应用的需求。今天，我将带你用C#和SkiaSharp构建一个功能完整的工业管线绘制系统，不仅支持实时交互编辑，还能展示流体动画效果。

这不是纸上谈兵的Demo，而是一个可以直接用于生产环境的完整解决方案！从基础绘制到高级交互，从性能优化到用户体验，我们将一步步解析每个关键技术点。

🎯 解决的核心问题

传统绘图方案的痛点

在工业软件开发中，我们经常遇到这些难题：

GDI+性能瓶颈：复杂图形卡顿严重
交互体验差：拖拽、编辑功能实现困难
动画效果单一：难以实现流体流动等动态效果
跨平台支持弱：Windows专有API限制

SkiaSharp的优势

SkiaSharp作为Google Skia的C#封装，完美解决了这些问题：

硬件加速渲染，性能卓越
丰富的绘图API，效果专业
跨平台支持，一套代码多端运行
与WinForms/WPF无缝集成

💡 系统架构设计

🏗️ 核心数据模型

首先定义管线段的数据结构，这是整个系统的基础：

c#
public class PipelineSegment
{
    public SKPoint StartPoint { get; set; }
    public SKPoint EndPoint { get; set; }
    public float CurvatureStrength { get; set; } // 弧度强度：-1到1
    public Guid Id { get; set; }
}

public class PipelineStyle
{
    public float PipeWidth { get; set; }
    public SKColor PipeColor { get; set; }
    public SKColor FlowColor { get; set; }
    public float FlowSpeed { get; set; }
    public PipelineType PipelineType { get; set; }
}

设计亮点：

CurvatureStrength让每个管线段都可以调整弧度，无需复杂的类型区分
统一的样式管理，便于主题切换和批量操作

🎨 绘制引擎核心

SkiaSharp的绘制逻辑清晰简洁，性能出色：

c#
private void DrawPipelineSegment(SKCanvas canvas, PipelineSegment segment, SKPaint paint)
{
    if (Math.Abs(segment.CurvatureStrength) < 0.01f)
    {
        // 直线段 - 最优性能
        canvas.DrawLine(segment.StartPoint, segment.EndPoint, paint);
    }
    else
    {
        // 弧形段 - 二次贝塞尔曲线
        var controlPoint = GetCurvatureControlPoint(segment);
        using (var path = new SKPath())
        {
            path.MoveTo(segment.StartPoint);
            path.QuadTo(controlPoint, segment.EndPoint);
            canvas.DrawPath(path, paint);
        }
    }
}

技术要点：

智能判断直线/曲线，避免不必要的路径计算
使用using确保Path对象及时释放，防止内存泄漏

🔥 交互系统实现

📍 精确碰撞检测

实现专业级的图形编辑器，精确的碰撞检测是关键：

c#
private bool IsPointOnLine(SKPoint point, SKPoint start, SKPoint end)
{
    var A = point.X - start.X;
    var B = point.Y - start.Y;
    var C = end.X - start.X;
    var D = end.Y - start.Y;

    var dot = A * C + B * D;
    var lenSq = C * C + D * D;

    if (lenSq == 0) return SKPoint.Distance(point, start) <= HIT_TOLERANCE;

    var param = dot / lenSq;

    SKPoint closestPoint;
    if (param < 0)
        closestPoint = start;
    else if (param > 1)
        closestPoint = end;
    else
        closestPoint = new SKPoint(start.X + param * C, start.Y + param * D);

    return SKPoint.Distance(point, closestPoint) <= HIT_TOLERANCE;
}

算法解析：

使用向量投影计算点到直线的最短距离
边界条件处理确保线段范围内的准确检测
HIT_TOLERANCE常量提供合适的点击容差

🎯 多模式拖拽系统

支持整体移动、端点调整、弧度控制等多种拖拽模式：

c#
private void SkiaCanvas_MouseMove(object sender, MouseEventArgs e)
{
    var mousePos = new SKPoint(e.X, e.Y);

    if (isDragging && selectedSegment != null)
    {
        var deltaX = mousePos.X - lastMousePosition.X;
        var deltaY = mousePos.Y - lastMousePosition.Y;

        switch (currentDragMode)
        {
            case DragMode.Move:
                // 移动整个管线段
                selectedSegment.StartPoint = new SKPoint(
                    selectedSegment.StartPoint.X + deltaX,
                    selectedSegment.StartPoint.Y + deltaY
                );
                selectedSegment.EndPoint = new SKPoint(
                    selectedSegment.EndPoint.X + deltaX,
                    selectedSegment.EndPoint.Y + deltaY
                );
                break;

            case DragMode.CurvatureControl:
                // 实时调整弧度
                AdjustCurvatureStrength(mousePos);
                break;
        }

        skiaCanvas.Invalidate(); // 触发重绘
    }
}

用户体验优化：

不同拖拽模式对应不同鼠标指针，直观明了
实时反馈，所见即所得的编辑体验

⚡ 流体动画系统

🌊 动态流体效果

通过虚线动画模拟不同类型管道的流体特性：

c#
private void DrawFlowAnimation(SKCanvas canvas)
{
    if (!isAnimationEnabled) return;

    using (var paint = new SKPaint())
    {
        paint.StrokeWidth = selectedStyle.PipeWidth - 12;
        paint.Style = SKPaintStyle.Stroke;
        paint.StrokeCap = SKStrokeCap.Round;
        paint.IsAntialias = true;

        float[] intervals;
        SKColor animationColor;

        // 根据管线类型设置不同动画效果
        switch (selectedStyle.PipelineType)
        {
            case PipelineType.Gas:
                intervals = new float[] { 10, 15 }; // 短划线模拟气体
                animationColor = SKColors.LimeGreen;
                break;
            case PipelineType.Steam:
                intervals = new float[] { 5, 5 }; // 密集短划线模拟蒸汽
                animationColor = SKColors.WhiteSmoke;
                break;
            default:
                intervals = new float[] { 20, 10 };
                animationColor = selectedStyle.FlowColor;
                break;
        }

        paint.Color = animationColor;
        paint.PathEffect = SKPathEffect.CreateDash(intervals, animationOffset);

        foreach (var segment in pipelineSegments)
        {
            DrawPipelineSegment(canvas, segment, paint);
        }
    }
}

动画优化技巧：

使用Timer控制动画频率，平衡流畅度与性能
不同管道类型使用差异化的虚线模式，增强真实感

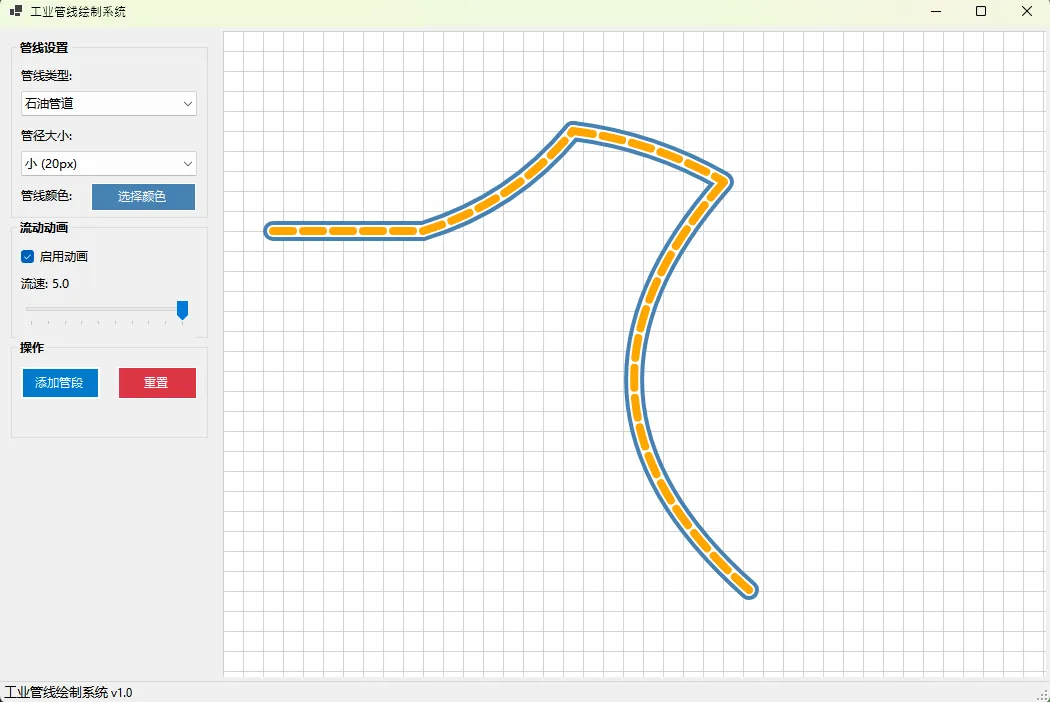

🧑‍💻 完整代码

c#
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Linq;
using System.Windows.Forms;
using SkiaSharp;
using SkiaSharp.Views.Desktop;
using Timer = System.Windows.Forms.Timer;

namespace AppPipelineDrawing
{
    public partial class FrmMain : Form
    {
        private Timer animationTimer;
        private float animationOffset = 0;
        private List<PipelineSegment> pipelineSegments;
        private PipelineStyle selectedStyle;
        private bool isAnimationEnabled = true;

        private PipelineSegment selectedSegment = null;
        private bool isDragging = false;
        private DragMode currentDragMode = DragMode.None;
        private SKPoint lastMousePosition;
        private const float HIT_TOLERANCE = 15f;
        private const float HANDLE_SIZE = 8f;
        private const float CONTROL_HANDLE_SIZE = 6f;

        public FrmMain()
        {
            InitializeComponent();
            InitializePipeline();
            SetupAnimation();
            SetupMouseEvents();
            SetupKeyboardEvents();
        }

        private void SetupMouseEvents()
        {
            skiaCanvas.MouseDown += SkiaCanvas_MouseDown;
            skiaCanvas.MouseMove += SkiaCanvas_MouseMove;
            skiaCanvas.MouseUp += SkiaCanvas_MouseUp;
            skiaCanvas.MouseLeave += SkiaCanvas_MouseLeave;
        }

        private void SetupKeyboardEvents()
        {
            this.KeyPreview = true;
            this.KeyDown += FrmMain_KeyDown;
        }

        private void FrmMain_KeyDown(object sender, KeyEventArgs e)
        {
            if (e.KeyCode == Keys.Delete && selectedSegment != null)
            {
                DeleteSelectedSegment();
                e.Handled = true;
            }
            else if (e.KeyCode == Keys.Escape)
            {
                selectedSegment = null;
                skiaCanvas.Invalidate();
                UpdateStatusLabel("已取消选择");
                e.Handled = true;
            }
        }

        private void DeleteSelectedSegment()
        {
            if (selectedSegment == null) return;

            var segmentId = selectedSegment.Id.ToString().Substring(0, 8);
            pipelineSegments.Remove(selectedSegment);
            selectedSegment = null;
            skiaCanvas.Invalidate();
            UpdateStatusLabel($"已删除管线段 ID: {segmentId}...");
        }

        private void InitializePipeline()
        {
            pipelineSegments = new List<PipelineSegment>();
            selectedStyle = new PipelineStyle
            {
                PipeWidth = 40,
                PipeColor = SKColors.SteelBlue,
                FlowColor = SKColors.LightBlue,
                FlowSpeed = 2.0f,
                PipelineType = PipelineType.Oil
            };

            CreateSamplePipeline();
        }

        private void CreateSamplePipeline()
        {
            pipelineSegments.Clear();

            pipelineSegments.Add(new PipelineSegment
            {
                StartPoint = new SKPoint(50, 200),
                EndPoint = new SKPoint(200, 200),
                CurvatureStrength = 0f,
                Id = Guid.NewGuid()
            });

            pipelineSegments.Add(new PipelineSegment
            {
                StartPoint = new SKPoint(200, 200),
                EndPoint = new SKPoint(350, 100),
                CurvatureStrength = 0.3f,
                Id = Guid.NewGuid()
            });

            pipelineSegments.Add(new PipelineSegment
            {
                StartPoint = new SKPoint(350, 100),
                EndPoint = new SKPoint(500, 150),
                CurvatureStrength = -0.2f,
                Id = Guid.NewGuid()
            });

            skiaCanvas.Invalidate();
        }

        private void SetupAnimation()
        {
            animationTimer = new Timer();
            animationTimer.Interval = 50;
            animationTimer.Tick += AnimationTimer_Tick;
            animationTimer.Start();
        }

        private void AnimationTimer_Tick(object sender, EventArgs e)
        {
            if (isAnimationEnabled)
            {
                animationOffset += selectedStyle.FlowSpeed;
                if (animationOffset > 50)
                    animationOffset = 0;

                skiaCanvas.Invalidate();
            }
        }

        #region 鼠标事件处理

        private void SkiaCanvas_MouseDown(object sender, MouseEventArgs e)
        {
            if (e.Button == MouseButtons.Right)
            {
                var mousePos = new SKPoint(e.X, e.Y);
                var hitSegment = HitTestSegment(mousePos);

                if (hitSegment != null)
                {
                    selectedSegment = hitSegment;
                    skiaCanvas.Invalidate();
                    ShowContextMenu(e.Location);
                    return;
                }
            }

            if (e.Button != MouseButtons.Left) return;

            var mousePosLeft = new SKPoint(e.X, e.Y);
            lastMousePosition = mousePosLeft;

            if (selectedSegment != null)
            {
                var dragMode = GetDragMode(selectedSegment, mousePosLeft);
                if (dragMode != DragMode.None)
                {
                    currentDragMode = dragMode;
                    isDragging = true;
                    skiaCanvas.Cursor = GetCursorForDragMode(dragMode);
                    return;
                }
            }

            var hitSegmentLeft = HitTestSegment(mousePosLeft);
            if (hitSegmentLeft != null)
            {
                selectedSegment = hitSegmentLeft;
                currentDragMode = DragMode.Move;
                isDragging = true;
                skiaCanvas.Cursor = Cursors.SizeAll;
                UpdateStatusLabel($"选中管线段 ID: {selectedSegment.Id.ToString().Substring(0, 8)}... 弧度: {selectedSegment.CurvatureStrength:F2} [Del键删除]");
            }
            else
            {
                selectedSegment = null;
                UpdateStatusLabel("工业管线绘制系统 v1.0");
            }

            skiaCanvas.Invalidate();
        }

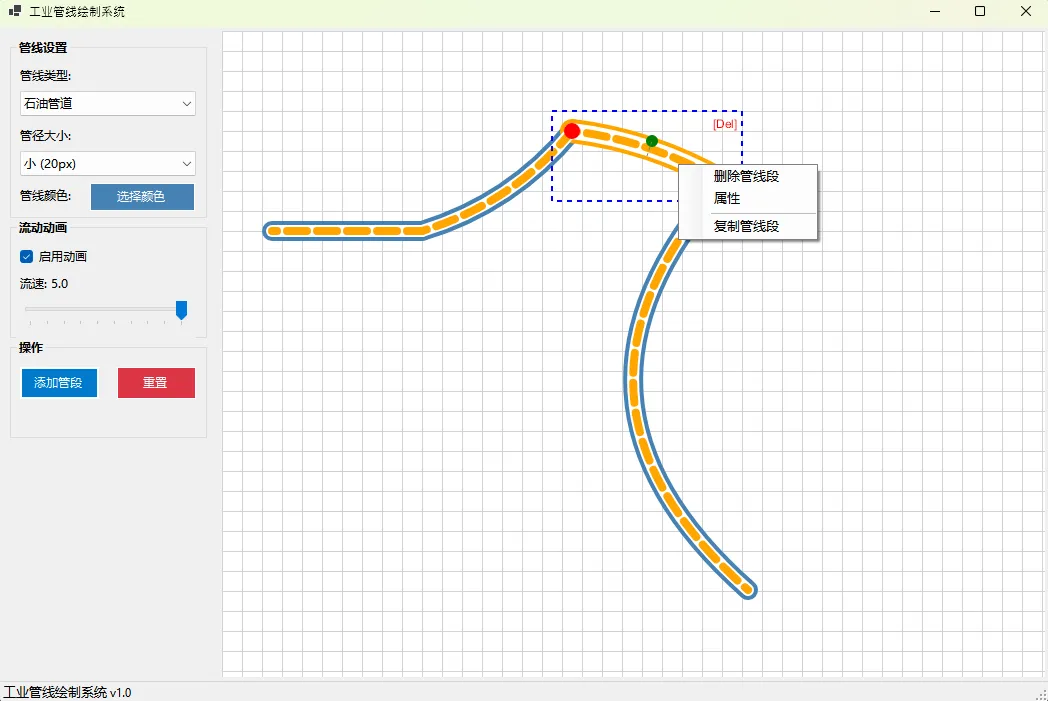

        private void ShowContextMenu(Point location)
        {
            var contextMenu = new ContextMenuStrip();

            var deleteItem = new ToolStripMenuItem("删除管线段");
            deleteItem.Click += (s, e) => DeleteSelectedSegment();
            contextMenu.Items.Add(deleteItem);

            var propertiesItem = new ToolStripMenuItem("属性");
            propertiesItem.Click += (s, e) => ShowSegmentProperties();
            contextMenu.Items.Add(propertiesItem);

            contextMenu.Items.Add(new ToolStripSeparator());

            var duplicateItem = new ToolStripMenuItem("复制管线段");
            duplicateItem.Click += (s, e) => DuplicateSelectedSegment();
            contextMenu.Items.Add(duplicateItem);

            contextMenu.Show(skiaCanvas, location);
        }

        private void ShowSegmentProperties()
        {
            if (selectedSegment == null) return;

            var message = $"管线段属性:\n\n" +
                         $"ID: {selectedSegment.Id}\n" +
                         $"起点: ({selectedSegment.StartPoint.X:F1}, {selectedSegment.StartPoint.Y:F1})\n" +
                         $"终点: ({selectedSegment.EndPoint.X:F1}, {selectedSegment.EndPoint.Y:F1})\n" +
                         $"弧度强度: {selectedSegment.CurvatureStrength:F3}\n" +
                         $"长度: {SKPoint.Distance(selectedSegment.StartPoint, selectedSegment.EndPoint):F1}";

            MessageBox.Show(message, "管线段属性", MessageBoxButtons.OK, MessageBoxIcon.Information);
        }

        private void DuplicateSelectedSegment()
        {
            if (selectedSegment == null) return;

            var offset = 50f;
            var newSegment = new PipelineSegment
            {
                StartPoint = new SKPoint(selectedSegment.StartPoint.X + offset, selectedSegment.StartPoint.Y + offset),
                EndPoint = new SKPoint(selectedSegment.EndPoint.X + offset, selectedSegment.EndPoint.Y + offset),
                CurvatureStrength = selectedSegment.CurvatureStrength,
                Id = Guid.NewGuid()
            };

            pipelineSegments.Add(newSegment);
            selectedSegment = newSegment;
            skiaCanvas.Invalidate();
            UpdateStatusLabel($"已复制管线段，新ID: {newSegment.Id.ToString().Substring(0, 8)}...");
        }

        private void SkiaCanvas_MouseMove(object sender, MouseEventArgs e)
        {
            var mousePos = new SKPoint(e.X, e.Y);

            if (isDragging && selectedSegment != null)
            {
                var deltaX = mousePos.X - lastMousePosition.X;
                var deltaY = mousePos.Y - lastMousePosition.Y;

                switch (currentDragMode)
                {
                    case DragMode.Move:
                        selectedSegment.StartPoint = new SKPoint(
                            selectedSegment.StartPoint.X + deltaX,
                            selectedSegment.StartPoint.Y + deltaY
                        );
                        selectedSegment.EndPoint = new SKPoint(
                            selectedSegment.EndPoint.X + deltaX,
                            selectedSegment.EndPoint.Y + deltaY
                        );
                        break;

                    case DragMode.ResizeStart:
                        selectedSegment.StartPoint = mousePos;
                        break;

                    case DragMode.ResizeEnd:
                        selectedSegment.EndPoint = mousePos;
                        break;

                    case DragMode.CurvatureControl:
                        var curvaturePoint = GetCurvatureControlPoint(selectedSegment);
                        var distanceFromOriginal = SKPoint.Distance(mousePos, curvaturePoint);
                        var midPoint = GetMidPoint(selectedSegment.StartPoint, selectedSegment.EndPoint);
                        var maxDistance = SKPoint.Distance(selectedSegment.StartPoint, selectedSegment.EndPoint) * 0.5f;

                        var perpVector = GetPerpendicularVector(selectedSegment.StartPoint, selectedSegment.EndPoint);
                        var toMouse = new SKPoint(mousePos.X - midPoint.X, mousePos.Y - midPoint.Y);
                        var dotProduct = toMouse.X * perpVector.X + toMouse.Y * perpVector.Y;
                        var projectedDistance = Math.Abs(dotProduct);

                        selectedSegment.CurvatureStrength = Math.Sign(dotProduct) * Math.Min(projectedDistance / maxDistance, 1.0f);
                        UpdateStatusLabel($"调整弧度: {selectedSegment.CurvatureStrength:F2}");
                        break;
                }

                skiaCanvas.Invalidate();
            }
            else
            {
                UpdateCursor(mousePos);
            }

            lastMousePosition = mousePos;
        }

        private void SkiaCanvas_MouseUp(object sender, MouseEventArgs e)
        {
            if (isDragging)
            {
                isDragging = false;
                currentDragMode = DragMode.None;
                skiaCanvas.Cursor = Cursors.Default;

                if (selectedSegment != null)
                {
                    UpdateStatusLabel($"管线段已更新 ID: {selectedSegment.Id.ToString().Substring(0, 8)}... 弧度: {selectedSegment.CurvatureStrength:F2} [Del键删除]");
                }
            }
        }

        private void SkiaCanvas_MouseLeave(object sender, EventArgs e)
        {
            skiaCanvas.Cursor = Cursors.Default;
        }

        private void UpdateCursor(SKPoint mousePos)
        {
            if (selectedSegment != null)
            {
                var dragMode = GetDragMode(selectedSegment, mousePos);
                skiaCanvas.Cursor = GetCursorForDragMode(dragMode);
            }
            else
            {
                var hitSegment = HitTestSegment(mousePos);
                skiaCanvas.Cursor = hitSegment != null ? Cursors.Hand : Cursors.Default;
            }
        }

        private Cursor GetCursorForDragMode(DragMode mode)
        {
            switch (mode)
            {
                case DragMode.Move:
                    return Cursors.SizeAll;
                case DragMode.ResizeStart:
                case DragMode.ResizeEnd:
                    return Cursors.Cross;
                case DragMode.CurvatureControl:
                    return Cursors.Hand;
                default:
                    return Cursors.Default;
            }
        }

        #endregion

        #region 工具方法

        private SKPoint GetMidPoint(SKPoint start, SKPoint end)
        {
            return new SKPoint((start.X + end.X) / 2, (start.Y + end.Y) / 2);
        }

        private SKPoint GetPerpendicularVector(SKPoint start, SKPoint end)
        {
            var dx = end.X - start.X;
            var dy = end.Y - start.Y;
            var length = (float)Math.Sqrt(dx * dx + dy * dy);

            if (length == 0) return new SKPoint(0, 1);

            return new SKPoint(-dy / length, dx / length);
        }

        private SKPoint GetCurvatureControlPoint(PipelineSegment segment)
        {
            var midPoint = GetMidPoint(segment.StartPoint, segment.EndPoint);
            var perpVector = GetPerpendicularVector(segment.StartPoint, segment.EndPoint);
            var distance = SKPoint.Distance(segment.StartPoint, segment.EndPoint) * 0.5f * segment.CurvatureStrength;

            return new SKPoint(
                midPoint.X + perpVector.X * distance,
                midPoint.Y + perpVector.Y * distance
            );
        }

        #endregion

        #region 碰撞检测

        private PipelineSegment HitTestSegment(SKPoint point)
        {
            foreach (var segment in pipelineSegments)
            {
                if (IsPointOnSegment(point, segment))
                {
                    return segment;
                }
            }
            return null;
        }

        private bool IsPointOnSegment(SKPoint point, PipelineSegment segment)
        {
            if (Math.Abs(segment.CurvatureStrength) < 0.01f)
            {
                return IsPointOnLine(point, segment.StartPoint, segment.EndPoint);
            }
            else
            {
                return IsPointOnCurve(point, segment);
            }
        }

        private bool IsPointOnLine(SKPoint point, SKPoint start, SKPoint end)
        {
            var A = point.X - start.X;
            var B = point.Y - start.Y;
            var C = end.X - start.X;
            var D = end.Y - start.Y;

            var dot = A * C + B * D;
            var lenSq = C * C + D * D;

            if (lenSq == 0) return SKPoint.Distance(point, start) <= HIT_TOLERANCE;

            var param = dot / lenSq;

            SKPoint closestPoint;
            if (param < 0)
                closestPoint = start;
            else if (param > 1)
                closestPoint = end;
            else
                closestPoint = new SKPoint(start.X + param * C, start.Y + param * D);

            return SKPoint.Distance(point, closestPoint) <= HIT_TOLERANCE;
        }

        private bool IsPointOnCurve(SKPoint point, PipelineSegment segment)
        {
            var controlPoint = GetCurvatureControlPoint(segment);
            const int samples = 20;

            for (int i = 0; i <= samples; i++)
            {
                float t = (float)i / samples;
                var curvePoint = GetQuadraticBezierPoint(segment.StartPoint, controlPoint, segment.EndPoint, t);
                if (SKPoint.Distance(point, curvePoint) <= HIT_TOLERANCE)
                {
                    return true;
                }
            }
            return false;
        }

        private SKPoint GetQuadraticBezierPoint(SKPoint start, SKPoint control, SKPoint end, float t)
        {
            var oneMinusT = 1 - t;
            var x = oneMinusT * oneMinusT * start.X + 2 * oneMinusT * t * control.X + t * t * end.X;
            var y = oneMinusT * oneMinusT * start.Y + 2 * oneMinusT * t * control.Y + t * t * end.Y;
            return new SKPoint(x, y);
        }

        private DragMode GetDragMode(PipelineSegment segment, SKPoint point)
        {
            if (IsPointNearHandle(point, segment.StartPoint))
                return DragMode.ResizeStart;
            if (IsPointNearHandle(point, segment.EndPoint))
                return DragMode.ResizeEnd;

            var curvaturePoint = GetCurvatureControlPoint(segment);
            if (IsPointNearControlHandle(point, curvaturePoint))
                return DragMode.CurvatureControl;

            if (IsPointOnSegment(point, segment))
                return DragMode.Move;
            return DragMode.None;
        }

        private bool IsPointNearHandle(SKPoint point, SKPoint handle)
        {
            return SKPoint.Distance(point, handle) <= HANDLE_SIZE;
        }

        private bool IsPointNearControlHandle(SKPoint point, SKPoint handle)
        {
            return SKPoint.Distance(point, handle) <= CONTROL_HANDLE_SIZE;
        }

        #endregion

        private void skiaCanvas_PaintSurface(object sender, SKPaintSurfaceEventArgs e)
        {
            var canvas = e.Surface.Canvas;
            canvas.Clear(SKColors.White);

            DrawGrid(canvas, e.Info.Width, e.Info.Height);
            DrawPipeline(canvas);
            DrawFlowAnimation(canvas);
            DrawSelection(canvas);
        }

        private void DrawGrid(SKCanvas canvas, int width, int height)
        {
            using (var paint = new SKPaint())
            {
                paint.Color = SKColors.LightGray;
                paint.StrokeWidth = 1;
                paint.Style = SKPaintStyle.Stroke;

                for (int x = 0; x < width; x += 20)
                {
                    canvas.DrawLine(x, 0, x, height, paint);
                }
                for (int y = 0; y < height; y += 20)
                {
                    canvas.DrawLine(0, y, width, y, paint);
                }
            }
        }

        private void DrawPipeline(SKCanvas canvas)
        {
            using (var paint = new SKPaint())
            {
                paint.StrokeCap = SKStrokeCap.Round;
                paint.StrokeJoin = SKStrokeJoin.Round;
                paint.Style = SKPaintStyle.Stroke;
                paint.IsAntialias = true;

                foreach (var segment in pipelineSegments)
                {
                    if (segment == selectedSegment)
                    {
                        paint.Color = SKColors.Orange;
                        paint.StrokeWidth = selectedStyle.PipeWidth + 4;
                    }
                    else
                    {
                        paint.Color = selectedStyle.PipeColor;
                        paint.StrokeWidth = selectedStyle.PipeWidth;
                    }

                    DrawPipelineSegment(canvas, segment, paint);
                }

                foreach (var segment in pipelineSegments)
                {
                    if (selectedStyle.PipelineType == PipelineType.Steam)
                    {
                        paint.Color = SKColors.DarkGray;
                    }
                    else
                    {
                        paint.Color = SKColors.White;
                    }

                    if (segment == selectedSegment)
                    {
                        paint.StrokeWidth = selectedStyle.PipeWidth - 4;
                    }
                    else
                    {
                        paint.StrokeWidth = selectedStyle.PipeWidth - 8;
                    }
                    DrawPipelineSegment(canvas, segment, paint);
                }
            }
        }

        private void DrawSelection(SKCanvas canvas)
        {
            if (selectedSegment == null) return;

            using (var paint = new SKPaint())
            {
                paint.IsAntialias = true;

                paint.Color = SKColors.Red;
                paint.Style = SKPaintStyle.Fill;
                canvas.DrawCircle(selectedSegment.StartPoint.X, selectedSegment.StartPoint.Y, HANDLE_SIZE, paint);
                canvas.DrawCircle(selectedSegment.EndPoint.X, selectedSegment.EndPoint.Y, HANDLE_SIZE, paint);

                var curvaturePoint = GetCurvatureControlPoint(selectedSegment);
                paint.Color = SKColors.Green;
                canvas.DrawCircle(curvaturePoint.X, curvaturePoint.Y, CONTROL_HANDLE_SIZE, paint);

                paint.Style = SKPaintStyle.Stroke;
                paint.StrokeWidth = 1;
                paint.Color = SKColors.Gray;
                paint.PathEffect = SKPathEffect.CreateDash(new float[] { 3, 3 }, 0);

                var midPoint = GetMidPoint(selectedSegment.StartPoint, selectedSegment.EndPoint);
                canvas.DrawLine(midPoint, curvaturePoint, paint);

                paint.Style = SKPaintStyle.Stroke;
                paint.StrokeWidth = 2;
                paint.Color = SKColors.Blue;
                paint.PathEffect = SKPathEffect.CreateDash(new float[] { 5, 5 }, 0);

                var bounds = GetSegmentBounds(selectedSegment);
                canvas.DrawRect(bounds, paint);

                paint.Style = SKPaintStyle.Fill;
                paint.Color = SKColors.Red;
                paint.TextSize = 12;
                paint.Typeface = SKTypeface.FromFamilyName("Arial");
                var deleteHint = "[Del]";
                var textBounds = new SKRect();
                paint.MeasureText(deleteHint, ref textBounds);
                canvas.DrawText(deleteHint,
                    bounds.Right - textBounds.Width - 5,
                    bounds.Top + textBounds.Height + 5,
                    paint);
            }
        }

        private SKRect GetSegmentBounds(PipelineSegment segment)
        {
            var margin = selectedStyle.PipeWidth / 2 + 10;
            float minX = Math.Min(segment.StartPoint.X, segment.EndPoint.X);
            float maxX = Math.Max(segment.StartPoint.X, segment.EndPoint.X);
            float minY = Math.Min(segment.StartPoint.Y, segment.EndPoint.Y);
            float maxY = Math.Max(segment.StartPoint.Y, segment.EndPoint.Y);

            var curvaturePoint = GetCurvatureControlPoint(segment);
            minX = Math.Min(minX, curvaturePoint.X);
            maxX = Math.Max(maxX, curvaturePoint.X);
            minY = Math.Min(minY, curvaturePoint.Y);
            maxY = Math.Max(maxY, curvaturePoint.Y);

            return new SKRect(minX - margin, minY - margin, maxX + margin, maxY + margin);
        }

        private void DrawPipelineSegment(SKCanvas canvas, PipelineSegment segment, SKPaint paint)
        {
            if (Math.Abs(segment.CurvatureStrength) < 0.01f)
            {
                canvas.DrawLine(segment.StartPoint, segment.EndPoint, paint);
            }
            else
            {
                var controlPoint = GetCurvatureControlPoint(segment);
                using (var path = new SKPath())
                {
                    path.MoveTo(segment.StartPoint);
                    path.QuadTo(controlPoint, segment.EndPoint);
                    canvas.DrawPath(path, paint);
                }
            }
        }

        private void DrawFlowAnimation(SKCanvas canvas)
        {
            if (!isAnimationEnabled) return;

            using (var paint = new SKPaint())
            {
                paint.StrokeWidth = selectedStyle.PipeWidth - 12;
                paint.Style = SKPaintStyle.Stroke;
                paint.StrokeCap = SKStrokeCap.Round;
                paint.IsAntialias = true;

                float[] intervals;
                SKColor animationColor;

                switch (selectedStyle.PipelineType)
                {
                    case PipelineType.Oil:
                        intervals = new float[] { 20, 10 };
                        animationColor = SKColors.Orange;
                        break;
                    case PipelineType.Water:
                        intervals = new float[] { 15, 5 };
                        animationColor = SKColors.LightBlue;
                        break;
                    case PipelineType.Gas:
                        intervals = new float[] { 10, 15 };
                        animationColor = SKColors.LimeGreen;
                        break;
                    case PipelineType.Steam:
                        intervals = new float[] { 5, 5 };
                        animationColor = SKColors.WhiteSmoke;
                        break;
                    default:
                        intervals = new float[] { 20, 10 };
                        animationColor = selectedStyle.FlowColor;
                        break;
                }

                paint.Color = animationColor;
                paint.PathEffect = SKPathEffect.CreateDash(intervals, animationOffset);

                foreach (var segment in pipelineSegments)
                {
                    DrawPipelineSegment(canvas, segment, paint);
                }
            }
        }

        private void UpdateStatusLabel(string text)
        {
            if (lblStatus != null)
            {
                lblStatus.Text = text;
            }
        }

        private void btnAddSegment_Click(object sender, EventArgs e)
        {
            var lastSegment = pipelineSegments.LastOrDefault();
            if (lastSegment != null)
            {
                var newSegment = new PipelineSegment
                {
                    StartPoint = lastSegment.EndPoint,
                    EndPoint = new SKPoint(lastSegment.EndPoint.X + 100, lastSegment.EndPoint.Y),
                    CurvatureStrength = 0f,
                    Id = Guid.NewGuid()
                };

                pipelineSegments.Add(newSegment);
                selectedSegment = newSegment;
                skiaCanvas.Invalidate();
                UpdateStatusLabel($"添加了新管线段，ID: {newSegment.Id.ToString().Substring(0, 8)}... [Del键删除]");
            }
            else
            {
                var newSegment = new PipelineSegment
                {
                    StartPoint = new SKPoint(100, 200),
                    EndPoint = new SKPoint(200, 200),
                    CurvatureStrength = 0f,
                    Id = Guid.NewGuid()
                };
                pipelineSegments.Add(newSegment);
                selectedSegment = newSegment;
                skiaCanvas.Invalidate();
                UpdateStatusLabel($"添加了新管线段，ID: {newSegment.Id.ToString().Substring(0, 8)}... [Del键删除]");
            }
        }

        private void btnDeleteSegment_Click(object sender, EventArgs e)
        {
            if (selectedSegment != null)
            {
                var result = MessageBox.Show(
                    $"确定要删除选中的管线段吗？\nID: {selectedSegment.Id.ToString().Substring(0, 8)}...",
                    "确认删除",
                    MessageBoxButtons.YesNo,
                    MessageBoxIcon.Question);

                if (result == DialogResult.Yes)
                {
                    DeleteSelectedSegment();
                }
            }
            else
            {
                MessageBox.Show("请先选择要删除的管线段。", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
            }
        }

        private void btnReset_Click(object sender, EventArgs e)
        {
            var result = MessageBox.Show("确定要重置所有管线吗？这将清除所有当前的管线段。",
                "确认重置", MessageBoxButtons.YesNo, MessageBoxIcon.Question);

            if (result == DialogResult.Yes)
            {
                selectedSegment = null;
                CreateSamplePipeline();
                UpdateStatusLabel("已重置管线");
            }
        }

        private void cmbPipelineType_SelectedIndexChanged(object sender, EventArgs e)
        {
            var combo = sender as ComboBox;
            selectedStyle.PipelineType = (PipelineType)combo.SelectedIndex;
            UpdatePipelineStyle();
        }

        private void cmbPipeSize_SelectedIndexChanged(object sender, EventArgs e)
        {
            var combo = sender as ComboBox;
            selectedStyle.PipeWidth = 20 + combo.SelectedIndex * 10;
            skiaCanvas.Invalidate();
        }

        private void btnColorPicker_Click(object sender, EventArgs e)
        {
            using (var colorDialog = new ColorDialog())
            {
                if (colorDialog.ShowDialog() == DialogResult.OK)
                {
                    selectedStyle.PipeColor = new SKColor(
                        colorDialog.Color.R,
                        colorDialog.Color.G,
                        colorDialog.Color.B
                    );
                    btnColorPicker.BackColor = colorDialog.Color;
                    skiaCanvas.Invalidate();
                }
            }
        }

        private void chkAnimation_CheckedChanged(object sender, EventArgs e)
        {
            isAnimationEnabled = chkAnimation.Checked;
        }

        private void trkSpeed_Scroll(object sender, EventArgs e)
        {
            selectedStyle.FlowSpeed = trkSpeed.Value * 0.5f;
            lblSpeed.Text = $"流速: {selectedStyle.FlowSpeed:F1}";
        }

        private void UpdatePipelineStyle()
        {
            switch (selectedStyle.PipelineType)
            {
                case PipelineType.Oil:
                    selectedStyle.PipeColor = SKColors.Brown;
                    selectedStyle.FlowColor = SKColors.Orange;
                    break;
                case PipelineType.Water:
                    selectedStyle.PipeColor = SKColors.Blue;
                    selectedStyle.FlowColor = SKColors.LightBlue;
                    break;
                case PipelineType.Gas:
                    selectedStyle.PipeColor = SKColors.Yellow;
                    selectedStyle.FlowColor = SKColors.Green;
                    break;
                case PipelineType.Steam:
                    selectedStyle.PipeColor = SKColors.Gray;
                    selectedStyle.FlowColor = SKColors.LightGray;
                    break;
            }
            skiaCanvas.Invalidate();
        }
    }

    public class PipelineSegment
    {
        public SKPoint StartPoint { get; set; }
        public SKPoint EndPoint { get; set; }
        public float CurvatureStrength { get; set; }
        public Guid Id { get; set; }
    }

    public class PipelineStyle
    {
        public float PipeWidth { get; set; }
        public SKColor PipeColor { get; set; }
        public SKColor FlowColor { get; set; }
        public float FlowSpeed { get; set; }
        public PipelineType PipelineType { get; set; }
    }

    public enum PipelineType
    {
        Oil,
        Water,
        Gas,
        Steam
    }

    public enum DragMode
    {
        None,
        Move,
        ResizeStart,
        ResizeEnd,
        CurvatureControl
    }
}

🛠️ 实战应用场景

工业设计软件

化工管道布局设计
建筑给排水系统
石油管线规划

教学演示系统

工程制图教学
流体力学可视化
工艺流程展示

监控系统界面

实时管道状态显示
流量方向指示
故障点标注

⚠️ 开发中的关键坑点

内存管理

c#
// ❌ 错误做法 - 可能造成内存泄漏
var path = new SKPath();
// 忘记释放资源

// ✅ 正确做法 - 使用using确保释放
using (var path = new SKPath())
{
    // 绘制逻辑
}

坐标转换

c#
// 注意WinForms坐标与SKCanvas坐标的一致性
var mousePos = new SKPoint(e.X, e.Y); // 直接使用，无需转换

性能优化

避免在绘制方法中创建大量临时对象
使用canvas.Invalidate()而非频繁重绘整个界面
复杂路径使用缓存策略

🎯 功能扩展建议

想让系统更加完善？考虑添加这些功能：

撤销/重做系统：实现命令模式
图层管理：支持多层级管线设计
导出功能：SVG、PNG等格式输出
数据持久化：JSON/XML格式保存加载

💬 技术交流

你在实际项目中是如何处理复杂图形绘制的？遇到过哪些性能瓶颈？欢迎在评论区分享你的经验和踩过的坑！

如果你正在开发类似的工业软件或图形编辑器，这套方案能为你节省大量开发时间。关于SkiaSharp的更多高级用法，你还想了解哪些方面？

🚀 总结与展望

通过这个工业管线绘制系统，我们掌握了三个核心要点：

SkiaSharp绘图引擎：高性能、跨平台的专业绘图解决方案
交互系统设计：精确碰撞检测+多模式拖拽，打造专业级用户体验
动画与视觉效果：通过巧妙的算法实现生动的流体动画

这套技术方案不仅适用于工业软件，在游戏开发、数据可视化、教育软件等领域同样大有用武之地。SkiaSharp正在成为C#图形开发的新标杆，值得每位.NET开发者深入掌握。

觉得这篇文章对你有帮助？请转发给更多同行，让我们一起推动C#图形编程技术的发展！ 🌟

目录
