在工业自动化和精密设备控制领域，运动控制系统是核心技术之一。无论是3D打印机、数控机床，还是自动化生产线，都离不开精确的运动控制。作为C#开发者，你是否想过如何用熟悉的技术栈来构建一个专业级的运动控制系统？

今天就带大家从零开始，用C#和WinForms打造一个功能完整的单轴运动控制器。不仅有完整的运动算法实现，还包含直观的可视化界面和实时动画效果。这不仅是一次技术实战，更是将复杂工业控制概念转化为可理解代码的绝佳案例。

🎯 核心痛点分析

工业控制软件的三大挑战

1. 实时性要求高

运动控制需要毫秒级响应，任何延迟都可能影响精度甚至造成设备损坏。

2. 复杂的运动规划

需要实现平滑的加速度曲线，避免机械冲击，同时保证运动精度。

3. 界面与控制逻辑分离

工业软件往往逻辑复杂，界面更新频繁，如何保持代码清晰和系统稳定是关键。

🚩 流程图

🔧 架构设计：分层解耦的智慧

核心类结构设计

我们采用事件驱动 + 异步编程的架构模式：

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppSingleAxisMotionControl
{
    public class MotionAxis
    {
        #region 事件定义
        public event EventHandler<PositionChangedEventArgs> PositionChanged;
        public event EventHandler<StatusChangedEventArgs> StatusChanged;
        public event EventHandler<AlarmEventArgs> AlarmOccurred;
        #endregion

        #region 私有字段
        private double _currentPosition = 0;
        private double _currentVelocity = 0;
        private bool _isConnected = false;
        private bool _isHomed = false;
        private bool _isMoving = false;
        private bool _hasAlarm = false;
        private double? _targetPosition = null;
        private double _startPosition = 0;
        private CancellationTokenSource _moveCancellation;
        private System.Threading.Timer _simulationTimer;
        private Random _random = new Random();
        #endregion

        #region 属性
        public double CurrentPosition
        {
            get => _currentPosition;
            private set
            {
                if (Math.Abs(_currentPosition - value) > 0.001)
                {
                    _currentPosition = value;
                    PositionChanged?.Invoke(this, new PositionChangedEventArgs(value));
                }
            }
        }

        public double CurrentVelocity
        {
            get => _currentVelocity;
            private set => _currentVelocity = value;
        }

        public bool IsConnected => _isConnected;
        public bool IsHomed => _isHomed;
        public bool IsMoving => _isMoving;
        public bool HasAlarm => _hasAlarm;
        public double? TargetPosition => _targetPosition;
        public double StartPosition => _startPosition;
        #endregion

        #region 公共方法
        public void Connect(string port)
        {
            if (_isConnected)
                throw new InvalidOperationException("设备已连接");

            // 模拟连接过程
            Thread.Sleep(500);

            _isConnected = true;
            _simulationTimer = new System.Threading.Timer(SimulationUpdate, null, 0, 50);

            StatusChanged?.Invoke(this, new StatusChangedEventArgs("设备已连接"));
        }

        public void Disconnect()
        {
            if (!_isConnected)
                return;

            _simulationTimer?.Dispose();
            _simulationTimer = null;
            _moveCancellation?.Cancel();

            _isConnected = false;
            _isMoving = false;
            _currentVelocity = 0;

            StatusChanged?.Invoke(this, new StatusChangedEventArgs("设备已断开"));
        }

        public void Home()
        {
            if (!_isConnected)
                throw new InvalidOperationException("设备未连接");

            if (_isMoving)
                throw new InvalidOperationException("设备正在运动中");

            _isMoving = true;
            _startPosition = _currentPosition;
            _targetPosition = 0;

            StatusChanged?.Invoke(this, new StatusChangedEventArgs("开始回零"));

            // 模拟回零过程
            Task.Run(() =>
            {
                try
                {
                    SimulateMotion(0, 20, 100, CancellationToken.None);
                    _isHomed = true;
                    StatusChanged?.Invoke(this, new StatusChangedEventArgs("回零完成"));
                }
                catch (Exception ex)
                {
                    AlarmOccurred?.Invoke(this, new AlarmEventArgs($"回零失败: {ex.Message}"));
                }
                finally
                {
                    _isMoving = false;
                    _currentVelocity = 0;
                    _targetPosition = null;
                }
            });
        }

        public void MoveAbsolute(double position, double velocity, double acceleration, CancellationToken cancellationToken)
        {
            if (!_isConnected)
                throw new InvalidOperationException("设备未连接");

            if (_isMoving)
                throw new InvalidOperationException("设备正在运动中");

            // 参数验证和日志
            if (velocity <= 0) velocity = 10; // 默认值
            if (acceleration <= 0) acceleration = 100; // 默认值

            // 添加调试信息
            Console.WriteLine($"MoveAbsolute: 位置={position:F3}, 速度={velocity:F2}, 加速度={acceleration:F1}");

            _isMoving = true;
            _startPosition = _currentPosition;
            _targetPosition = position;

            StatusChanged?.Invoke(this, new StatusChangedEventArgs($"开始绝对运动至 {position:F3}mm，速度{velocity:F1}mm/s"));

            try
            {
                SimulateMotion(position, velocity, acceleration, cancellationToken);
                StatusChanged?.Invoke(this, new StatusChangedEventArgs("绝对运动完成"));
            }
            finally
            {
                _isMoving = false;
                _currentVelocity = 0;
                _targetPosition = null;
            }
        }
        public void MoveRelative(double distance, double velocity, double acceleration, CancellationToken cancellationToken)
        {
            if (!_isConnected)
                throw new InvalidOperationException("设备未连接");

            if (_isMoving)
                throw new InvalidOperationException("设备正在运动中");

            double targetPos = _currentPosition + distance;
            MoveAbsolute(targetPos, velocity, acceleration, cancellationToken);
        }

        public void StartJog(double velocity)
        {
            if (!_isConnected)
                throw new InvalidOperationException("设备未连接");

            _currentVelocity = velocity;
            StatusChanged?.Invoke(this, new StatusChangedEventArgs($"开始点动，速度: {velocity:F2}mm/s"));
        }

        public void StopJog()
        {
            _currentVelocity = 0;
            StatusChanged?.Invoke(this, new StatusChangedEventArgs("停止点动"));
        }

        public void Stop()
        {
            _moveCancellation?.Cancel();
            _currentVelocity = 0;
            _isMoving = false;
            _targetPosition = null;
            StatusChanged?.Invoke(this, new StatusChangedEventArgs("急停执行"));
        }

        public void Reset()
        {
            _hasAlarm = false;
            StatusChanged?.Invoke(this, new StatusChangedEventArgs("报警复位"));
        }
        #endregion

        #region 私有方法
        private void SimulateMotion(double targetPosition, double velocity, double acceleration, CancellationToken cancellationToken)
        {
            double startPos = _currentPosition;
            double totalDistance = Math.Abs(targetPosition - startPos);
            double direction = Math.Sign(targetPosition - startPos);

            if (totalDistance < 0.001)
                return;

            // 添加调试日志
            Console.WriteLine($"SimulateMotion: 起始={startPos:F3}, 目标={targetPosition:F3}, 速度={velocity:F2}, 加速度={acceleration:F1}");

            DateTime startTime = DateTime.Now;

            // 运动规划计算
            double timeToMaxVelocity = velocity / acceleration;
            double distanceToMaxVelocity = 0.5 * acceleration * timeToMaxVelocity * timeToMaxVelocity;

            bool hasConstantVelocityPhase = totalDistance > 2 * distanceToMaxVelocity;

            double actualMaxVelocity;
            double totalTime;
            double accelTime, constTime, decelTime;
            double accelDist, constDist, decelDist;

            if (hasConstantVelocityPhase)
            {
                // 梯形速度曲线
                actualMaxVelocity = velocity;
                accelTime = decelTime = actualMaxVelocity / acceleration;
                accelDist = decelDist = 0.5 * acceleration * accelTime * accelTime;
                constDist = totalDistance - accelDist - decelDist;
                constTime = constDist / actualMaxVelocity;
                totalTime = accelTime + constTime + decelTime;

                Console.WriteLine($"梯形曲线: 最大速度={actualMaxVelocity:F2}, 总时间={totalTime:F2}s");
                Console.WriteLine($"加速时间={accelTime:F2}s, 匀速时间={constTime:F2}s, 减速时间={decelTime:F2}s");
            }
            else
            {
                // 三角形速度曲线
                actualMaxVelocity = Math.Sqrt(totalDistance * acceleration);
                accelTime = decelTime = actualMaxVelocity / acceleration;
                constTime = 0;
                accelDist = decelDist = totalDistance / 2;
                constDist = 0;
                totalTime = accelTime + decelTime;

                Console.WriteLine($"三角形曲线: 最大速度={actualMaxVelocity:F2}, 总时间={totalTime:F2}s");
            }

            // 执行运动仿真
            while (Math.Abs(_currentPosition - targetPosition) > 0.001 && !cancellationToken.IsCancellationRequested)
            {
                double elapsedTime = (DateTime.Now - startTime).TotalSeconds;

                double newPosition;
                double newVelocity;
                string phase = "";

                if (elapsedTime >= totalTime)
                {
                    newPosition = targetPosition;
                    newVelocity = 0;
                    phase = "完成";
                }
                else if (elapsedTime <= accelTime)
                {
                    // 加速阶段
                    newVelocity = acceleration * elapsedTime;
                    newPosition = startPos + direction * (0.5 * acceleration * elapsedTime * elapsedTime);
                    phase = "加速";
                }
                else if (elapsedTime <= accelTime + constTime)
                {
                    // 匀速阶段
                    double constElapsed = elapsedTime - accelTime;
                    newVelocity = actualMaxVelocity;
                    newPosition = startPos + direction * (accelDist + actualMaxVelocity * constElapsed);
                    phase = "匀速";
                }
                else
                {
                    // 减速阶段
                    double decelElapsed = elapsedTime - accelTime - constTime;
                    newVelocity = actualMaxVelocity - acceleration * decelElapsed;
                    newPosition = startPos + direction * (accelDist + constDist +
                        actualMaxVelocity * decelElapsed - 0.5 * acceleration * decelElapsed * decelElapsed);
                    phase = "减速";
                }

                // 限制位置范围
                if (direction > 0)
                    newPosition = Math.Min(newPosition, targetPosition);
                else
                    newPosition = Math.Max(newPosition, targetPosition);

                CurrentPosition = newPosition;
                CurrentVelocity = direction * Math.Abs(newVelocity);

                // 输出调试信息
                if ((int)(elapsedTime * 10) % 1 == 0)
                {
                    Console.WriteLine($"时间={elapsedTime:F2}s, 阶段={phase}, 位置={newPosition:F3}, 速度={CurrentVelocity:F2}");
                }

                Thread.Sleep(20);
            }

            CurrentPosition = targetPosition;
            CurrentVelocity = 0;
            Console.WriteLine("运动仿真结束");
        }
        private void SimulationUpdate(object state)
        {
            if (!_isConnected)
                return;

            // 模拟点动运动
            if (!_isMoving && Math.Abs(_currentVelocity) > 0.001)
            {
                CurrentPosition += _currentVelocity * 0.05;

                // 添加微小的位置抖动以模拟真实系统
                CurrentPosition += (_random.NextDouble() - 0.5) * 0.001;
            }

            // 模拟随机报警
            if (_random.NextDouble() < 0.0001)
            {
                _hasAlarm = true;
                AlarmOccurred?.Invoke(this, new AlarmEventArgs("模拟系统报警"));
            }
        }
        #endregion
    }

    #region 事件参数类
    public class PositionChangedEventArgs : EventArgs
    {
        public double Position { get; }

        public PositionChangedEventArgs(double position)
        {
            Position = position;
        }
    }

    public class StatusChangedEventArgs : EventArgs
    {
        public string Status { get; }

        public StatusChangedEventArgs(string status)
        {
            Status = status;
        }
    }

    public class AlarmEventArgs : EventArgs
    {
        public string AlarmMessage { get; }

        public AlarmEventArgs(string alarmMessage)
        {
            AlarmMessage = alarmMessage;
        }
    }
    #endregion
}

🎯 设计亮点：

事件驱动：界面与业务逻辑完全解耦
属性保护：关键状态只能内部修改，外部只读
异步支持：所有运动操作支持取消和超时控制

🚀 核心算法：运动规划的艺术

梯形速度曲线实现

运动控制的核心是速度规划。我们实现了工业级的梯形速度曲线：

C#
private void SimulateMotion(double targetPosition, double velocity,
    double acceleration, CancellationToken cancellationToken)
{
    double startPos = _currentPosition;
    double totalDistance = Math.Abs(targetPosition - startPos);
    double direction = Math.Sign(targetPosition - startPos);

    // 🎯 关键算法：判断是梯形还是三角形曲线
    double timeToMaxVelocity = velocity / acceleration;
    double distanceToMaxVelocity = 0.5 * acceleration * timeToMaxVelocity * timeToMaxVelocity;

    bool hasConstantVelocityPhase = totalDistance > 2 * distanceToMaxVelocity;

    if (hasConstantVelocityPhase)
    {
        // 梯形速度曲线：加速 → 匀速 → 减速
        double accelTime = velocity / acceleration;
        double accelDist = 0.5 * acceleration * accelTime * accelTime;
        double constDist = totalDistance - 2 * accelDist;
        double constTime = constDist / velocity;

        ExecuteTrapezoidalMotion(accelTime, constTime, accelDist, constDist);
    }
    else
    {
        // 三角形速度曲线：加速 → 减速（无匀速段）
        double actualMaxVel = Math.Sqrt(totalDistance * acceleration);
        double accelTime = actualMaxVel / acceleration;

        ExecuteTriangularMotion(accelTime, actualMaxVel);
    }
}

💡 算法精髓：

自适应曲线：根据距离自动选择梯形或三角形
平滑运动：避免机械冲击，保护设备
精确控制：毫秒级位置更新，确保精度

实时位置更新机制

C#
// 🔥 核心更新循环
private void UpdatePositionLoop(MotionProfile profile, CancellationToken token)
{
    DateTime startTime = DateTime.Now;

    while (!token.IsCancellationRequested && !IsAtTarget())
    {
        double elapsedTime = (DateTime.Now - startTime).TotalSeconds;

        // 根据当前时间计算位置和速度
        var (newPos, newVel) = CalculateCurrentState(elapsedTime, profile);

        // 🎯 关键：原子性更新，触发事件
        CurrentPosition = newPos;
        CurrentVelocity = newVel;

        Thread.Sleep(20); // 50Hz更新频率
    }
}

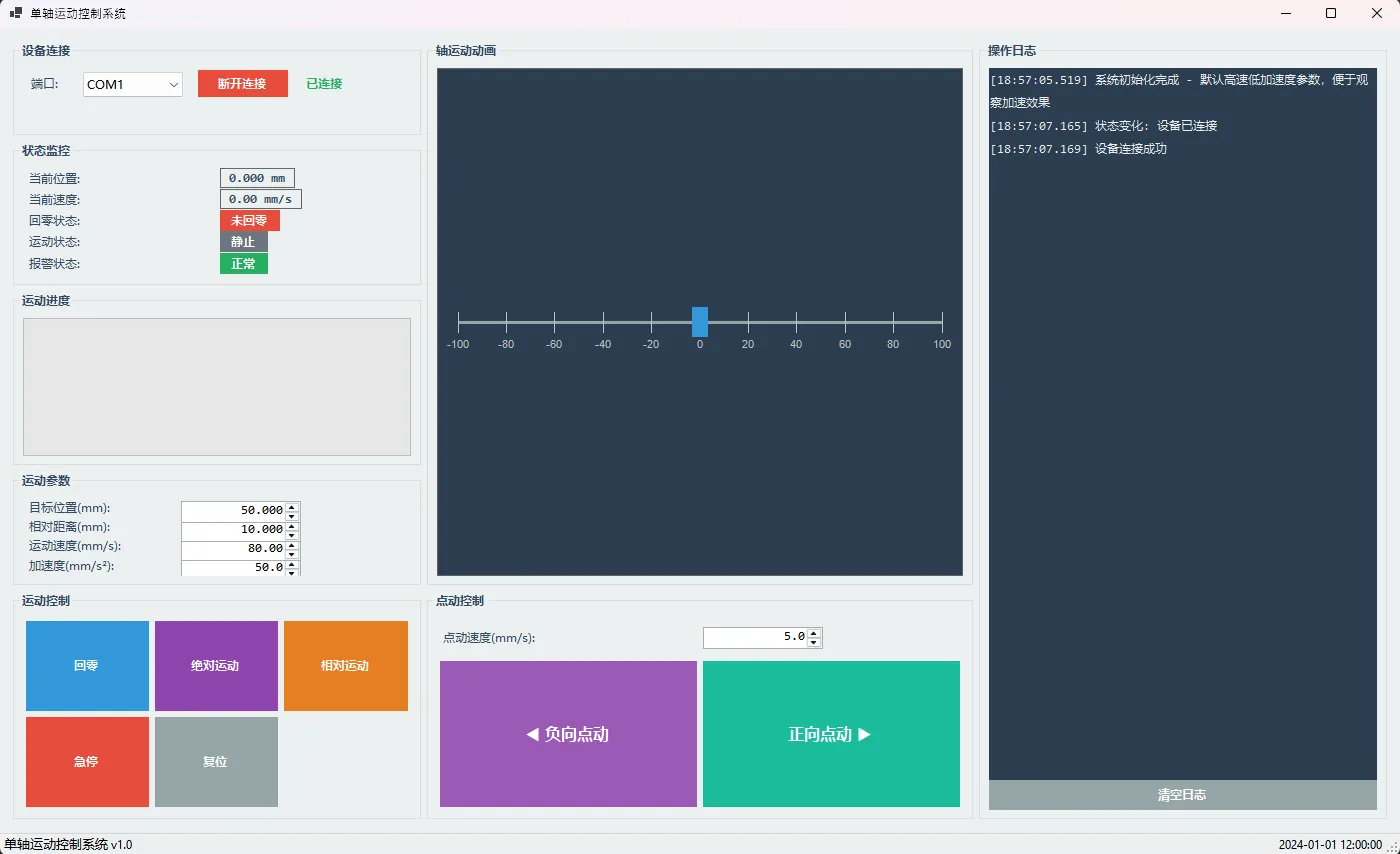

🎨 界面设计：工业级用户体验

智能状态管理

C#
private void UpdateUI()
{
    bool canOperate = _isConnected && !_isHoming && !_isMoving;

    // 🔧 智能按钮控制
    btnHome.Enabled = _isConnected && !_isHoming && !_isMoving;
    btnMoveAbs.Enabled = canOperate;
    btnMoveRel.Enabled = canOperate;

    // 📊 状态指示灯
    lblHomeStatus.BackColor = _axis.IsHomed ?
        Color.FromArgb(39, 174, 96) : Color.FromArgb(231, 76, 60);

    lblMotionStatus.BackColor = _axis.IsMoving ?
        Color.FromArgb(255, 193, 7) : Color.FromArgb(108, 117, 125);
}

实时动画效果

C#
private void DrawAxisAnimation(Graphics g)
{
    // 🎨 绘制运动轴动画
    Rectangle rect = pnlAnimation.ClientRectangle;
    g.Clear(Color.FromArgb(44, 62, 80));

    // 绘制轴线和刻度
    DrawAxisLine(g, rect);
    DrawScale(g, rect);

    // 🎯 核心：绘制当前位置
    double normalizedPos = (_axis.CurrentPosition + 100) / 200;
    int currentX = (int)(20 + normalizedPos * (rect.Width - 40));

    using (var brush = new SolidBrush(_axis.IsMoving ?
        Color.FromArgb(255, 193, 7) : Color.FromArgb(52, 152, 219)))
    {
        var posRect = new Rectangle(currentX - 8, centerY - 15, 16, 30);
        g.FillRectangle(brush, posRect);
    }

    // 显示目标位置
    if (_axis.IsMoving && _axis.TargetPosition.HasValue)
    {
        DrawTargetPosition(g, rect);
    }
}

⚡ 性能优化：毫秒必争

双缓冲技术

C#
// 🚀 关键优化：启用控件双缓冲
typeof(Panel).InvokeMember("DoubleBuffered",
    BindingFlags.SetProperty | BindingFlags.Instance | BindingFlags.NonPublic,
    null, pnlAnimation, new object[] { true });

线程安全的UI更新

C#
private void Axis_PositionChanged(object sender, PositionChangedEventArgs e)
{
    // 🔒 线程安全检查
    if (InvokeRequired)
    {
        Invoke(new Action(() => Axis_PositionChanged(sender, e)));
        return;
    }

    // UI更新逻辑
    lblCurrentPos.Text = $"{e.Position:F3} mm";
}

🛠️ 实战技巧：踩坑指南

1. 异步操作的正确姿势

C#
private async void btnMoveAbs_Click(object sender, EventArgs e)
{
    try
    {
        _moveCancellation = new CancellationTokenSource();
        _isMoving = true;
        UpdateUI();

        // 🎯 正确的异步调用方式
        await Task.Run(() => _axis.MoveAbsolute(
            position, velocity, acceleration, _moveCancellation.Token));

    }
    catch (OperationCanceledException)
    {
        AddLog("运动被用户取消");
    }
    finally
    {
        _isMoving = false;
        UpdateUI(); // 确保UI状态正确恢复
    }
}

2. 资源管理最佳实践

C#
private void FrmMainMotionControl_FormClosing(object sender, FormClosingEventArgs e)
{
    // 🔧 优雅关闭
    if (_isConnected)
    {
        _axis.Stop();        // 先停止运动
        _axis.Disconnect();  // 再断开连接
    }

    // 释放资源
    _updateTimer?.Dispose();
    _animationTimer?.Dispose();
    _moveCancellation?.Dispose();
}

3. 参数验证与错误处理

C#
public void MoveAbsolute(double position, double velocity, double acceleration)
{
    // 🚨 参数验证是关键
    if (!_isConnected)
        throw new InvalidOperationException("设备未连接");

    if (_isMoving)
        throw new InvalidOperationException("设备正在运动中");

    // 设置合理默认值
    if (velocity <= 0) velocity = 10;
    if (acceleration <= 0) acceleration = 100;

    // 执行运动...
}

🎯 三大核心收获

事件驱动架构：通过合理的事件设计，实现了界面与业务逻辑的完美分离，代码更清晰，维护更容易。
工业级算法：梯形速度曲线不只是理论，在实际应用中能显著提升设备寿命和运动精度。
异步编程实践：正确使用async/await和CancellationToken，是现代C#开发的必备技能。

这套运动控制系统不仅展示了C#在工业控制领域的强大能力，更重要的是提供了一套可复用的设计模式。无论是扩展为多轴系统，还是集成到更大的自动化项目中，这些核心思想都能发挥价值。

💬 互动时间：

你在项目中遇到过哪些实时控制的挑战？
对于运动控制算法，你还有哪些优化想法？

觉得这篇文章对你有帮助吗？请转发给更多需要的同行，让我们一起推动C#技术在工业控制领域的应用！

目录
