作为C#开发者，你是否曾经为了做一个炫酷的数据可视化界面而苦恼？特别是工业监控系统，既要美观又要实用，传统的WinForms已经无法满足现代化的UI需求。今天，我将带你用WPF + LiveCharts打造一个专业级工业监控界面，不仅颜值在线，功能也相当强大。

本文将解决三个核心问题：如何设计现代化的工业风UI、LiveCharts图表的正确使用姿势、响应式布局的最佳实践。看完这篇文章，你将掌握一套完整的企业级监控界面开发方案！

🎯 为什么选择WPF + LiveCharts？

痛点分析

很多开发者在做数据可视化时都遇到过这些问题：

• Chart控件功能太基础：微软自带的Chart控件样式老旧，定制性差
• 第三方组件价格昂贵：动辄几千上万的商业组件让人望而却步
• 响应式布局困难：图表在不同分辨率下显示效果差强人意
• 实时数据更新卡顿：数据量大时界面更新不流畅

解决方案优势

LiveCharts + WPF 这个组合完美解决了上述痛点：

✅ 免费开源：LiveCharts完全免费，社区活跃

✅ 样式现代：支持各种炫酷的动画效果

✅ 性能优秀：底层基于WPF绘制，性能卓越

✅ 高度定制：几乎所有样式都可以自定义

💡 项目架构设计

技术栈选择

C#
// 核心依赖包
<PackageReference Include="LiveCharts.Wpf" Version="0.9.7" />
<PackageReference Include="LiveCharts" Version="0.9.7" />

🔧 核心功能实现

响应式布局设计

关键技巧：使用Grid的星号布局实现真正的响应式

XML
<!-- 核心布局代码 -->
<Grid Grid.Column="1" Margin="5">
    <Grid.RowDefinitions>
        <RowDefinition Height="*"/>  <!-- 自适应高度 -->
        <RowDefinition Height="*"/>
    </Grid.RowDefinitions>
    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="*"/> <!-- 自适应宽度 -->
        <ColumnDefinition Width="*"/>
    </Grid.ColumnDefinitions>

    <!-- 图表区域 -->
    <Border Grid.Row="0" Grid.Column="0" Style="{StaticResource CardStyle}">
        <Grid>
            <Grid.RowDefinitions>
                <RowDefinition Height="Auto"/>  <!-- 标题固定高度 -->
                <RowDefinition Height="*"/>     <!-- 图表自适应 -->
            </Grid.RowDefinitions>
            <!-- 图表内容 -->
        </Grid>
    </Border>
</Grid>

💡 实战经验：很多人习惯用StackPanel，但它无法实现真正的响应式。Grid配合星号才是王道！

LiveCharts图表配置

C#
// ViewModel中的图表初始化
private void InitializeCharts()
{
    // 配置数据映射
    var dayConfig = Mappers.Xy<ChartDataPoint>()
        .X((dayModel, index) => index)
        .Y(dayModel => dayModel.Value);

    Charting.For<ChartDataPoint>(dayConfig);

    // 温度趋势图配置
    TemperatureSeries = new SeriesCollection
    {
        new LineSeries
        {
            Title = "温度",
            Values = new ChartValues<ChartDataPoint>(),
            Stroke = new SolidColorBrush(Color.FromRgb(52, 152, 219)),
            Fill = Brushes.Transparent,
            StrokeThickness = 2,
            PointGeometry = null,      // 去掉数据点，性能更好
            LineSmoothness = 0.3       // 平滑曲线效果
        }
    };
}

实时数据更新机制

C#
// 高性能的数据更新方案
private void UpdateChartData()
{
    var tempValues = TemperatureSeries[0].Values;
    tempValues.Add(new ChartDataPoint { Value = Temperature });

    // 🔥 性能优化：限制数据点数量
    if (tempValues.Count > 10)
        tempValues.RemoveAt(0);

    // 更新时间轴标签
    TimeLabels.RemoveAt(0);
    TimeLabels.Add(DateTime.Now.ToString("HH:mm"));
}

⚠️ 常见坑点：不要无限制地添加数据点，超过100个点性能会明显下降！

UI样式

XML
<!-- 卡片样式定义 -->
<Style x:Key="CardStyle" TargetType="Border">
    <Setter Property="Background" Value="#FF2C3E50"/>
    <Setter Property="CornerRadius" Value="8"/>
    <Setter Property="Margin" Value="5"/>
    <Setter Property="Effect">
        <Setter.Value>
            <DropShadowEffect BlurRadius="10" ShadowDepth="3"
                            Color="#FF000000" Opacity="0.3"/>
        </Setter.Value>
    </Setter>
</Style>

<Style x:Key="ModernButtonStyle" TargetType="Button">
    <Setter Property="Background" Value="#FF3498DB"/>
    <Setter Property="Foreground" Value="White"/>
    <Setter Property="BorderThickness" Value="0"/>
    <Setter Property="Template">
        <Setter.Value>
            <ControlTemplate TargetType="Button">
                <Border Background="{TemplateBinding Background}"
                        CornerRadius="5">
                    <ContentPresenter HorizontalAlignment="Center"
                                    VerticalAlignment="Center"/>
                </Border>
                <ControlTemplate.Triggers>
                    <Trigger Property="IsMouseOver" Value="True">
                        <Setter Property="Background" Value="#FF2980B9"/>
                    </Trigger>
                </ControlTemplate.Triggers>
            </ControlTemplate>
        </Setter.Value>
    </Setter>
</Style>

🚀 核心代码实现

MainViewModel完整实现

C#
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Runtime.CompilerServices;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Media;
using System.Windows.Threading;
using LiveCharts;
using LiveCharts.Configurations;
using LiveCharts.Wpf;

namespace AppWpfMonitoringSystem
{
    public class MainViewModel : INotifyPropertyChanged
    {
        private readonly DispatcherTimer _dataTimer;
        private readonly Random _random;
        private bool _isMonitoring;

        // 实时数据
        private double _temperature = 25.0;
        private double _pressure = 1.2;
        private double _flowRate = 15.5;
        private double _power = 12.8;

        // 系统信息
        private double _cpuUsage = 45;
        private double _memoryUsage = 68;
        private string _networkLatency = "15ms";
        private string _connectedDevices = "8/10";
        private string _runningTime = "02:15:30";

        // 界面状态
        private string _currentTime = DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss");
        private string _statusMessage = "系统正常运行";
        private string _monitoringStatus = "监控中";
        private string _dataCount = "数据点: 1,234";

        // 参数设置
        private double _tempUpperLimit = 80;
        private double _pressureUpperLimit = 25;
        private double _dataInterval = 5;

        public MainViewModel()
        {
            _random = new Random();

            // 初始化数据集合
            DeviceStatuses = new ObservableCollection<DeviceStatus>();
            AlarmMessages = new ObservableCollection<AlarmMessage>();

            // 初始化图表数据
            InitializeCharts();

            // 初始化设备状态
            InitializeDeviceStatuses();

            // 初始化数据更新定时器
            _dataTimer = new DispatcherTimer
            {
                Interval = TimeSpan.FromSeconds(DataInterval)
            };
            _dataTimer.Tick += DataTimer_Tick;
        }

        #region 属性

        public string CurrentTime
        {
            get => _currentTime;
            set => SetProperty(ref _currentTime, value);
        }

        public double Temperature
        {
            get => _temperature;
            set => SetProperty(ref _temperature, value);
        }

        public double Pressure
        {
            get => _pressure;
            set => SetProperty(ref _pressure, value);
        }

        public double FlowRate
        {
            get => _flowRate;
            set => SetProperty(ref _flowRate, value);
        }

        public double Power
        {
            get => _power;
            set => SetProperty(ref _power, value);
        }

        public double CpuUsage
        {
            get => _cpuUsage;
            set => SetProperty(ref _cpuUsage, value);
        }

        public double MemoryUsage
        {
            get => _memoryUsage;
            set => SetProperty(ref _memoryUsage, value);
        }

        public string NetworkLatency
        {
            get => _networkLatency;
            set => SetProperty(ref _networkLatency, value);
        }

        public string ConnectedDevices
        {
            get => _connectedDevices;
            set => SetProperty(ref _connectedDevices, value);
        }

        public string RunningTime
        {
            get => _runningTime;
            set => SetProperty(ref _runningTime, value);
        }

        public string StatusMessage
        {
            get => _statusMessage;
            set => SetProperty(ref _statusMessage, value);
        }

        public string MonitoringStatus
        {
            get => _monitoringStatus;
            set => SetProperty(ref _monitoringStatus, value);
        }

        public string DataCount
        {
            get => _dataCount;
            set => SetProperty(ref _dataCount, value);
        }

        public double TempUpperLimit
        {
            get => _tempUpperLimit;
            set => SetProperty(ref _tempUpperLimit, value);
        }

        public double PressureUpperLimit
        {
            get => _pressureUpperLimit;
            set => SetProperty(ref _pressureUpperLimit, value);
        }

        public double DataInterval
        {
            get => _dataInterval;
            set
            {
                if (SetProperty(ref _dataInterval, value))
                {
                    _dataTimer.Interval = TimeSpan.FromSeconds(value);
                }
            }
        }

        public ObservableCollection<DeviceStatus> DeviceStatuses { get; }
        public ObservableCollection<AlarmMessage> AlarmMessages { get; }

        // 图表系列
        public SeriesCollection TemperatureSeries { get; set; }
        public SeriesCollection PressureSeries { get; set; }
        public SeriesCollection FlowRateSeries { get; set; }
        public SeriesCollection PowerDistributionSeries { get; set; }
        public List<string> TimeLabels { get; set; }

        #endregion

        #region 方法

        public void UpdateCurrentTime()
        {
            CurrentTime = DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss");
        }

        public void StartMonitoring()
        {
            if (!_isMonitoring)
            {
                _isMonitoring = true;
                _dataTimer.Start();
                MonitoringStatus = "监控中";
                StatusMessage = "监控已启动";

                AddAlarmMessage("系统启动", "监控系统已启动", "#FF27AE60");
            }
        }

        public void StopMonitoring()
        {
            if (_isMonitoring)
            {
                _isMonitoring = false;
                _dataTimer.Stop();
                MonitoringStatus = "已停止";
                StatusMessage = "监控已停止";

                AddAlarmMessage("系统停止", "监控系统已停止", "#FFFFC107");
            }
        }

        public void ExportData()
        {
            // 这里实现数据导出逻辑
            StatusMessage = "正在导出数据...";

            // 模拟导出过程
            Task.Run(async () =>
            {
                await Task.Delay(2000);
                Application.Current.Dispatcher.Invoke(() =>
                {
                    StatusMessage = "数据导出完成";
                    AddAlarmMessage("数据导出", "数据已成功导出到文件", "#FF3498DB");
                });
            });
        }

        private void InitializeCharts()
        {
            var dayConfig = Mappers.Xy<ChartDataPoint>()
                .X((dayModel, index) => index)
                .Y(dayModel => dayModel.Value);

            var mapper = dayConfig;
            Charting.For<ChartDataPoint>(mapper);

            // 初始化时间标签
            TimeLabels = new List<string>();
            for (int i = 0; i < 20; i++)
            {
                TimeLabels.Add(DateTime.Now.AddMinutes(-20 + i).ToString("HH:mm"));
            }

            // 温度图表
            TemperatureSeries = new SeriesCollection
            {
                new LineSeries
                {
                    Title = "温度",
                    Values = new ChartValues<ChartDataPoint>(),
                    Stroke = new SolidColorBrush(Color.FromRgb(52, 152, 219)),
                    Fill = Brushes.Transparent,
                    StrokeThickness = 3,
                    PointGeometry = DefaultGeometries.Circle,
                    PointGeometrySize = 6
                }
            };

            // 压力图表
            PressureSeries = new SeriesCollection
            {
                new LineSeries
                {
                    Title = "压力",
                    Values = new ChartValues<ChartDataPoint>(),
                    Stroke = new SolidColorBrush(Color.FromRgb(39, 174, 96)),
                    Fill = Brushes.Transparent,
                    StrokeThickness = 3,
                    PointGeometry = DefaultGeometries.Square,
                    PointGeometrySize = 6
                }
            };

            // 流量图表
            FlowRateSeries = new SeriesCollection
            {
                new LineSeries
                {
                    Title = "流量",
                    Values = new ChartValues<ChartDataPoint>(),
                    Stroke = new SolidColorBrush(Color.FromRgb(243, 156, 18)),
                    Fill = Brushes.Transparent,
                    StrokeThickness = 3,
                    PointGeometry = DefaultGeometries.Diamond,
                    PointGeometrySize = 6
                }
            };

            // 功率分布饼图
            PowerDistributionSeries = new SeriesCollection
            {
                new PieSeries
                {
                    Title = "泵1",
                    Values = new ChartValues<double> {35},
                    DataLabels = true,
                    Fill = new SolidColorBrush(Color.FromRgb(52, 152, 219))
                },
                new PieSeries
                {
                    Title = "泵2",
                    Values = new ChartValues<double> {25},
                    DataLabels = true,
                    Fill = new SolidColorBrush(Color.FromRgb(39, 174, 96))
                },
                new PieSeries
                {
                    Title = "压缩机",
                    Values = new ChartValues<double> {30},
                    DataLabels = true,
                    Fill = new SolidColorBrush(Color.FromRgb(243, 156, 18))
                },
                new PieSeries
                {
                    Title = "其他",
                    Values = new ChartValues<double> {10},
                    DataLabels = true,
                    Fill = new SolidColorBrush(Color.FromRgb(149, 165, 166))
                }
            };

            // 初始化历史数据
            InitializeHistoricalData();
        }

        private void InitializeHistoricalData()
        {
            var tempValues = TemperatureSeries[0].Values;
            var pressureValues = PressureSeries[0].Values;
            var flowValues = FlowRateSeries[0].Values;

            for (int i = 0; i < 20; i++)
            {
                tempValues.Add(new ChartDataPoint { Value = 20 + _random.NextDouble() * 15 });
                pressureValues.Add(new ChartDataPoint { Value = 1 + _random.NextDouble() * 3 });
                flowValues.Add(new ChartDataPoint { Value = 10 + _random.NextDouble() * 15 });
            }
        }

        private void InitializeDeviceStatuses()
        {
            DeviceStatuses.Add(new DeviceStatus { DeviceName = "主泵1", Status = "运行", StatusColor = "#FF27AE60" });
            DeviceStatuses.Add(new DeviceStatus { DeviceName = "主泵2", Status = "运行", StatusColor = "#FF27AE60" });
            DeviceStatuses.Add(new DeviceStatus { DeviceName = "备用泵", Status = "待机", StatusColor = "#FFFFC107" });
            DeviceStatuses.Add(new DeviceStatus { DeviceName = "压缩机", Status = "运行", StatusColor = "#FF27AE60" });
            DeviceStatuses.Add(new DeviceStatus { DeviceName = "冷却塔", Status = "运行", StatusColor = "#FF27AE60" });
            DeviceStatuses.Add(new DeviceStatus { DeviceName = "控制阀A", Status = "开启", StatusColor = "#FF3498DB" });
            DeviceStatuses.Add(new DeviceStatus { DeviceName = "控制阀B", Status = "关闭", StatusColor = "#FF95A5A6" });
            DeviceStatuses.Add(new DeviceStatus { DeviceName = "传感器1", Status = "故障", StatusColor = "#FFE74C3C" });
        }

        private void DataTimer_Tick(object sender, EventArgs e)
        {
            if (!_isMonitoring) return;

            // 更新实时数据
            UpdateRealTimeData();

            // 更新图表数据
            UpdateChartData();

            // 更新系统信息
            UpdateSystemInfo();

            // 检查告警条件
            CheckAlarms();
        }

        private void UpdateRealTimeData()
        {
            Temperature = 20 + _random.NextDouble() * 30;
            Pressure = 1 + _random.NextDouble() * 4;
            FlowRate = 10 + _random.NextDouble() * 20;
            Power = 8 + _random.NextDouble() * 15;
        }

        private void UpdateChartData()
        {
            // 更新温度图表
            var tempValues = TemperatureSeries[0].Values;
            tempValues.Add(new ChartDataPoint { Value = Temperature });
            if (tempValues.Count > 20)
                tempValues.RemoveAt(0);

            // 更新压力图表
            var pressureValues = PressureSeries[0].Values;
            pressureValues.Add(new ChartDataPoint { Value = Pressure });
            if (pressureValues.Count > 20)
                pressureValues.RemoveAt(0);

            // 更新流量图表
            var flowValues = FlowRateSeries[0].Values;
            flowValues.Add(new ChartDataPoint { Value = FlowRate });
            if (flowValues.Count > 20)
                flowValues.RemoveAt(0);

            // 更新时间标签
            TimeLabels.RemoveAt(0);
            TimeLabels.Add(DateTime.Now.ToString("HH:mm"));
        }

        private void UpdateSystemInfo()
        {
            CpuUsage = 30 + _random.NextDouble() * 40;
            MemoryUsage = 50 + _random.NextDouble() * 30;
            NetworkLatency = $"{10 + _random.Next(20)}ms";

            // 更新数据计数
            var count = 1234 + (int)(DateTime.Now.Ticks / TimeSpan.TicksPerSecond % 1000);
            DataCount = $"数据点: {count:N0}";
        }

        private void CheckAlarms()
        {
            // 温度告警
            if (Temperature > TempUpperLimit * 0.8)
            {
                AddAlarmMessage("温度告警",
                    $"温度过高: {Temperature:F1}°C (上限: {TempUpperLimit}°C)",
                    "#FFFF6B35");
            }

            // 压力告警
            if (Pressure > PressureUpperLimit * 0.8)
            {
                AddAlarmMessage("压力告警",
                    $"压力过高: {Pressure:F1} Bar (上限: {PressureUpperLimit} Bar)",
                    "#FFFF6B35");
            }

            // 随机生成一些告警
            if (_random.NextDouble() < 0.05) // 5%概率
            {
                var alarms = new[]
                {
                    ("设备告警", "传感器1通信超时", "#FFE74C3C"),
                    ("系统提示", "数据备份完成", "#FF27AE60"),
                    ("维护提醒", "设备A需要定期维护", "#FFFFC107")
                };

                var alarm = alarms[_random.Next(alarms.Length)];
                AddAlarmMessage(alarm.Item1, alarm.Item2, alarm.Item3);
            }
        }

        private void AddAlarmMessage(string type, string message, string color)
        {
            AlarmMessages.Insert(0, new AlarmMessage
            {
                Type = type,
                Message = message,
                Timestamp = DateTime.Now.ToString("HH:mm:ss"),
                AlarmColor = color
            });

            // 限制告警消息数量
            if (AlarmMessages.Count > 20)
            {
                AlarmMessages.RemoveAt(AlarmMessages.Count - 1);
            }
        }

        #endregion

        #region INotifyPropertyChanged

        public event PropertyChangedEventHandler PropertyChanged;

        protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }

        protected bool SetProperty<T>(ref T backingStore, T value,
            [CallerMemberName] string propertyName = "",
            Action onChanged = null)
        {
            if (EqualityComparer<T>.Default.Equals(backingStore, value))
                return false;

            backingStore = value;
            onChanged?.Invoke();
            OnPropertyChanged(propertyName);
            return true;
        }

        #endregion
    }
}

完整的XAML布局

XML
<Window x:Class="AppWpfMonitoringSystem.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AppWpfMonitoringSystem"
        mc:Ignorable="d"
        xmlns:lvc="clr-namespace:LiveCharts.Wpf;assembly=LiveCharts.Wpf"
        Title="MainWindow" Height="450" Width="800">
    <Window.Resources>
        <!-- 定义样式 -->
        <Style x:Key="ModernButtonStyle" TargetType="Button">
            <Setter Property="Background" Value="#FF3498DB"/>
            <Setter Property="Foreground" Value="White"/>
            <Setter Property="BorderThickness" Value="0"/>
            <Setter Property="Padding" Value="15,8"/>
            <Setter Property="Margin" Value="5"/>
            <Setter Property="FontSize" Value="14"/>
            <Setter Property="FontWeight" Value="SemiBold"/>
            <Setter Property="Cursor" Value="Hand"/>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="Button">
                        <Border Background="{TemplateBinding Background}"
                                CornerRadius="5"
                                BorderBrush="{TemplateBinding BorderBrush}"
                                BorderThickness="{TemplateBinding BorderThickness}">
                            <ContentPresenter HorizontalAlignment="Center"
                                            VerticalAlignment="Center"/>
                        </Border>
                        <ControlTemplate.Triggers>
                            <Trigger Property="IsMouseOver" Value="True">
                                <Setter Property="Background" Value="#FF2980B9"/>
                            </Trigger>
                        </ControlTemplate.Triggers>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>

        <Style x:Key="CardStyle" TargetType="Border">
            <Setter Property="Background" Value="#FF2C3E50"/>
            <Setter Property="CornerRadius" Value="8"/>
            <Setter Property="Margin" Value="5"/>
            <Setter Property="Effect">
                <Setter.Value>
                    <DropShadowEffect BlurRadius="10" ShadowDepth="3"
                            Color="#FF000000" Opacity="0.3"/>
                </Setter.Value>
            </Setter>
        </Style>

        <Style x:Key="HeaderTextStyle" TargetType="TextBlock">
            <Setter Property="Foreground" Value="White"/>
            <Setter Property="FontSize" Value="16"/>
            <Setter Property="FontWeight" Value="Bold"/>
            <Setter Property="Margin" Value="15,10,15,5"/>
        </Style>

        <Style x:Key="ValueTextStyle" TargetType="TextBlock">
            <Setter Property="Foreground" Value="#FF3498DB"/>
            <Setter Property="FontSize" Value="24"/>
            <Setter Property="FontWeight" Value="Bold"/>
            <Setter Property="HorizontalAlignment" Value="Center"/>
        </Style>

        <Style x:Key="StatusIndicatorStyle" TargetType="Ellipse">
            <Setter Property="Width" Value="15"/>
            <Setter Property="Height" Value="15"/>
            <Setter Property="Margin" Value="5"/>
        </Style>
    </Window.Resources>

    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="80"/>
            <RowDefinition Height="*"/>
            <RowDefinition Height="40"/>
        </Grid.RowDefinitions>

        <!-- 顶部工具栏 -->
        <Border Grid.Row="0" Background="#FF34495E"
                BorderBrush="#FF2C3E50" BorderThickness="0,0,0,2">
            <Grid>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="*"/>
                    <ColumnDefinition Width="Auto"/>
                </Grid.ColumnDefinitions>

                <StackPanel Grid.Column="0" Orientation="Horizontal"
                           VerticalAlignment="Center" Margin="20,0">
                    <TextBlock Text="工业监控系统"
                              Foreground="White"
                              FontSize="24"
                              FontWeight="Bold"
                              VerticalAlignment="Center"/>
                    <TextBlock Text="{Binding CurrentTime}"
                              Foreground="#FFBDC3C7"
                              FontSize="14"
                              VerticalAlignment="Center"
                              Margin="30,0,0,0"/>
                </StackPanel>

                <StackPanel Grid.Column="1" Orientation="Horizontal"
                           VerticalAlignment="Center" Margin="0,0,20,0">
                    <Button Content="开始监控" Style="{StaticResource ModernButtonStyle}"
                           Background="#FF27AE60" Click="StartMonitoring_Click"/>
                    <Button Content="停止监控" Style="{StaticResource ModernButtonStyle}"
                           Background="#FFE74C3C" Click="StopMonitoring_Click"/>
                    <Button Content="导出数据" Style="{StaticResource ModernButtonStyle}"
                           Click="ExportData_Click"/>
                </StackPanel>
            </Grid>
        </Border>

        <!-- 主要内容区域 -->
        <Grid Grid.Row="1">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="300"/>
                <ColumnDefinition Width="*"/>
                <ColumnDefinition Width="300"/>
            </Grid.ColumnDefinitions>

            <!-- 左侧状态面板 -->
            <ScrollViewer Grid.Column="0" VerticalScrollBarVisibility="Auto">
                <StackPanel>
                    <!-- 设备状态卡片 -->
                    <Border Style="{StaticResource CardStyle}">
                        <StackPanel>
                            <TextBlock Text="设备状态" Style="{StaticResource HeaderTextStyle}"/>
                            <ItemsControl ItemsSource="{Binding DeviceStatuses}">
                                <ItemsControl.ItemTemplate>
                                    <DataTemplate>
                                        <Grid Margin="15,5">
                                            <Grid.ColumnDefinitions>
                                                <ColumnDefinition Width="Auto"/>
                                                <ColumnDefinition Width="*"/>
                                                <ColumnDefinition Width="Auto"/>
                                            </Grid.ColumnDefinitions>
                                            <Ellipse Grid.Column="0"
                                                   Fill="{Binding StatusColor}"
                                                   Style="{StaticResource StatusIndicatorStyle}"/>
                                            <TextBlock Grid.Column="1"
                                                     Text="{Binding DeviceName}"
                                                     Foreground="White"
                                                     VerticalAlignment="Center"
                                                     Margin="10,0"/>
                                            <TextBlock Grid.Column="2"
                                                     Text="{Binding Status}"
                                                     Foreground="#FFBDC3C7"
                                                     FontSize="12"/>
                                        </Grid>
                                    </DataTemplate>
                                </ItemsControl.ItemTemplate>
                            </ItemsControl>
                        </StackPanel>
                    </Border>

                    <!-- 实时数据卡片 -->
                    <Border Style="{StaticResource CardStyle}">
                        <StackPanel>
                            <TextBlock Text="实时数据" Style="{StaticResource HeaderTextStyle}"/>

                            <Grid Margin="15">
                                <Grid.ColumnDefinitions>
                                    <ColumnDefinition Width="*"/>
                                    <ColumnDefinition Width="*"/>
                                </Grid.ColumnDefinitions>
                                <Grid.RowDefinitions>
                                    <RowDefinition Height="Auto"/>
                                    <RowDefinition Height="Auto"/>
                                    <RowDefinition Height="Auto"/>
                                    <RowDefinition Height="Auto"/>
                                </Grid.RowDefinitions>

                                <TextBlock Grid.Row="0" Grid.Column="0" Text="温度 (°C)"
                                         Foreground="White" FontSize="12"/>
                                <TextBlock Grid.Row="0" Grid.Column="1"
                                         Text="{Binding Temperature}"
                                         Style="{StaticResource ValueTextStyle}"
                                         FontSize="16"/>

                                <TextBlock Grid.Row="1" Grid.Column="0" Text="压力 (Bar)"
                                         Foreground="White" FontSize="12" Margin="0,10,0,0"/>
                                <TextBlock Grid.Row="1" Grid.Column="1"
                                         Text="{Binding Pressure}"
                                         Style="{StaticResource ValueTextStyle}"
                                         FontSize="16" Margin="0,10,0,0"/>

                                <TextBlock Grid.Row="2" Grid.Column="0" Text="流量 (L/min)"
                                         Foreground="White" FontSize="12" Margin="0,10,0,0"/>
                                <TextBlock Grid.Row="2" Grid.Column="1"
                                         Text="{Binding FlowRate}"
                                         Style="{StaticResource ValueTextStyle}"
                                         FontSize="16" Margin="0,10,0,0"/>

                                <TextBlock Grid.Row="3" Grid.Column="0" Text="功率 (kW)"
                                         Foreground="White" FontSize="12" Margin="0,10,0,0"/>
                                <TextBlock Grid.Row="3" Grid.Column="1"
                                         Text="{Binding Power}"
                                         Style="{StaticResource ValueTextStyle}"
                                         FontSize="16" Margin="0,10,0,0"/>
                            </Grid>
                        </StackPanel>
                    </Border>

                    <!-- 告警信息 -->
                    <Border Style="{StaticResource CardStyle}">
                        <StackPanel>
                            <TextBlock Text="告警信息" Style="{StaticResource HeaderTextStyle}"/>
                            <ListView ItemsSource="{Binding AlarmMessages}"
                                    Background="Transparent"
                                    BorderThickness="0"
                                    MaxHeight="200">
                                <ListView.ItemTemplate>
                                    <DataTemplate>
                                        <Grid Margin="5">
                                            <Grid.ColumnDefinitions>
                                                <ColumnDefinition Width="Auto"/>
                                                <ColumnDefinition Width="*"/>
                                            </Grid.ColumnDefinitions>
                                            <Ellipse Grid.Column="0"
                                                   Fill="{Binding AlarmColor}"
                                                   Width="8" Height="8"
                                                   VerticalAlignment="Top"
                                                   Margin="0,2,10,0"/>
                                            <StackPanel Grid.Column="1">
                                                <TextBlock Text="{Binding Message}"
                                                         Foreground="White"
                                                         FontSize="12"
                                                         TextWrapping="Wrap"/>
                                                <TextBlock Text="{Binding Timestamp}"
                                                         Foreground="#FFBDC3C7"
                                                         FontSize="10"/>
                                            </StackPanel>
                                        </Grid>
                                    </DataTemplate>
                                </ListView.ItemTemplate>
                            </ListView>
                        </StackPanel>
                    </Border>
                </StackPanel>
            </ScrollViewer>

            <!-- 中央图表区域 -->
            <Grid Grid.Column="1" Margin="5">
                <Grid.RowDefinitions>
                    <RowDefinition Height="*"/>
                    <RowDefinition Height="*"/>
                </Grid.RowDefinitions>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="*"/>
                    <ColumnDefinition Width="*"/>
                </Grid.ColumnDefinitions>

                <!-- 温度趋势图 -->
                <Border Grid.Row="0" Grid.Column="0" Style="{StaticResource CardStyle}" Margin="5">
                    <Grid>
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto"/>
                            <RowDefinition Height="*"/>
                        </Grid.RowDefinitions>
                        <TextBlock Grid.Row="0" Text="温度趋势" Style="{StaticResource HeaderTextStyle}"/>
                        <lvc:CartesianChart Grid.Row="1"
                              Series="{Binding TemperatureSeries}"
                              LegendLocation="None"
                              AnimationsSpeed="0:0:0.5"
                              Margin="10,0,10,10"
                              Background="Transparent">
                            <lvc:CartesianChart.AxisX>
                                <lvc:Axis Title="时间"
                            Foreground="White"
                            FontSize="10"
                            Labels="{Binding TimeLabels}">
                                    <lvc:Axis.Separator>
                                        <lvc:Separator StrokeThickness="1" StrokeDashArray="2" Stroke="#404040"/>
                                    </lvc:Axis.Separator>
                                </lvc:Axis>
                            </lvc:CartesianChart.AxisX>
                            <lvc:CartesianChart.AxisY>
                                <lvc:Axis Title="温度 (°C)"
                            Foreground="White"
                            FontSize="10">
                                    <lvc:Axis.Separator>
                                        <lvc:Separator StrokeThickness="1" StrokeDashArray="2" Stroke="#404040"/>
                                    </lvc:Axis.Separator>
                                </lvc:Axis>
                            </lvc:CartesianChart.AxisY>
                        </lvc:CartesianChart>
                    </Grid>
                </Border>

                <!-- 压力趋势图 -->
                <Border Grid.Row="0" Grid.Column="1" Style="{StaticResource CardStyle}" Margin="5">
                    <Grid>
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto"/>
                            <RowDefinition Height="*"/>
                        </Grid.RowDefinitions>
                        <TextBlock Grid.Row="0" Text="压力趋势" Style="{StaticResource HeaderTextStyle}"/>
                        <lvc:CartesianChart Grid.Row="1"
                              Series="{Binding PressureSeries}"
                              LegendLocation="None"
                              AnimationsSpeed="0:0:0.5"
                              Margin="10,0,10,10"
                              Background="Transparent">
                            <lvc:CartesianChart.AxisX>
                                <lvc:Axis Title="时间"
                            Foreground="White"
                            FontSize="10"
                            Labels="{Binding TimeLabels}">
                                    <lvc:Axis.Separator>
                                        <lvc:Separator StrokeThickness="1" StrokeDashArray="2" Stroke="#404040"/>
                                    </lvc:Axis.Separator>
                                </lvc:Axis>
                            </lvc:CartesianChart.AxisX>
                            <lvc:CartesianChart.AxisY>
                                <lvc:Axis Title="压力 (Bar)"
                            Foreground="White"
                            FontSize="10">
                                    <lvc:Axis.Separator>
                                        <lvc:Separator StrokeThickness="1" StrokeDashArray="2" Stroke="#404040"/>
                                    </lvc:Axis.Separator>
                                </lvc:Axis>
                            </lvc:CartesianChart.AxisY>
                        </lvc:CartesianChart>
                    </Grid>
                </Border>

                <!-- 流量趋势图 -->
                <Border Grid.Row="1" Grid.Column="0" Style="{StaticResource CardStyle}" Margin="5">
                    <Grid>
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto"/>
                            <RowDefinition Height="*"/>
                        </Grid.RowDefinitions>
                        <TextBlock Grid.Row="0" Text="流量趋势" Style="{StaticResource HeaderTextStyle}"/>
                        <lvc:CartesianChart Grid.Row="1"
                              Series="{Binding FlowRateSeries}"
                              LegendLocation="None"
                              AnimationsSpeed="0:0:0.5"
                              Margin="10,0,10,10"
                              Background="Transparent">
                            <lvc:CartesianChart.AxisX>
                                <lvc:Axis Title="时间"
                            Foreground="White"
                            FontSize="10"
                            Labels="{Binding TimeLabels}">
                                    <lvc:Axis.Separator>
                                        <lvc:Separator StrokeThickness="1" StrokeDashArray="2" Stroke="#404040"/>
                                    </lvc:Axis.Separator>
                                </lvc:Axis>
                            </lvc:CartesianChart.AxisX>
                            <lvc:CartesianChart.AxisY>
                                <lvc:Axis Title="流量 (L/min)"
                            Foreground="White"
                            FontSize="10">
                                    <lvc:Axis.Separator>
                                        <lvc:Separator StrokeThickness="1" StrokeDashArray="2" Stroke="#404040"/>
                                    </lvc:Axis.Separator>
                                </lvc:Axis>
                            </lvc:CartesianChart.AxisY>
                        </lvc:CartesianChart>
                    </Grid>
                </Border>

                <!-- 功率分布饼图 -->
                <Border Grid.Row="1" Grid.Column="1" Style="{StaticResource CardStyle}" Margin="5">
                    <Grid>
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto"/>
                            <RowDefinition Height="*"/>
                        </Grid.RowDefinitions>
                        <TextBlock Grid.Row="0" Text="功率分布" Style="{StaticResource HeaderTextStyle}"/>
                        <lvc:PieChart Grid.Row="1"
                        Series="{Binding PowerDistributionSeries}"
                        LegendLocation="Bottom"
                        InnerRadius="30"
                        Margin="10"
                        Background="Transparent">
                            <lvc:PieChart.ChartLegend>
                                <lvc:DefaultLegend BulletSize="8"
                                     Foreground="White"
                                     FontSize="9"/>
                            </lvc:PieChart.ChartLegend>
                        </lvc:PieChart>
                    </Grid>
                </Border>
            </Grid>

            <!-- 右侧控制面板 -->
            <ScrollViewer Grid.Column="2" VerticalScrollBarVisibility="Auto">
                <StackPanel>
                    <!-- 系统信息 -->
                    <Border Style="{StaticResource CardStyle}">
                        <StackPanel>
                            <TextBlock Text="系统信息" Style="{StaticResource HeaderTextStyle}"/>
                            <Grid Margin="15">
                                <Grid.RowDefinitions>
                                    <RowDefinition Height="Auto"/>
                                    <RowDefinition Height="Auto"/>
                                    <RowDefinition Height="Auto"/>
                                    <RowDefinition Height="Auto"/>
                                    <RowDefinition Height="Auto"/>
                                </Grid.RowDefinitions>
                                <Grid.ColumnDefinitions>
                                    <ColumnDefinition Width="Auto"/>
                                    <ColumnDefinition Width="*"/>
                                </Grid.ColumnDefinitions>

                                <TextBlock Grid.Row="0" Grid.Column="0" Text="CPU使用率:"
                                         Foreground="White" FontSize="12"/>
                                <ProgressBar Grid.Row="0" Grid.Column="1"
                                           Value="{Binding CpuUsage}"
                                           Height="15" Margin="10,0,0,5"
                                           Foreground="#FF3498DB"/>

                                <TextBlock Grid.Row="1" Grid.Column="0" Text="内存使用:"
                                         Foreground="White" FontSize="12" Margin="0,5,0,0"/>
                                <ProgressBar Grid.Row="1" Grid.Column="1"
                                           Value="{Binding MemoryUsage}"
                                           Height="15" Margin="10,5,0,5"
                                           Foreground="#FF27AE60"/>

                                <TextBlock Grid.Row="2" Grid.Column="0" Text="网络延迟:"
                                         Foreground="White" FontSize="12" Margin="0,5,0,0"/>
                                <TextBlock Grid.Row="2" Grid.Column="1"
                                         Text="{Binding NetworkLatency}"
                                         Foreground="#FF3498DB"
                                         FontSize="12" Margin="10,5,0,0"/>

                                <TextBlock Grid.Row="3" Grid.Column="0" Text="连接设备:"
                                         Foreground="White" FontSize="12" Margin="0,5,0,0"/>
                                <TextBlock Grid.Row="3" Grid.Column="1"
                                         Text="{Binding ConnectedDevices}"
                                         Foreground="#FF27AE60"
                                         FontSize="12" Margin="10,5,0,0"/>

                                <TextBlock Grid.Row="4" Grid.Column="0" Text="运行时间:"
                                         Foreground="White" FontSize="12" Margin="0,5,0,0"/>
                                <TextBlock Grid.Row="4" Grid.Column="1"
                                         Text="{Binding RunningTime}"
                                         Foreground="#FFBDC3C7"
                                         FontSize="12" Margin="10,5,0,0"/>
                            </Grid>
                        </StackPanel>
                    </Border>

                    <!-- 设备控制 -->
                    <Border Style="{StaticResource CardStyle}">
                        <StackPanel>
                            <TextBlock Text="设备控制" Style="{StaticResource HeaderTextStyle}"/>
                            <UniformGrid Columns="2" Margin="15">
                                <Button Content="启动泵1" Style="{StaticResource ModernButtonStyle}"
                                       Background="#FF27AE60"/>
                                <Button Content="停止泵1" Style="{StaticResource ModernButtonStyle}"
                                       Background="#FFE74C3C"/>
                                <Button Content="启动泵2" Style="{StaticResource ModernButtonStyle}"
                                       Background="#FF27AE60"/>
                                <Button Content="停止泵2" Style="{StaticResource ModernButtonStyle}"
                                       Background="#FFE74C3C"/>
                                <Button Content="开启阀门" Style="{StaticResource ModernButtonStyle}"
                                       Background="#FFF39C12"/>
                                <Button Content="关闭阀门" Style="{StaticResource ModernButtonStyle}"
                                       Background="#FF95A5A6"/>
                            </UniformGrid>
                        </StackPanel>
                    </Border>

                    <!-- 参数设置 -->
                    <Border Style="{StaticResource CardStyle}">
                        <StackPanel>
                            <TextBlock Text="参数设置" Style="{StaticResource HeaderTextStyle}"/>
                            <Grid Margin="15">
                                <Grid.RowDefinitions>
                                    <RowDefinition Height="Auto"/>
                                    <RowDefinition Height="Auto"/>
                                    <RowDefinition Height="Auto"/>
                                    <RowDefinition Height="Auto"/>
                                </Grid.RowDefinitions>

                                <StackPanel Grid.Row="0" Margin="0,5">
                                    <TextBlock Text="温度上限 (°C)" Foreground="White" FontSize="12"/>
                                    <Slider Value="{Binding TempUpperLimit}"
                                          Minimum="0" Maximum="200"
                                          TickFrequency="10"
                                          IsSnapToTickEnabled="True"
                                          Margin="0,5"/>
                                    <TextBlock Text="{Binding TempUpperLimit}"
                                             Foreground="#FF3498DB"
                                             HorizontalAlignment="Center"/>
                                </StackPanel>

                                <StackPanel Grid.Row="1" Margin="0,10,0,5">
                                    <TextBlock Text="压力上限 (Bar)" Foreground="White" FontSize="12"/>
                                    <Slider Value="{Binding PressureUpperLimit}"
                                          Minimum="0" Maximum="50"
                                          TickFrequency="5"
                                          IsSnapToTickEnabled="True"
                                          Margin="0,5"/>
                                    <TextBlock Text="{Binding PressureUpperLimit}"
                                             Foreground="#FF3498DB"
                                             HorizontalAlignment="Center"/>
                                </StackPanel>

                                <StackPanel Grid.Row="2" Margin="0,10,0,5">
                                    <TextBlock Text="数据采集间隔 (秒)" Foreground="White" FontSize="12"/>
                                    <Slider Value="{Binding DataInterval}"
                                          Minimum="1" Maximum="60"
                                          TickFrequency="5"
                                          IsSnapToTickEnabled="True"
                                          Margin="0,5"/>
                                    <TextBlock Text="{Binding DataInterval}"
                                             Foreground="#FF3498DB"
                                             HorizontalAlignment="Center"/>
                                </StackPanel>

                                <Button Grid.Row="3" Content="应用设置"
                                      Style="{StaticResource ModernButtonStyle}"
                                      Margin="0,15,0,0"/>
                            </Grid>
                        </StackPanel>
                    </Border>
                </StackPanel>
            </ScrollViewer>
        </Grid>

        <!-- 底部状态栏 -->
        <Border Grid.Row="2" Background="#FF34495E"
                BorderBrush="#FF2C3E50" BorderThickness="0,2,0,0">
            <Grid>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="*"/>
                    <ColumnDefinition Width="Auto"/>
                    <ColumnDefinition Width="Auto"/>
                    <ColumnDefinition Width="Auto"/>
                </Grid.ColumnDefinitions>

                <TextBlock Grid.Column="0"
                          Text="{Binding StatusMessage}"
                          Foreground="White"
                          VerticalAlignment="Center"
                          Margin="20,0"/>

                <TextBlock Grid.Column="1"
                          Text="{Binding MonitoringStatus}"
                          Foreground="#FF27AE60"
                          VerticalAlignment="Center"
                          Margin="20,0"/>

                <TextBlock Grid.Column="2"
                          Text="{Binding DataCount}"
                          Foreground="#FF3498DB"
                          VerticalAlignment="Center"
                          Margin="20,0"/>

                <TextBlock Grid.Column="3"
                          Text="v1.0.0"
                          Foreground="#FFBDC3C7"
                          VerticalAlignment="Center"
                          Margin="20,0"/>
            </Grid>
        </Border>
    </Grid>
</Window>

C#
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using System.Windows.Threading;

namespace AppWpfMonitoringSystem
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        private readonly DispatcherTimer _timer;
        private readonly MainViewModel _viewModel;
        public MainWindow()
        {
            InitializeComponent();
            _viewModel = new MainViewModel();
            DataContext = _viewModel;

            // 初始化定时器
            _timer = new DispatcherTimer
            {
                Interval = TimeSpan.FromSeconds(1)
            };
            _timer.Tick += Timer_Tick;
            _timer.Start();
        }

        private void Timer_Tick(object sender, EventArgs e)
        {
            _viewModel.UpdateCurrentTime();
        }

        private void StartMonitoring_Click(object sender, RoutedEventArgs e)
        {
            _viewModel.StartMonitoring();
        }

        private void StopMonitoring_Click(object sender, RoutedEventArgs e)
        {
            _viewModel.StopMonitoring();
        }

        private void ExportData_Click(object sender, RoutedEventArgs e)
        {
            _viewModel.ExportData();
        }
    }
}

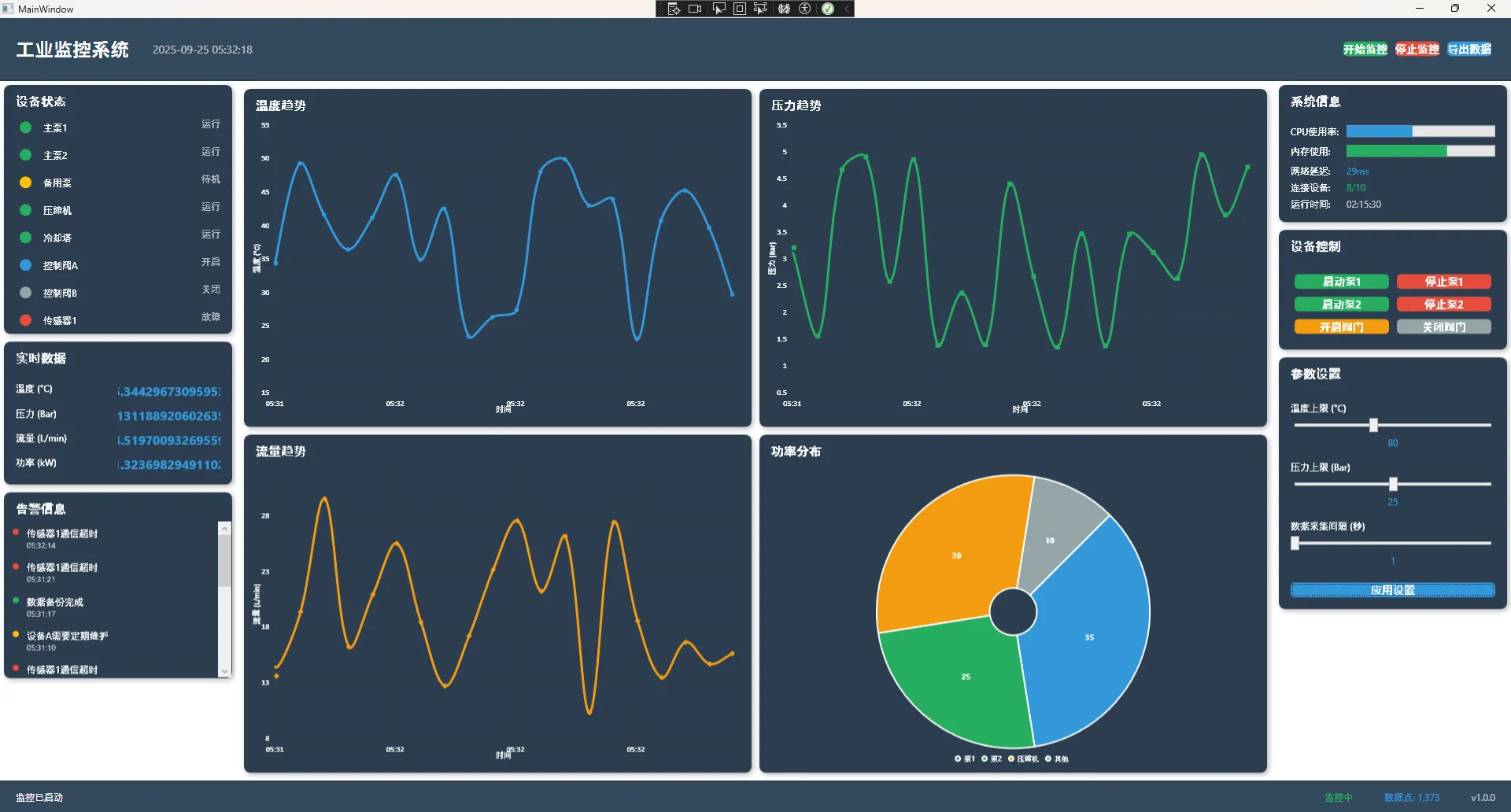

🎨 设计亮点解析

配色方案

• 主色调：深蓝灰 (#2C3E50) - 专业沉稳
• 强调色：蓝色 (#3498DB) - 科技感
• 成功色：绿色 (#27AE60) - 状态正常
• 警告色：橙色 (#F39C12) - 需要注意
• 错误色：红色 (#E74C3C) - 紧急状态

动画效果

C#
// 图表动画配置
AnimationsSpeed="0:0:0.5"  // 0.5秒动画时长
LineSmoothness = 0.3       // 线条平滑度

3. 响应式设计

• 最小分辨率：1200x600，兼容主流显示器
• 自适应布局：图表区域根据窗口大小自动调整
• 字体缩放：支持不同DPI设置

⚡ 性能优化技巧

数据量控制

C#
// 限制历史数据点数量
if (tempValues.Count > 10)
    tempValues.RemoveAt(0);

UI虚拟化

XML
<!-- ListView使用虚拟化 -->
<ListView VirtualizingPanel.IsVirtualizing="True"
          VirtualizingPanel.VirtualizationMode="Recycling">

定时器优化

C#
// 避免过于频繁的更新
_dataTimer.Interval = TimeSpan.FromSeconds(1); // 1秒更新一次

🎯 总结与思考

通过本文的实战演练，我们成功打造了一个颜值与功能并存的工业监控界面。核心要点总结：

🔥 三个关键技术点：

1. 响应式布局：Grid + 星号布局是响应式设计的基石
2. 性能优化：限制数据点数量，避免内存泄漏
3. 现代化UI：卡片式设计 + 阴影效果 + 动画过渡

这套方案不仅适用于工业监控，还可以扩展到金融数据看板、网站流量分析、IoT设备管理等各种数据可视化场景。

💬 互动时间

问题1：你在项目中使用过哪些图表库？LiveCharts相比其他方案有什么优势？

问题2：对于大数据量的实时更新场景，你还有什么更好的优化方案？

如果这篇文章对你有帮助，请转发给更多同行！我们一起用技术改变世界！

---

关注我，获取更多C#开发实战技巧和最佳实践！
