引言

OPC（OLE for Process Control）数据访问（DA）是工业自动化中常用的通信协议，用于在不同软件和硬件系统之间交换实时数据。本文将详细介绍如何使用C#和OpcClientSdk实现OPC DA的异步读写操作。

开发环境准备

在开始之前，需要具备以下环境：

• Visual Studio
• .NET Framework
• OpcClientSdk类库
• OPC DA服务器

关键代码解析

服务器发现与连接

C#
// 发现可用的OPC DA服务器
private void Form1_Load(object sender, EventArgs e)
{
    List<OpcServer> servers = OpcDiscovery.GetServers(OpcSpecification.OPC_DA_20);

    if (servers != null && servers.Count > 0)
    {
        foreach (OpcServer server in servers)
        {
            // 将服务器名称添加到下拉列表
            cboServer.Items.Add(server.ServerName);
        }
    }
}

// 连接到选定的OPC服务器
private void btnConnect_Click(object sender, EventArgs e)
{
    try
    {
        // 设置等待光标
        Cursor = Cursors.WaitCursor;

        // 创建OPC服务器连接URL
        OpcUrl opcUrl = new OpcUrl(OpcSpecification.OPC_DA_20, OpcUrlScheme.DA, cboServer.Text);

        // 连接到OPC服务器
        _OpcDaServer.Connect(opcUrl, null);
    }
    catch (OpcResultException exe)
    {
        MessageBox.Show(exe.Message, "连接错误", MessageBoxButtons.OK, MessageBoxIcon.Warning);
    }
}

创建订阅组并添加数据项

C#
private void btnAddItem_Click(object sender, EventArgs e)
{
    try
    {
        // 配置订阅组状态
        TsCDaSubscriptionState groupState = new TsCDaSubscriptionState
        {
            Name = "MyGroup",                  // 组名
            ClientHandle = "test",
            Deadband = 0,                      // 死区
            UpdateRate = 1000,                 // 更新周期（毫秒）
            KeepAlive = 10000                  // 保持活跃时间
        };

        // 创建订阅组
        _pOpcGroup = (TsCDaSubscription)_OpcDaServer.CreateSubscription(groupState);

        // 配置数据项
        TsCDaItem[] items = new TsCDaItem[]
        {
            new TsCDaItem
            {
                ItemName = txtOpcItem.Text,    // OPC数据项名称
                ClientHandle = 100             // 客户端句柄
            }
        };

        // 添加数据项到订阅组
        _arAddedItems = _pOpcGroup.AddItems(items);
    }
    catch (Exception ex)
    {
        MessageBox.Show(ex.Message, "错误", MessageBoxButtons.OK, MessageBoxIcon.Exclamation);
    }
}

异步读取数据

C#
private void btnRead_Click(object sender, EventArgs e)
{
    // 异步读取数据项
    OpcItemResult[] res = _pOpcGroup.Read(
        _arAddedItems,           // 待读取的数据项
        100,                     // 超时时间
        new TsCDaReadCompleteEventHandler(ReadCompleteHandler), // 回调方法
        out _ITRequest            // 请求句柄
    );

    if (res[0].Result.IsError())
    {
        MessageBox.Show("读取操作失败: " + res[0].Result.Description(), "错误");
    }
}

// 读取完成回调方法
private void ReadCompleteHandler(object requestHandle, TsCDaItemValueResult[] e)
{
    if (e[0].Result.IsSuccess())
    {
        // 处理读取的数据
        string sReadResult = $"Value: {e[0].Value}\n" +
                             $"Quality: {e[0].Quality}\n" +
                             $"TimeStamp: {e[0].Timestamp}";

        // 线程安全地更新UI
        txtLog.Invoke(new addTextFromThreadDelegate((x) =>
        {
            txtLog.AppendText(x + "\n");
        }), new object[] { sReadResult });
    }
}

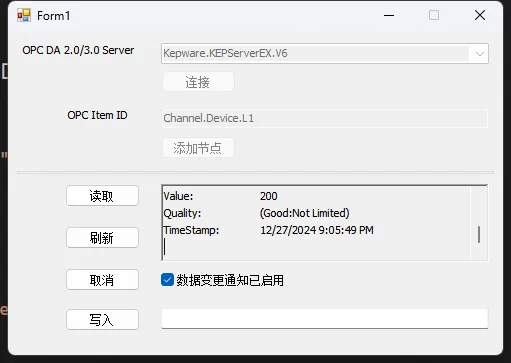

异步写入数据

C#
private void btnWrite_Click(object sender, EventArgs e)
{
    // 准备写入的数据
    TsCDaItemValue[] writeValues = new TsCDaItemValue[]
    {
        new TsCDaItemValue
        {
            ServerHandle = _arAddedItems[0].ServerHandle,
            Value = txtWrite.Text
        }
    };

    // 异步写入数据
    OpcItemResult[] res = _pOpcGroup.Write(
        writeValues,
        321,
        new TsCDaWriteCompleteEventHandler(WriteCompleteCallback),
        out _ITRequest
    );
}

// 写入完成回调方法
private void WriteCompleteCallback(object requestHandle, OpcItemResult[] e)
{
    try
    {
        MessageBox.Show("写入操作完成: " + e[0].Result.Description(), "写入");
    }
    catch (Exception ex)
    {
        MessageBox.Show(ex.Message, ex.Source, MessageBoxButtons.OK, MessageBoxIcon.Exclamation);
    }
}

完整例子

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppOpcDaAsync
{
    using System;
    using System.Threading;
    using OpcClientSdk;
    using OpcClientSdk.Da;

    namespace OpcDaAsyncDemo
    {
        public class OpcDaAsyncClient
        {
            // OPC服务器连接对象
            private TsCDaServer _server;

            // 数据订阅组
            private TsCDaSubscription _subscription;

            // 同步等待句柄
            private ManualResetEvent _connectionComplete = new ManualResetEvent(false);
            private ManualResetEvent _operationComplete = new ManualResetEvent(false);

            /// <summary>
            /// 连接OPC服务器
            /// </summary>
            /// <param name="serverUrl">服务器地址</param>
            public void Connect(string serverUrl)
            {
                try
                {
                    Console.WriteLine($"开始连接服务器: {serverUrl}");

                    // 创建服务器实例
                    _server = new TsCDaServer();

                    // 连接服务器
                    _server.Connect(serverUrl);

                    // 获取服务器状态
                    OpcServerStatus status = _server.GetServerStatus();
                    Console.WriteLine($"服务器状态: {status.ServerState}");
                    Console.WriteLine($"服务器版本: {status.VendorInfo}");

                    // 创建订阅组
                    CreateSubscription();

                    // 标记连接完成
                    _connectionComplete.Set();
                    Console.WriteLine("服务器连接成功");
                }
                catch (OpcResultException ex)
                {
                    Console.WriteLine($"连接失败 - OPC错误: {ex.Message}");
                    _connectionComplete.Set();
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"连接失败 - 未知错误: {ex.Message}");
                    _connectionComplete.Set();
                }
            }

            /// <summary>
            /// 创建订阅组
            /// </summary>
            private void CreateSubscription()
            {
                try
                {
                    // 配置订阅组状态
                    TsCDaSubscriptionState subscriptionState = new TsCDaSubscriptionState
                    {
                        Name = "AsyncSubscription",
                        Active = true,
                        UpdateRate = 500, // 500毫秒更新一次
                        Deadband = 0      // 不启用死区
                    };

                    // 创建订阅组
                    _subscription = (TsCDaSubscription)_server.CreateSubscription(subscriptionState);

                    // 注册事件处理器
                    _subscription.DataChangedEvent += OnDataChangedEvent;

                    // 添加监控项
                    AddItems();
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"创建订阅组失败: {ex.Message}");
                }
            }

            /// <summary>
            /// 添加监控项
            /// </summary>
            private void AddItems()
            {
                try
                {
                    // 定义要监控的项目
                    TsCDaItem[] items = new TsCDaItem[]
                    {
                    new TsCDaItem
                    {
                        ItemName = "Channel.Device.L1",
                        ClientHandle = 100,
                        Active = true,
                        ActiveSpecified = true
                    },
                    new TsCDaItem
                        {
                            ItemName = "Channel.Device.L2",
                            ClientHandle = 200,
                            Active = true,
                            ActiveSpecified = true
                        },
                        new TsCDaItem
                        {
                            ItemName = "Channel.Device.S1",
                            ClientHandle = 200,
                            Active = true,
                            ActiveSpecified = true
                        }
                    };


                    // 添加项目到订阅组
                    TsCDaItemResult[] results = _subscription.AddItems(items);

                    // 检查添加结果
                    foreach (var result in results)
                    {
                        if (result.Result.IsError())
                        {
                            Console.WriteLine($"添加项目失败: {result.ItemName} - {result.Result.Description()}");
                        }
                        else
                        {
                            Console.WriteLine($"成功添加项目: {result.ItemName}");
                        }
                    }
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"添加监控项失败: {ex.Message}");
                }
            }

            /// <summary>
            /// 异步读取数据
            /// </summary>
            public void AsyncRead()
            {
                try
                {
                    // 等待连接完成
                    _connectionComplete.WaitOne();

                    // 准备读取的项目
                    TsCDaItem[] readItems = new TsCDaItem[]
                    {
                        new TsCDaItem
                        {
                            ItemName = "Channel.Device.L1",
                            ClientHandle = 300,
                            Active = true,  // 设置数据项为活动状态
                            ActiveSpecified = true, // 启用 Active 设置
                        }
                    };

                    // 创建请求句柄
                    object requestHandle = Guid.NewGuid().ToString();

                    // 正确的异步读取调用
                    IOpcRequest request = null;
                    var resultRequest = _subscription.Read(
                        readItems,               // 多个要读取的项目
                        requestHandle,           // 请求句柄
                        new TsCDaReadCompleteEventHandler(OnReadCompleteEvent),
                        out request              // 输出请求对象
                    );

                    // 检查读取结果
                    if (resultRequest != null)
                    {

                        return;
                    }

                    Console.WriteLine("异步读取已发起");
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"异步读取失败: {ex.Message}");
                }
            }

            /// <summary>
            /// 异步写入数据
            /// </summary>
            public void AsyncWrite()
            {
                try
                {
                    // 等待连接完成
                    _connectionComplete.WaitOne();

                    // 准备写入的数据
                    TsCDaItemValue[] writeItems = new TsCDaItemValue[]
                    {
                    new TsCDaItemValue
                    {
                        ItemName = "Channel.Device.L1",
                        Value = 42,
                        ClientHandle = 500
                    }
                    };

                    // 发起异步写入
                    _subscription.Write(
                        writeItems,
                        600,
                        new TsCDaWriteCompleteEventHandler(OnWriteCompleteEvent),
                        out IOpcRequest request
                    );

                    Console.WriteLine("异步写入已发起");
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"异步写入失败: {ex.Message}");
                }
            }

            /// <summary>
            /// 断开连接
            /// </summary>
            public void Disconnect()
            {
                try
                {
                    if (_subscription != null)
                    {
                        _subscription.Dispose();
                    }

                    if (_server != null)
                    {
                        _server.Disconnect();
                        _server.Dispose();
                    }

                    Console.WriteLine("已成功断开连接");
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"断开连接时发生错误: {ex.Message}");
                }
            }

            /// <summary>
            /// 读取完成事件处理
            /// </summary>
            /// <param name="clientHandle">客户端句柄</param>
            /// <param name="results">读取结果数组</param>
            public void OnReadCompleteEvent(
                object clientHandle,
                TsCDaItemValueResult[] results)
            {
                try
                {
                    Console.WriteLine($"Read Operation Completed. Client Handle: {clientHandle}");

                    foreach (var result in results)
                    {
                        Console.WriteLine("-----------------------------------");
                        Console.WriteLine($"Item Name: {result.ItemName}");

                        // 检查读取是否成功
                        if (result.Result.IsSuccess())
                        {
                            // 处理数组类型
                            if (result.Value.GetType().IsArray)
                            {
                                Console.WriteLine("Value Type: Array");
                                if (result.Value is Array arrayValue)
                                {
                                    Console.WriteLine($"Array Length: {arrayValue.Length}");
                                    for (int i = 0; i < arrayValue.Length; i++)
                                    {
                                        Console.WriteLine($"  Index {i}: {arrayValue.GetValue(i)}");
                                    }
                                }
                            }
                            else
                            {
                                Console.WriteLine($"Value: {result.Value}");
                                Console.WriteLine($"Value Type: {result.Value.GetType().Name}");
                            }

                            // 时间戳和质量信息
                            Console.WriteLine($"Timestamp: {result.Timestamp:yyyy-MM-dd HH:mm:ss.fff}");
                            Console.WriteLine($"Quality: {result.Quality}");

                            // 质量码分析
                            AnalyzeQuality(result.Quality);
                        }
                        else
                        {
                            Console.WriteLine($"Read Failed for Item: {result.ItemName}");
                            Console.WriteLine($"Error: {result.Result.Description()}");
                        }
                    }
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"Error in Read Complete Event: {ex.Message}");
                    Console.WriteLine($"Stack Trace: {ex.StackTrace}");
                }
                finally
                {
                    Console.WriteLine("Read Operation Event Processing Completed");
                }
            }


            /// <summary>
            /// 写入完成事件处理
            /// </summary>
            /// <param name="clientHandle">客户端句柄</param>
            /// <param name="results">写入结果数组</param>
            public void OnWriteCompleteEvent(
                object clientHandle,
                OpcItemResult[] results)
            {
                try
                {
                    Console.WriteLine($"Write Operation Completed. Client Handle: {clientHandle}");

                    foreach (var result in results)
                    {
                        Console.WriteLine("-----------------------------------");
                        Console.WriteLine($"Item Name: {result.ItemName}");

                        // 检查写入是否成功
                        if (result.Result.IsSuccess())
                        {
                            Console.WriteLine("Write Operation Successful");
                        }
                        else
                        {
                            Console.WriteLine($"Write Failed for Item: {result.ItemName}");
                            Console.WriteLine($"Error: {result.Result.Description()}");
                        }
                    }
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"Error in Write Complete Event: {ex.Message}");
                    Console.WriteLine($"Stack Trace: {ex.StackTrace}");
                }
                finally
                {
                    Console.WriteLine("Write Operation Event Processing Completed");
                }
            }

            /// <summary>
            /// 数据变更事件处理
            /// </summary>
            /// <param name="subscriptionHandle">订阅句柄</param>
            /// <param name="requestHandle">请求句柄</param>
            /// <param name="values">变更的数据值数组</param>
            public void OnDataChangedEvent(
                object subscriptionHandle,
                object requestHandle,
                TsCDaItemValueResult[] values)
            {
                try
                {
                    // 输出请求句柄信息
                    if (requestHandle != null)
                    {
                        Console.WriteLine($"DataChange for RequestHandle: {requestHandle}");
                    }

                    // 处理数据变更逻辑
                    foreach (var value in values)
                    {
                        // 检查操作是否成功
                        if (value.Result.IsSuccess())
                        {
                            // 处理数组类型
                            if (value.Value.GetType().IsArray)
                            {
                                Console.WriteLine($"Array Item: {value.ItemName}");
                                if (value.Value is Array arrayValue)
                                {
                                    for (int i = 0; i < arrayValue.Length; i++)
                                    {
                                        Console.WriteLine($"  Index {i}: {arrayValue.GetValue(i)}");
                                    }
                                }
                            }
                            else
                            {
                                // 处理单一值类型
                                Console.WriteLine($"Item: {value.ItemName}");
                                Console.WriteLine($"Value: {value.Value}");
                            }

                            // 详细的质量和时间戳信息
                            Console.WriteLine($"Timestamp: {value.Timestamp:yyyy-MM-dd HH:mm:ss.fff}");
                            Console.WriteLine($"Quality: {value.Quality}");

                            // 质量码详细分析
                            AnalyzeQuality(value.Quality);
                        }
                        else
                        {
                            // 处理失败的数据项
                            Console.WriteLine($"Item {value.ItemName} read failed.");
                            Console.WriteLine($"Error: {value.Result.Description()}");
                        }
                    }
                }
                catch (Exception ex)
                {
                    // 异常处理
                    Console.WriteLine($"Error in DataChange Event: {ex.Message}");
                    Console.WriteLine($"Stack Trace: {ex.StackTrace}");
                }
                finally
                {
                    Console.WriteLine("Data Change Event Processing Completed");
                }
            }

            /// <summary>
            /// 质量码详细分析方法
            /// </summary>
            /// <param name="quality">OPC质量码</param>
            private void AnalyzeQuality(TsCDaQuality quality)
            {
                Console.WriteLine("Quality Details:");
                Console.WriteLine($"  Quality Bits: {quality.QualityBits}");
                Console.WriteLine($"  Limit Bits: {quality.LimitBits}");
                Console.WriteLine($"  Vendor Bits: {quality.VendorBits}");

                // 质量码详细判断
                switch (quality.QualityBits)
                {
                    case TsDaQualityBits.Good:
                        Console.WriteLine("  Status: Excellent Data Quality");
                        break;
                    case TsDaQualityBits.GoodLocalOverride:
                        Console.WriteLine("  Status: Good Local Override");
                        break;
                    case TsDaQualityBits.Bad:
                        Console.WriteLine("  Status: Bad Quality - Failure");
                        break;
                    case TsDaQualityBits.Uncertain:
                        Console.WriteLine("  Status: Uncertain Quality");
                        break;
                    default:
                        Console.WriteLine("  Status: Unknown Quality");
                        break;
                }
            }

        }
    }
}

注意事项

1. 异步操作需要使用回调方法处理结果
2. 涉及UI更新时需要使用Invoke确保线程安全
3. 错误处理很重要，要捕获并适当处理可能的异常

总结

本文详细演示了使用OpcClientSdk进行OPC DA异步读写的完整流程，包括服务器发现、连接、数据项订阅、异步读取和写入。通过异步机制，可以有效提高工业通信系统的响应性和性能。

希望这篇文章对您有帮助！如有任何疑问，欢迎随时询问。
